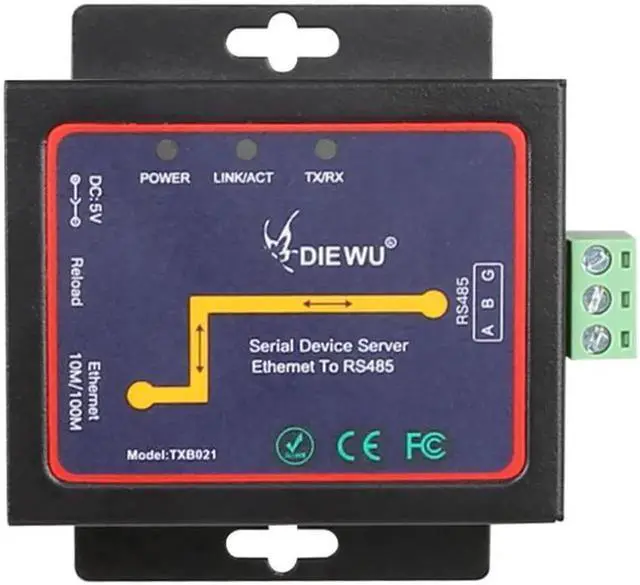

JAENFONG Ethernet RJ45 to RS485 Converter Industrial Serial Device Server Ethernet adapter TCP/RTU/UDP Converter
- Ethernet RJ45 to RS485 Converter Industrial Serial Device Server Ethernet adapter TCP/RTU/UDP Converter
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Ethernet RJ45 to RS485 Industrial Serial Device Server Ethernet adapter TCP/RTU/UDP Converter
Product specification
Model number
TXB021
Chipset
IP210
Port number
1 port 10/100M Auto MDI-MDIX RJ45,1port RS485
Standard
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
Network media
10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data rate
10/100M
Forwarding rate
10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator
Link/Act, Power, TX/RX
Baud rate
300bps~230400bps
Operation modes
TCP Server, TCP Client, UDP
Dimension
78*72*23mm
Power Input
DC5V
Power Consumption
Max1.5W
Environment
Operating Temperature: -10 ?-55 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(non-condensing)
Other function
Build load default key
