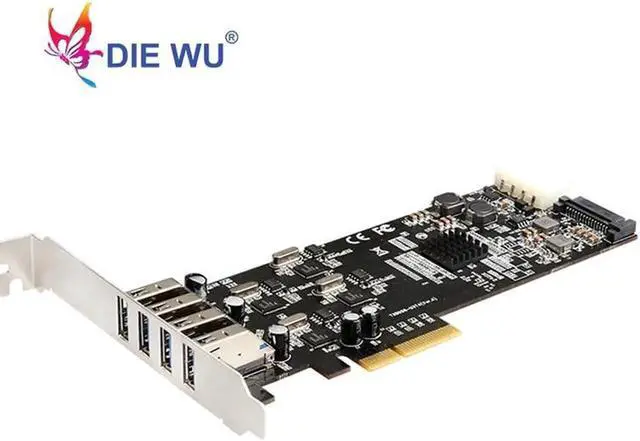

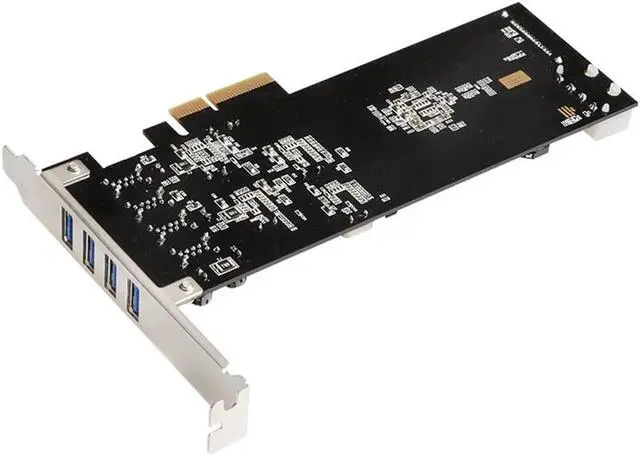

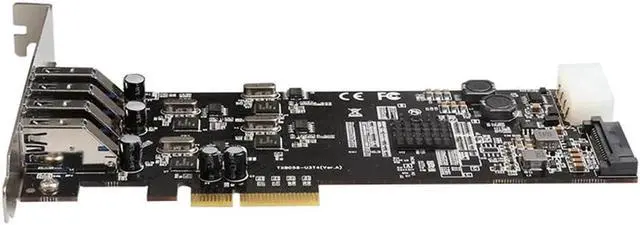

JAENFONG Supper speed 20G PCIe 4X to 4 channel USB 3.0 Expansion card PCI Express Riser Card Controller Adaptor Converter

Supper speed 20G PCIe 4X to 4 channel USB 3.0 Expansion card PCI Express Riser Card Controller Adaptor Converter

Model: TXB058

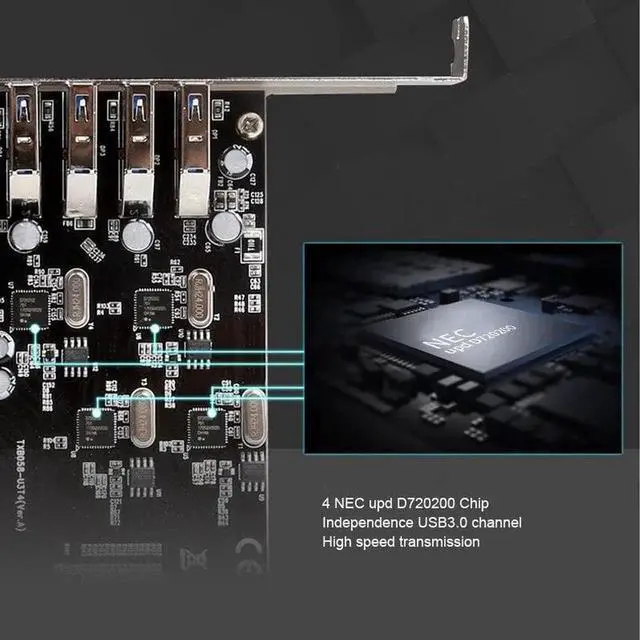

Chipset:NEC/upd720202

Interface: PCIE X4

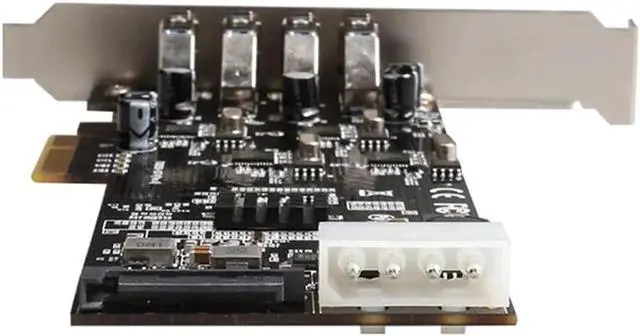

Port number: 4*USB3.0, 4pin Power connector, SATA 15pin interface

Model number

TXB058

Chipset

NEC/uPD720202

Port number

4* USB3.0

Interface

PCI Express 1x slot

Dimension

166.5*68.5mm

Support OS

Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server® 2012, 2008 R2, 2003(32/64)

Mac OS® 10.x (Intel based, tested up to 10.9)

Linux

Environment

Operating Temperature: 0 ?-60 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -20?-80?

Relative Humidity: 5%-90%(non-condensing)

Features

USB3.0 Specification compliant, backward compatible with USB2.0 & USB1.1

4 external USB3.0 ports, 10x faster than USB2.0

Supports PCI-Express Rev. 1.0a

USB3.0 data transfer rate up to 5Gbps

Plug and play installation
