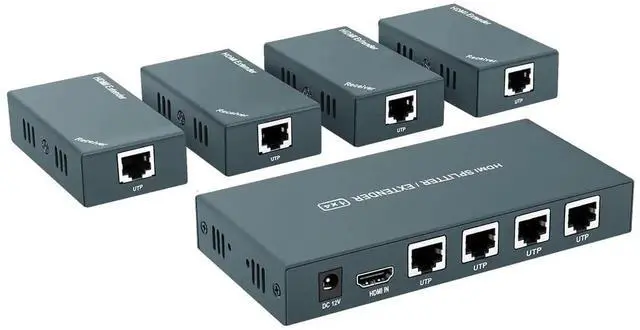

HDMI Extender Splitter 1x4, 1080P@60Hz, Extending 165ft (50m) Length Transmission Over CAT5e/CAT6/CAT7 Cable, 4 Channel Transmission, 1 Power Adapter

1.Introduction

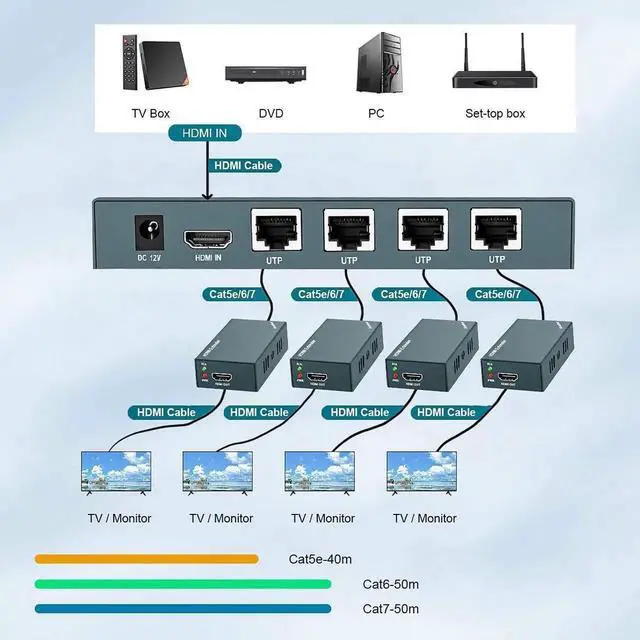

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, transform one channel input to 4 channel output, it supports high resolution up to 1080p . The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

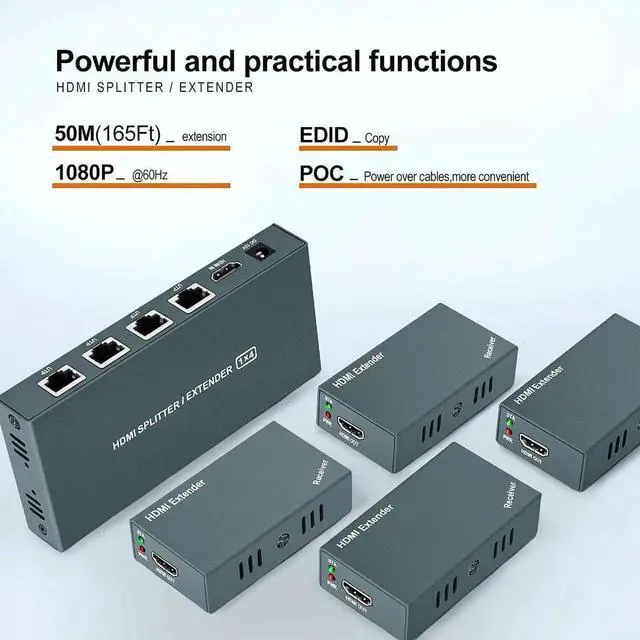

2.Features

1 Transmits 1 HDMI video and audio signals up to 50M over a single CAT6 cable, (Cat5e---45m);

2 Support video resolution up to 1920*1080@60Hz, 3D signal;

3 Transform one channel HDMI input to 4 channel Cat6 signal output;

4 Support EDID copy function, can match many kinds of display device;

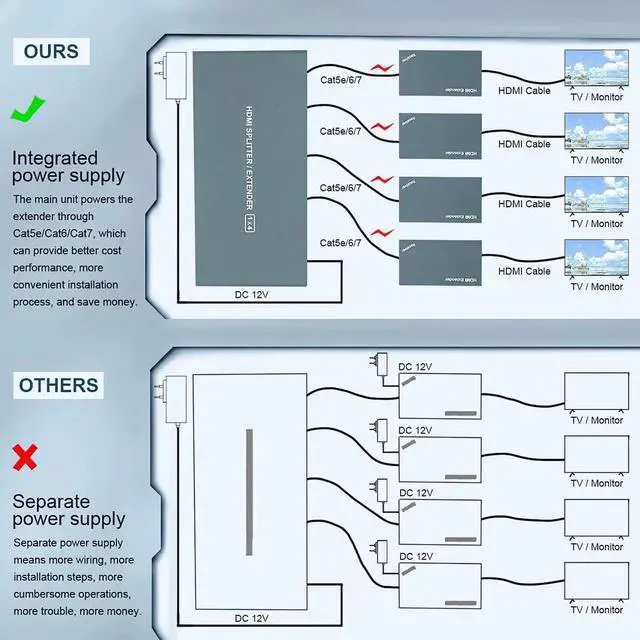

5 Support POC function, only one power adapter be used can support the whole kit operation;

6 Compliance with HDMI 1.3 standard;

7 Built-in automatic adjustment system, make the image smooth, clear and stable;

8 Built-in ESD protection system;

9 Simple to install, plug and play;

3.Specifications

(1) Maximum pixel clock: 165MHz.

(2) Maximum data rate: 6.75Gbps.

(3) Interface: RJ45.

(4) Resolution: Max 1920X1080@60Hz

(5) Connector: HDMI-A.

(6) Impedance: 100.

(7) Transmission distance: CAT6---50M

4.Other

(1) Power supply : DC 5V

(2) Power dissipation: MAX 8W

(3) Temperature Operating: -5 ~ +70

(4) Humidity Operating: 5% ~ 90%

(5) Dimension TX:150*71*23mm/RX:81*45*23

(6) The warranty: 1 year free warranty

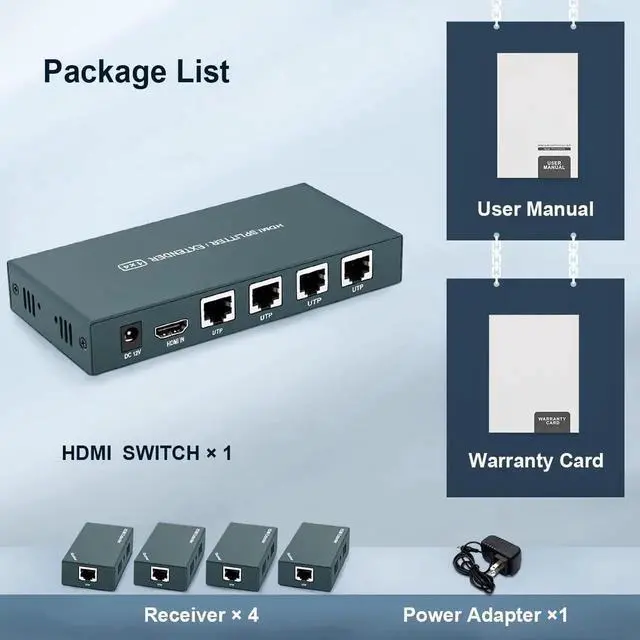

5.Packing List

(1) 1x HDMI Transmitter

(2) 4x HDMI Receivers

(3) 1x Power Supply

(4) 1x User Manual

Additional Features

1. [EDID COPY FUNCTION] This product has a very powerful EDID copy function, which makes it be able to identify the display device parameters and match it, enhance compatibility with the device, and adapt to various complex application environments.
