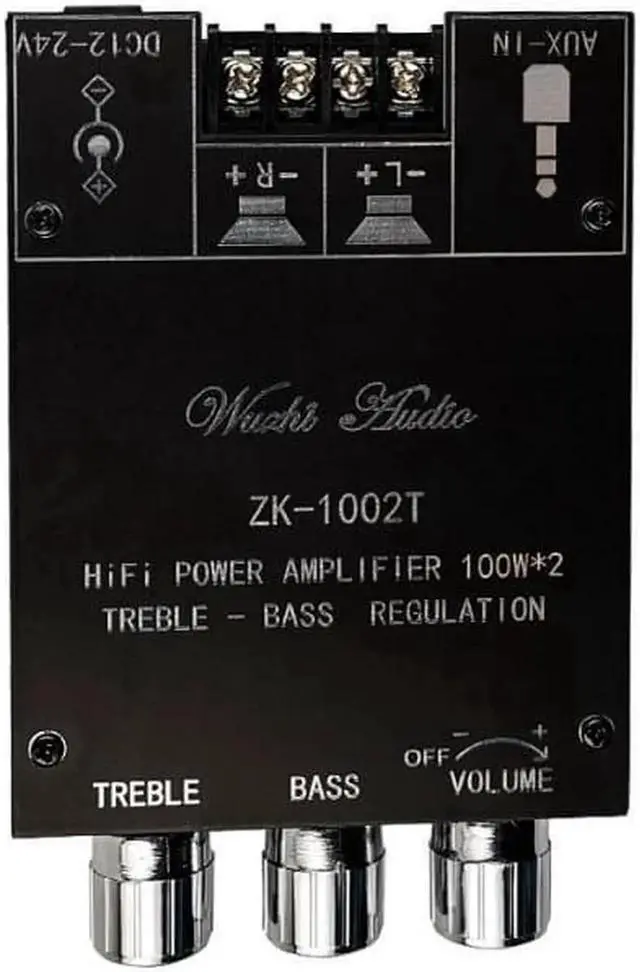

ZK-1002T 100W*2 High and Bass Adjustment bluetooth 5.0 Audio Power Amplifier Board Module Subwoofer Dual Channel Stereo

Feature: Product

Name: 100W*2 Bluetooth audio amplifier module with

ToneProduct Model: ZK-1002TBluetooth

Version: 5.0 (no shielding, 10

meters)SNR: >90 dBAudio

Input: AUX +

BluetoothChannel: 2.0 (stereo)

Chip Solution: TPA3116D2 (with AM interference suppression)

Power Range: DC12-24V / 5A above (high power recommended highvoltage)

Adapter Speaker: 20W-200W, 4~8QOutput

Power: 20W*2 @12V, 8Q 35W*2 @12V, 4Q35W*2 @ 19V, 80 60W*2 @19V, 4Q50W*2 @24V, 8Q 100W*2 @24V, 4QProtection

Mechanism: overvoltage, undervoltage, overheating, DCdetection, short circuit protectionProduct

Dimensions: 110mm*70mm*21mm / 4.33 in* 2.76 in* 0.83 inPackage

Weight: 161

g / 0.355 lbPS: In the audio input is enough, the supply voltage/current is enough, there will be enough output power! The higher the supply voltage, the greater the output power. The smaller the im-pedance of the speaker, the greater the output power! Please ensure that the power of the amplifier.

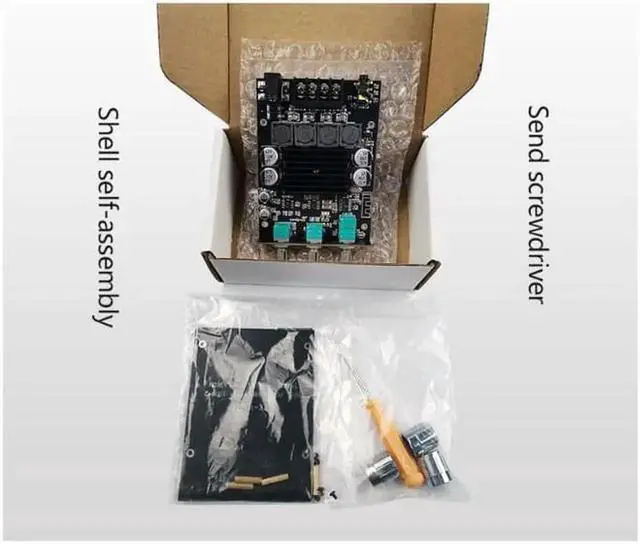

Package includes: 1 x 100W*2 Bluetooth audio amplifier module with Tone
