Industrial USB to RS485 Converter FT232RL

Demo Board Type: ARM

Certification: CE

Origin: CN (Origin)

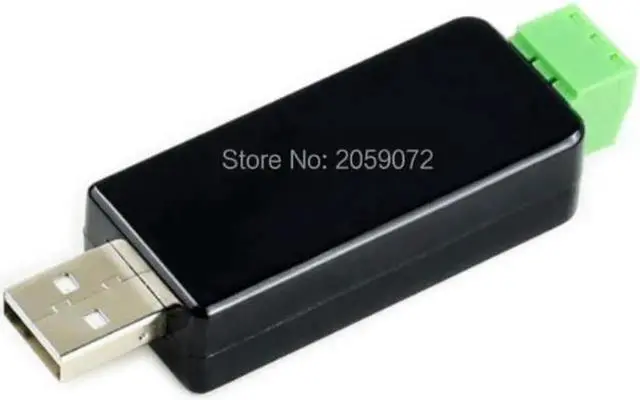

Industrial USB to RS485 Converter, FT232RL

Overview

This is an industrial USB to RS485 converter with FT232RL inside. It features embedded protection circuits such as lightning-proof, resettable fuse, ESD protection, and TVS diode, etc. It's pretty small in size.

The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features

USB to RS485 communication

Adopt FT232RL, fast communicating, stable and reliable, better compatibility

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic

Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance

3 LEDs for indicating the power and transceiver status

Specifications

Product type: industrial converter

Baudrate: 300-921600bps

Host port: USB

Device port: RS485

USB:

Operating voltage: 5V

Connector: USB-A

Protection: 200mA self-recovery fuse, ESD protection

Transmission distance: about 5m

RS485:

Connector: screw terminal

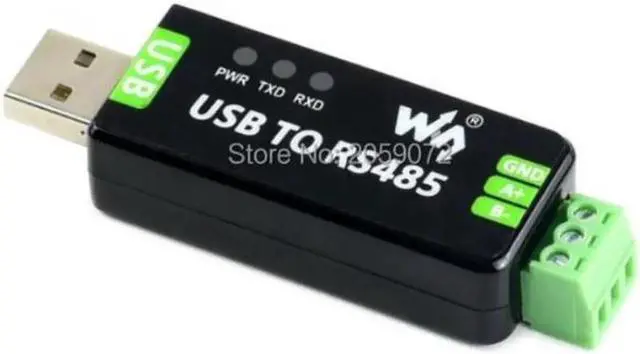

Pins: A+, B-, GND

Direction control: hardware automatic control

Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)

Transmission distance: about 1200m (low rate)

Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

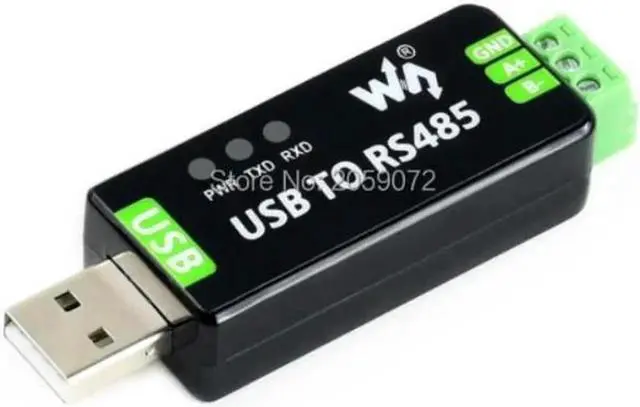

LED indicators:

PWR: red power indicator, light up when there is USB connection and voltage is detected

TXD: red TX indicator, light up when the USB port sends data

RXD: red RX indicator, light up when the device ports send data back

Operating environment:

Temperature: -15 ~ 70

Humidity: 5%RH ~ 95%RH

Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

Dimensions

Package Contains

USB TO RS485 x1

USB-A male to female cable x1

Screwdriver x1
