HDMI Compatible/MHL Digital Interface Audio I2S/DSD/Optical/Coaxial HDM-Compatible I To I2S IIS Support Coaxial DOP Board

Certification: NONE

Origin: CN (Origin)

Model Number: HDMI Compatible/MHL Digital Interface Audio I2S/DSD/Optical/Coaxial-1

HDMI Compatible/MHL Digital Interface Audio I2S/DSD/Optical/Coaxial HDM-Compatible I To I2S IIS Support Coaxial DOP Board

Version Introduction:

Support coaxial DOP board. When DSD input, I2S port outputs DSD, coaxial output DOP64, it is used with a decoder supporting DOP.

Description:

It is used to extract digital audio signals from HDMI signals. The output method can use I2S/optical/coaxial to connect to a decoder and improve sound quality. HDMI also supports MHL dual-mode input, which means that it can also be connected to mobile phones with MHL output, supports 4K, 3D, CEC functions, and does not require external power supply when

connecting to some devices. If your player's power supply is insufficient, an external power supply (DC 5V) can be used.

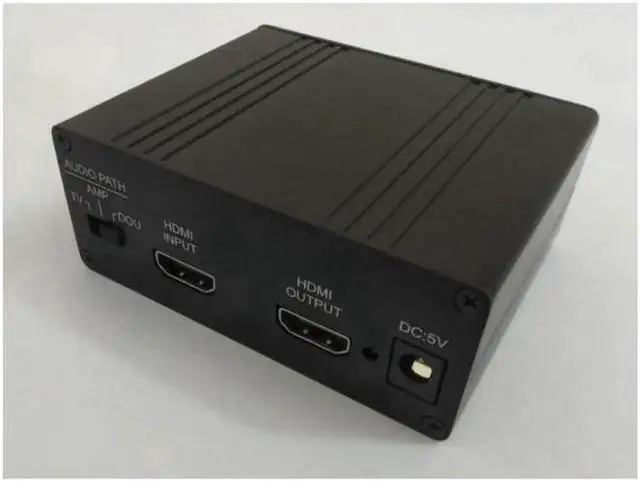

Interface Introduction:

- TV AMP DOU: Select audio processing mode

- HDMI INPUT: Connect to HDMI OUT of players, set-top boxes, game consoles, etc.

- DC5V: External DC 5V power supply. Use HDMI source power supply when not connected.

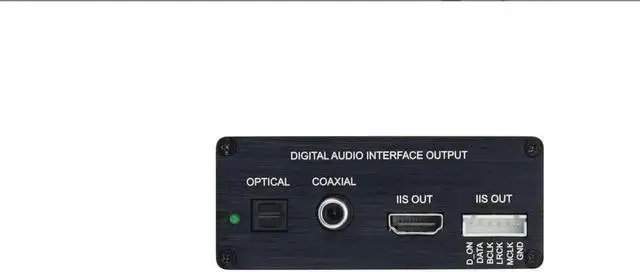

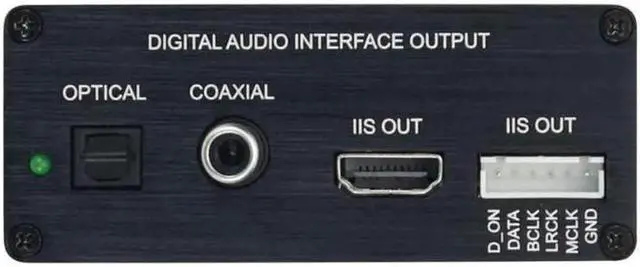

- I2S output: Connect to a high-end decoder with I2S input (for example, for PS AUDIO)

- Coaxial output: Connect to decoder or power amplifier for decoding (for DTS and Dolby)

- Optical output: Connect to decoder or power amplifier for decoding (for DTS and Dolby)

Package Included:

- 1 x Digital Interface

Note:

- It is assembled and ready to use.
