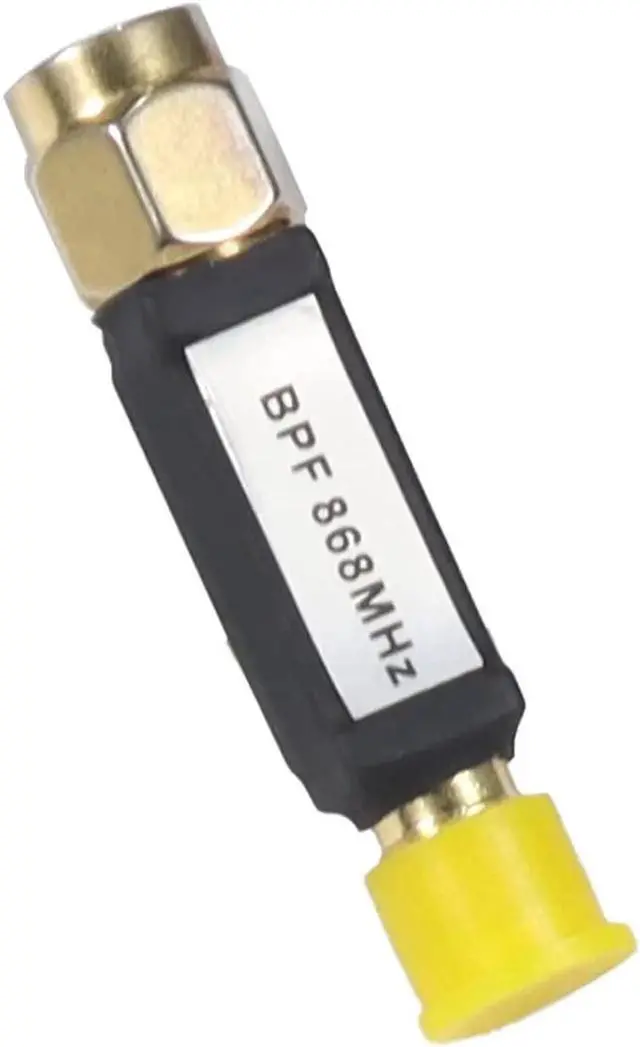

868mhz Bandpass SMA/Saw Filter BPF Anti-Interference New Denoise RFID Receiver for Block and Filter Clutter Frequencies Antenna Miner (868MHz SMA)

* Premium Design * -- This 868MHz Band Pass Filter has the characteristics of small size, light weight, low insertion loss, high resistance band rejection and high image attenuation, high power tolerance and low cost.

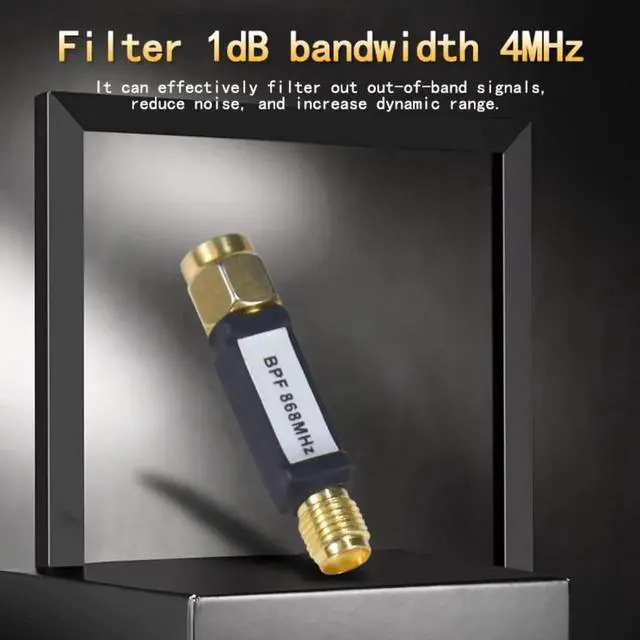

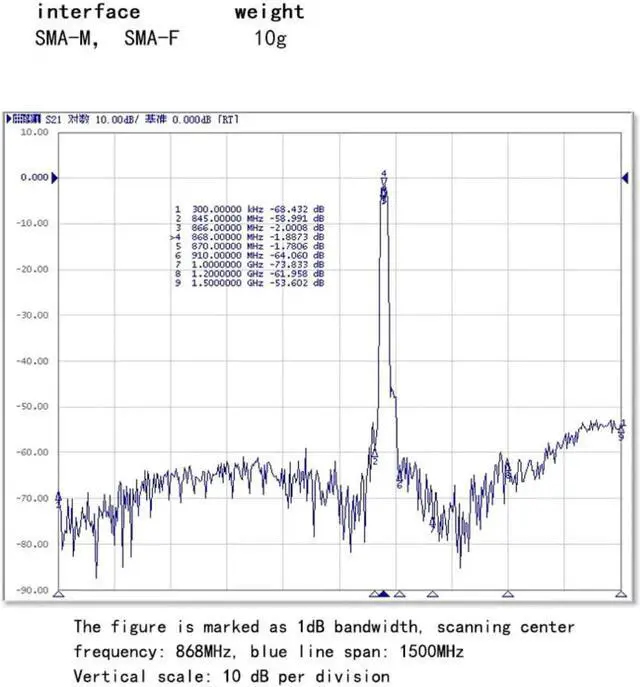

* Perfect Function * -- This SMA interface band-Pass filter has a 1dB bandwidth of 4MHz and a steep cutoff characteristic.Optimized for 868MHz remote control and RFID receiver,it can effectively filter out-of-band signals, reduce noise and increase dynamic range.Bandpass filters in receivers help pass signals within a selected frequency range and block unwanted frequencies.

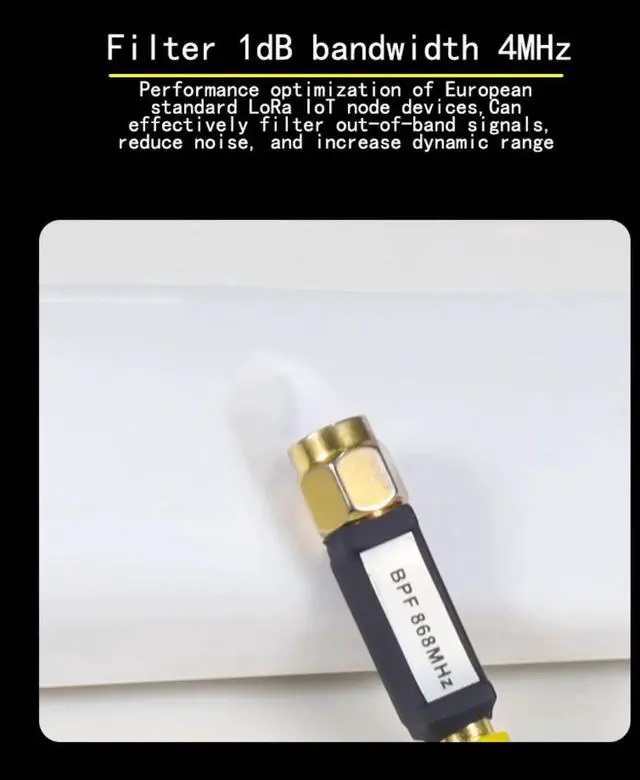

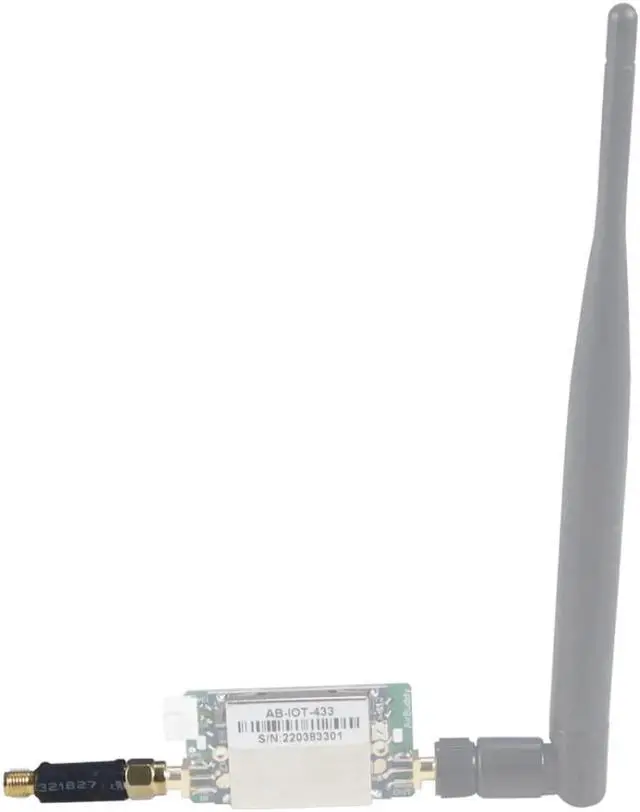

* Applicable Fields * -- This impedance filter receiver module support European standard Lora IOT mode devices, and RF applications that require tuned circuits.

* High Efficiency * -- Impedance 50?,bandwidth 866-870MHz, insertion Loss <3.5dB,maximum withstand power not more than 20mW.

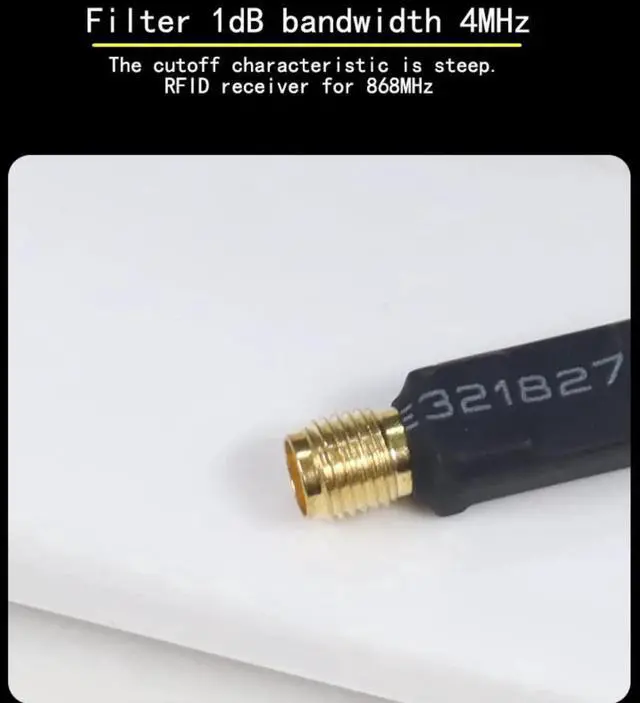

* Strong Stability * -- Gold-plated SMA connectors on both sides (one side is sma female connector with one male outer thread hole; the other side is sma male connector with one female inner thread pin), double-sided circuit board design, high mechanical strength and stable electrical performance.
