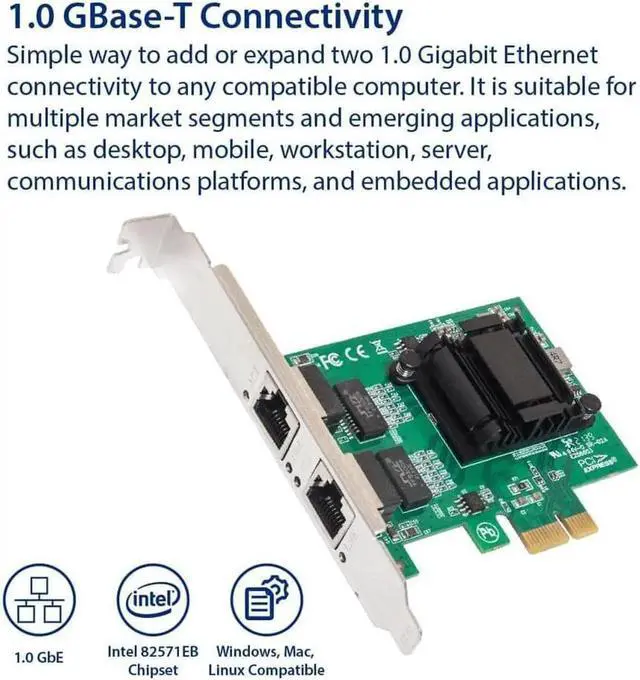

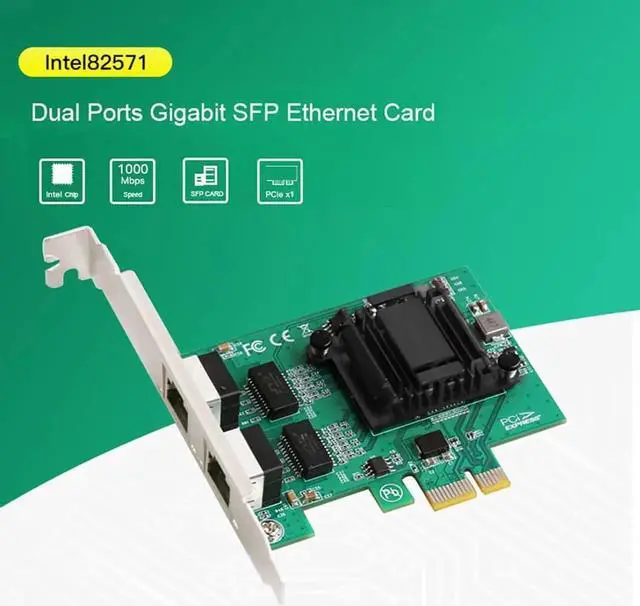

2-Port Gigabit PCIe SFP Network Card 1000M Dual Ports PCI Express Ethernet Adapter with Intel 82571EB LAN NIC Card for Support PXE for Windows/Windows Server/Linux with Low Profile

Product Description

The PCIe Gigabit Network Card adds two 10/100/1000 Mbps compatible RJ45 Ethernet ports to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3 /u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging, this Gigabit NIC Adapter offers effective network performance.

Features

Two 10/100/1000 Mbps compatible RJ45 Ethernet ports

Link and Activity LED indicators

Fully Compliant with IEEE 802.1 p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3 ac, IEEE 802.3 az, IEEE 802.3 z, IEEE 802.3 ad standards

Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x

Fully Duplex Flow Control

Full and half duplex support

PXE network boot support

Jumbo frame supports up to 9Kbytes

Complies with Microsoft and Linux platforms

Supports 10/100/1000Mbps Nway Auto-Negotiation

Supports 10/100Mbps full and half duplex, 1000Mbps, full duplex

Supports Full Duplex Flow Control (IEEE 802.3 x)

Supports Auto-MDI/MDIX

supporting remote boot

Supports ACPI, PCI power management

Contain two large independent receive and transmit

Network Media

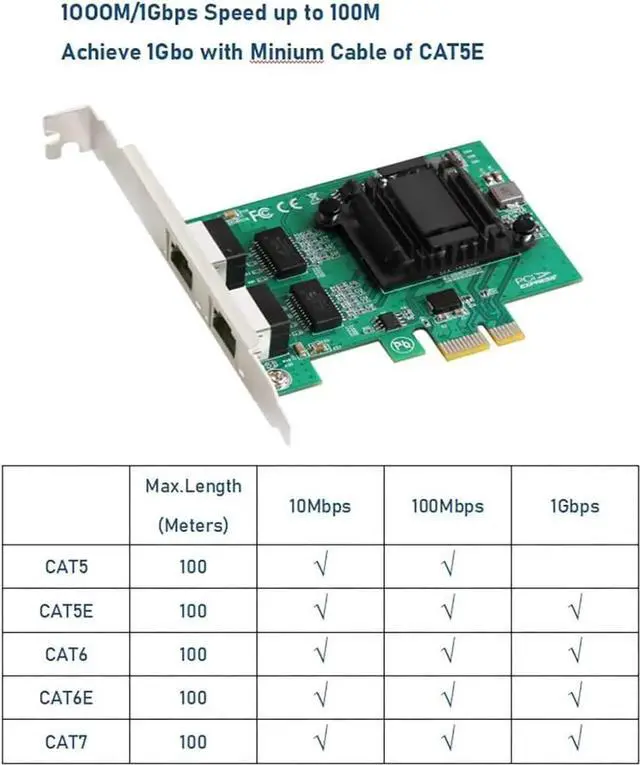

10Base-T: Category 3 or higher shielded/unshielded twisted pair (MAX 100m)

100Base-TX: Category 5 shielded/unshielded twisted pair (MAX 100m)

1000Base-T: Category 6 shielded/unshielded twisted pair cable (Category 6 cable / Category 7 cable recommended) (MAX 100m)

Feature full duplex mode, twice the speed of network connections

Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2)

Operating System

Windows 7, 8. x, 10, 11, Windows Server 2008 R2, 2012, 2016, 2019, Linux 2.6. x to 5. x

Packing list

1xPCIE 1G LAN Card

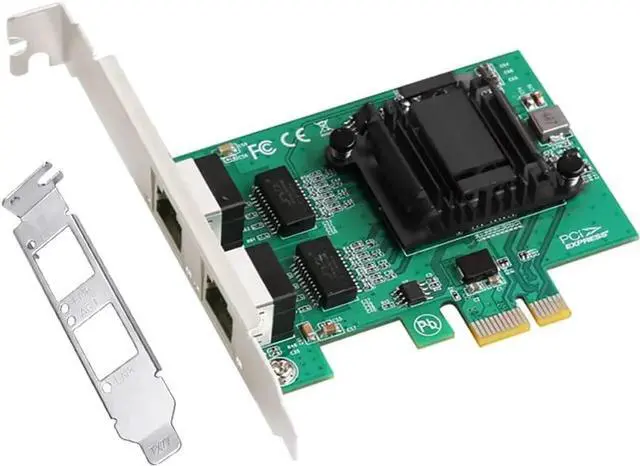

1x Low profile Bracket
