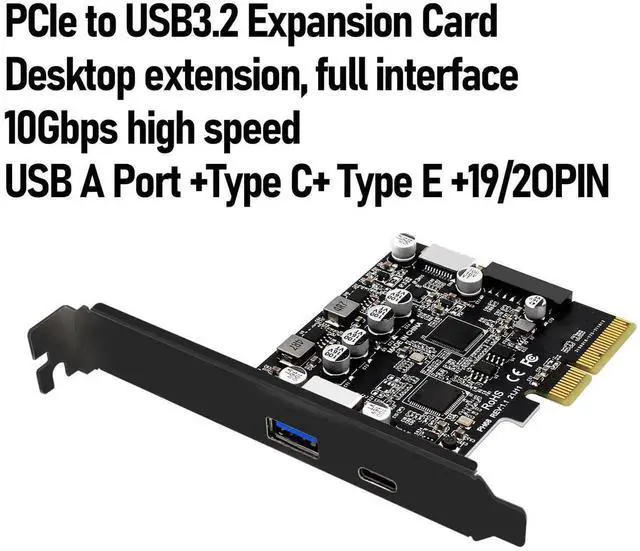

10Gbps PCIE 3.0 to USB 3.2 Expansion Card, Type C USB3.2 Gen2 Front Expansion Card Adapter to Type E and USB 19/20 Pin

1.

Enhanced Safety: Efficient and stable PWM synchronous chip, protected by port guard chip. Each port equipped with 2.2A guard chip to prevent damage from external device malfunction or short circuit, ensuring user safety and peace of mind.

2.

High Speed: Main control power chip determines stability, using ASM3142 and VL822 main control chip for USB 3.2 GEN2 10Gbps, with PCIE bandwidth up to 16Gts, providing 10Gbps speed for each port.

3.

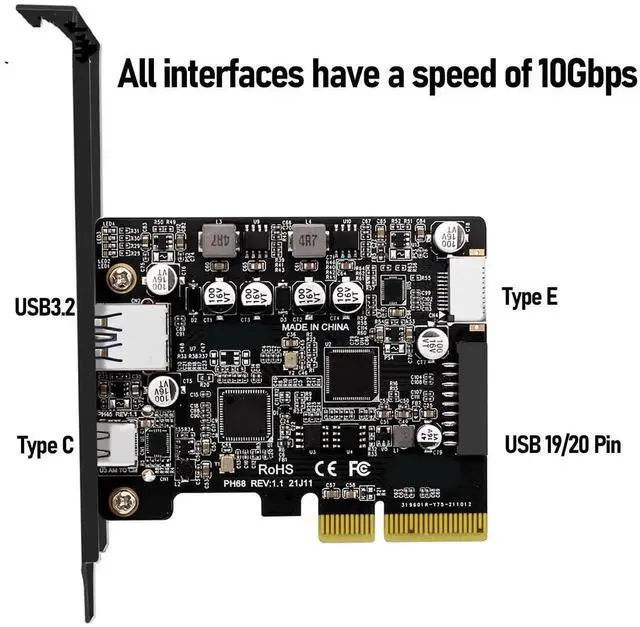

Multiple Interface: 10Gbps high speed, PCIEX4 expansion card with full interface USB 3.2 expansion, featuring USB3A port, Type C, front Type E, 19 20PIN, the expansion card is ideal for desktop computer expansion to meet all your needs.

4.

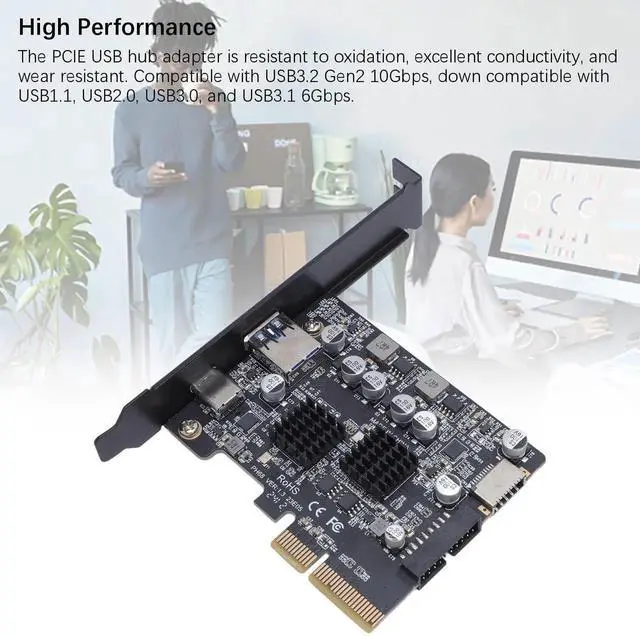

High Performance: Compatible with USB 3.2 Gen2 10Gbps, down compatible with USB 1.1, USB 2.0, USB 3.0, and USB 3.1 6Gbps.

5.

Wide Compatibility: Compatible with X8 X16, meeting PCI Express 3.0 specifications and XHC1 protocol, for Wins Vista 7 (driver required), for Wins 8 10 systems have builtin drivers, providing 10Gbps speed.

Spec:

Item Type: PCIe 3.0 to USB 3.2 Expansion Card

Material: PCB

Input Interface: PCI-EX4 (x 2) compatible with X8/X16

Compatible: USB 3.2 Gen2 10Gbps, downwards compatible with USB 1.1, USB 2.0, USB 3.0, USB 3.1 6Gbps

Conforms to: PCI Express 3.0 basic specification

Conforms to: Extended Host Controller Interface (XHC1) Specification Revision 1.0

Compatible System: For Wins /Vista/7 (driver installation required), For Wins 8/10 plug and play

Speed: 10Gbps

PackageList:

1 x PCIe 3.0 to USB 3.2 Adapter

1 x Bracket

1 x Screw
