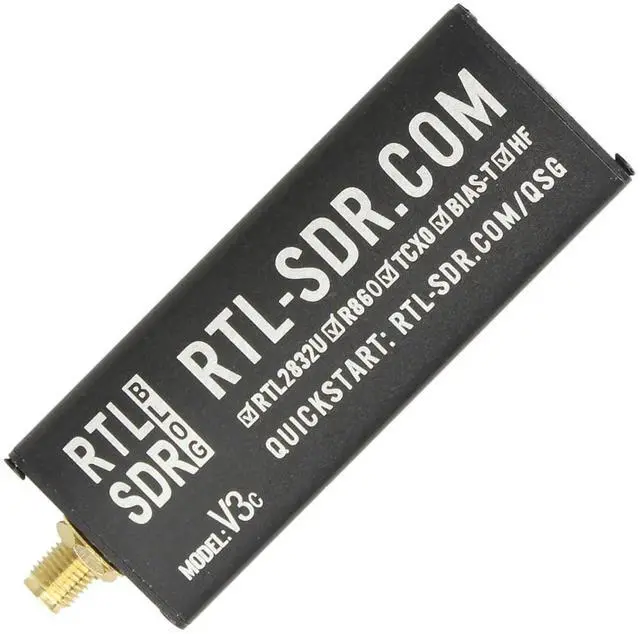

RTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO SMA Software Defined Radio (Dongle Only) (Black) (USB-C)

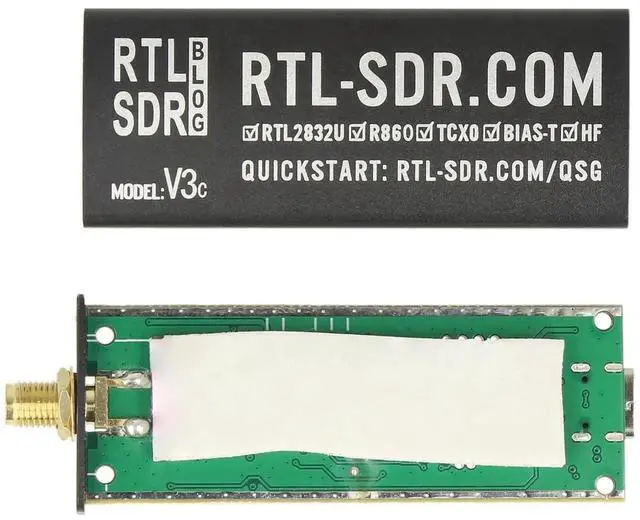

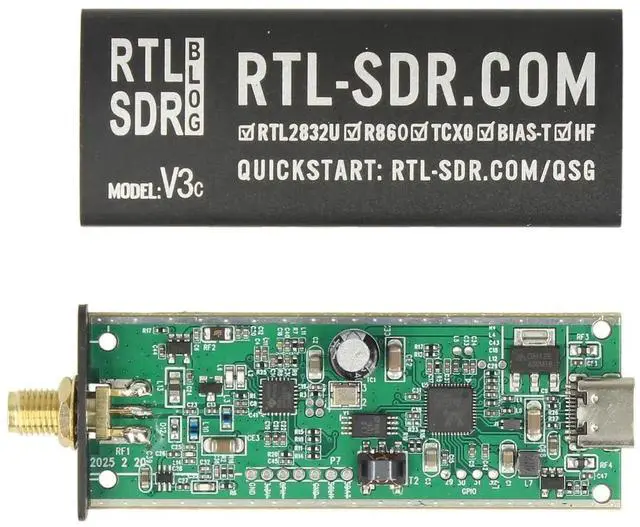

This is an RTL-SDR Blog V3 software defined radio receiver with RTL2832U ADC chip, R860 tuner, 1PPM TCXO, SMA F connector, USB-C port, and aluminium case with passive cooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz ( 2.4 MHz stable) of bandwidth. (HF works in direct sampling mode with reduced performance). Works with free software like SDR#, HDSDR, SDR-Radio, GQRX or SDR Touch on Android. Works on Windows, OSX, Linux, Android and computers like the Raspberry Pi.

This is the USB-C plug variant. This model has several improvements over other brands. It uses the improved R820T2 tuner, a 1PPM TCXO, better components, a redesigned lower noise PCB, cooling improvements, extra ESD protection and an SMA F connector. It also has a software activatable bias-tee for powering LNA's and active antennas.

Please follow the quickstart guide linked in the included the manual for installation of the drivers and free software. For enabling HF reception below 24 MHz please see the V3 features guide and please feel free to contact us via Amazon messaging for technical support - we're happy to help.
