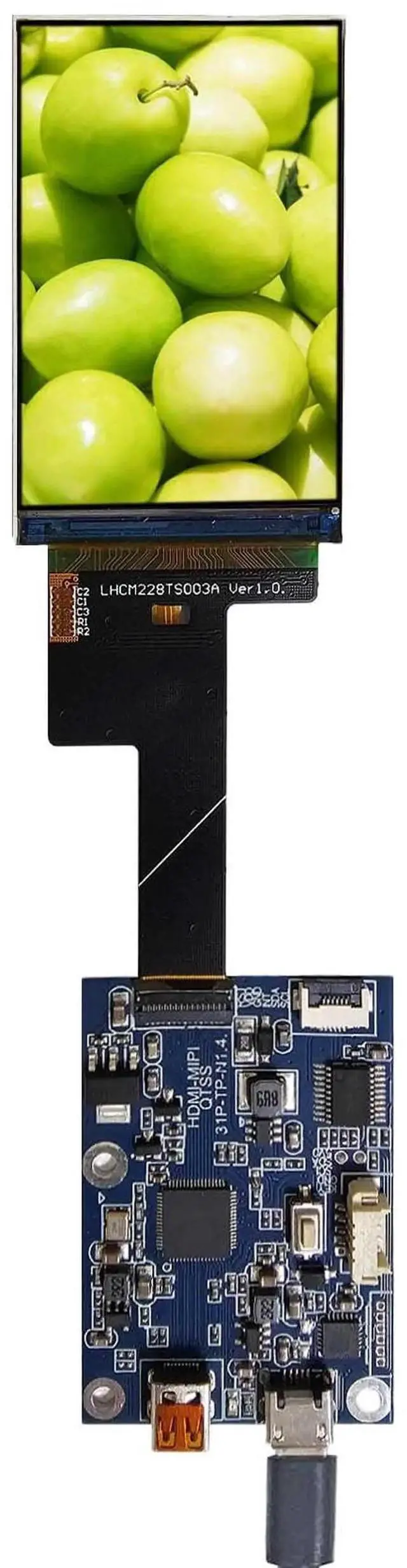

FanyiTek 2.28" 2.28 inch 368x552 600nit Mini IPS MIPI LCD Screen and Micro USB Control Board 31 pins
- Square MIPI screenIPS full viewing angle,Great resolution 368x552 ,outline size:36.14×55.8×2.4 (H×V×D)mm,display area:32.02× 48.02(H×V)mm,600nit high brightness ,WLED backlight ,input voltage: 1.8/3.3 V .
- Micro controller boardVideo input :port ,board size: 50mm x 45mm x 5mm,pls use it in insulated environment.
- Input Power5Vdc More than 0.5A,Pls prepare it seperately .

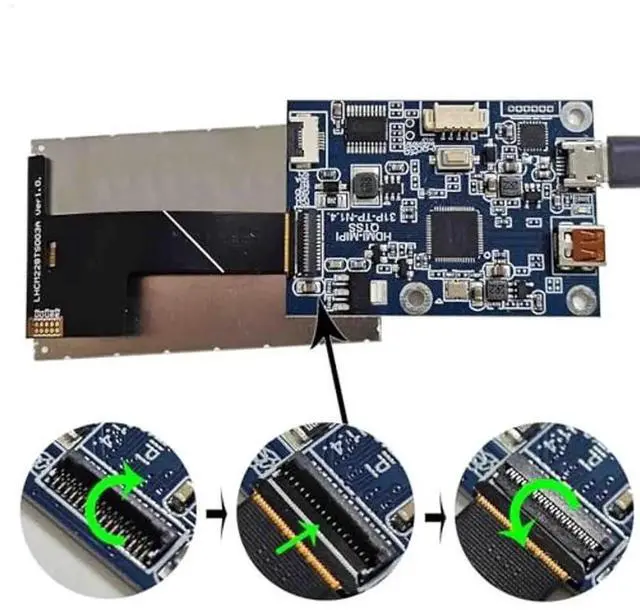

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- Packing lists1× LCD BoarVS-RGB21-V06,1×2.28inch 368X552 VS228001C31 LCD Screen
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

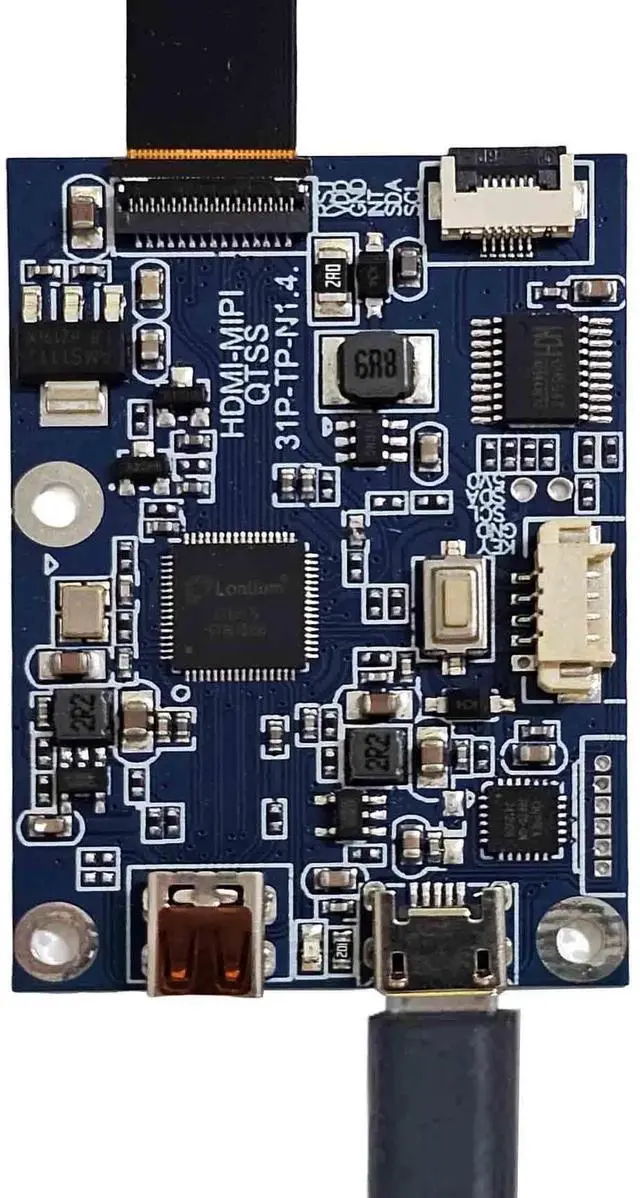

LCD Controller Board:
Input Power Adapter: 5Vdc More than 0.5A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: Micro H/D
Board Size: 50mm x 35mm x 4.5 mm
2.28" VS228001C31 368x552 LCD Screen
Display IPS, Normally White, Transmissive
Resolution 368 (RGB) ×552
Outline Size 36.14 × 55.8 × 2.4 (H×V×D)mm
Display Area 32.02 × 48.02 (H×V)mm
Brightness 600 cd/m² (Typ. )
Contrast Ratio 800:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. ) (CR10) [Left / Right / Up / Down]
Interface MIPI, 31 pins, FPC
Backlight WLED
Input Voltage 1.8 / 3.3 V (Typ. )

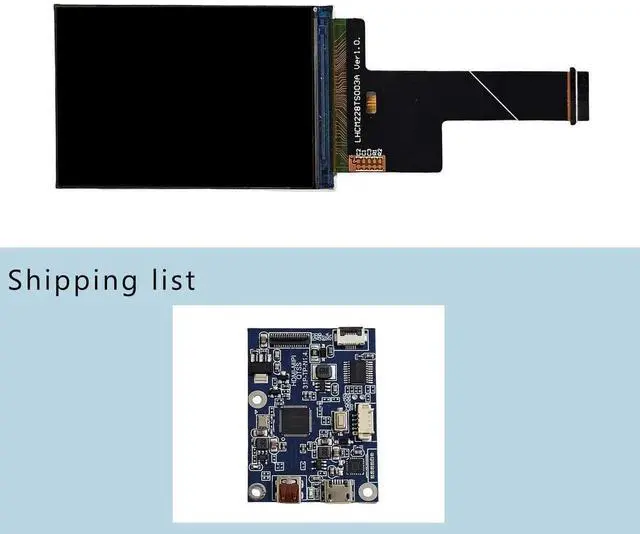

Packing list:
1× LCD Board
1× 2.28 inch 368X552 VS228001C31 LCD Screen
