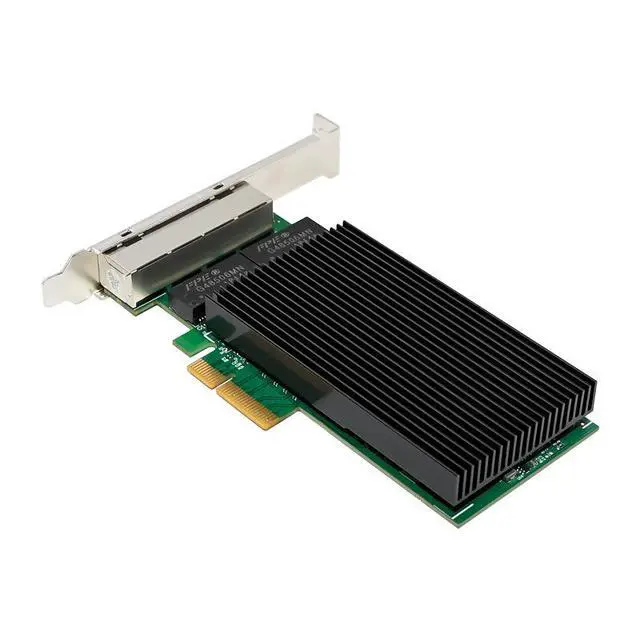

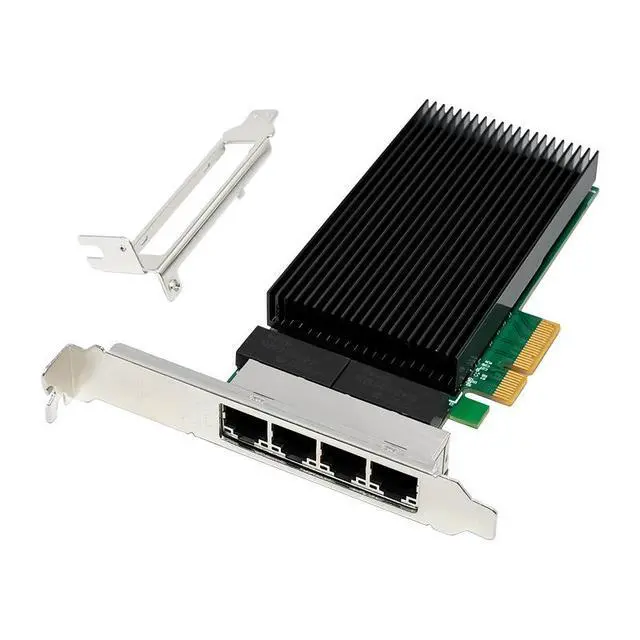

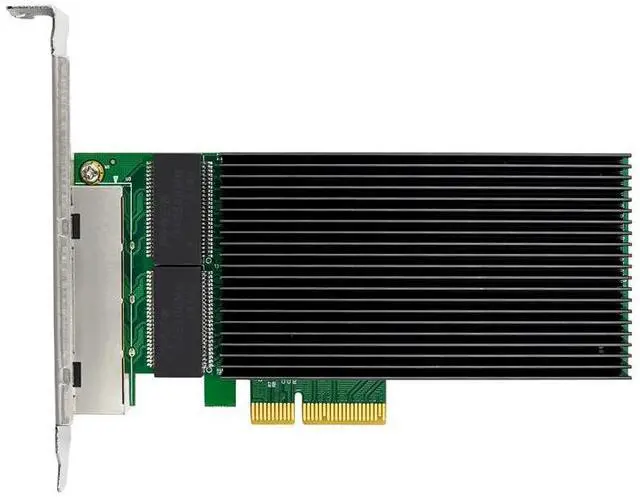

SUNWEI ST7419 PCIe 3.1 x4 I226-T4 Four-port 2.5GBASE-T Server Network Card
- PCI-E Intel 1226 2.5G Ethernet Server Network Card, featuring a high-performance Intel 1225-V Ethernet Controller.The Intel 1226- T4 controller features a Base-T copper cable network interface, which provides a compact four- port integratedmulti-gigabit (2.5G) - MDI (copper cable) standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, and
- 10BASE-TE connections.
- It can also support Intel vPro technology on specific Intel platforms. The PCH-E Intel12262.5G Ethernet server network cardis designed for: any mobile device with strict space limitations, desktops, workstations, value servers or industrial designs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCle x4 1226-T4 Four-Port 2.5G Gaming-speed Server Network Card
Compliant with the PCI Express specification revision 3.1 (5.0 GT/s)
MDI (copper) standard IEEE 802.3 Ethernet interface, 2.5 Gb/s
Meets four-port 2.5GbE RJ45 ports (copper cable)
Compliant with the MDI standards of IEEE802.3 for applications of 2500BASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-TE
Ethernet interface (IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3)
- IEEE 802.3 Auto Negotiator
Supports flow control in accordance with IEEE 802.3x and IEEE 802.3z, featuring software-controllable RX threshold and TX pause frames.
Automatic cross-checking function (MDI / MDI-X)
IEEE 1588 protocol and 802.1AS implementation
Supports Time-Sensitive Networking (TSN) functionality
Support for IEEE 802.3az energy-efficient Ethernet (EEE) for local area network wake-up
Supports TCP/UDP, IPv4 checksum offloading (Rx/Tx), transmission segment offloading (TSO) (IPv4, IPv6)
Supports data packets with a maximum size of 9.5KB.
