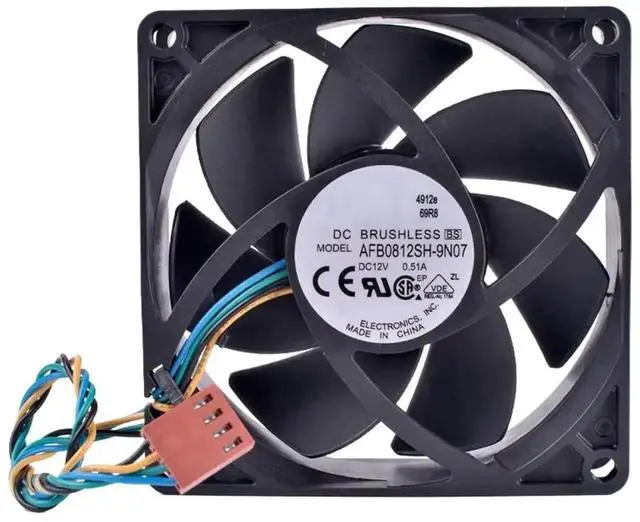

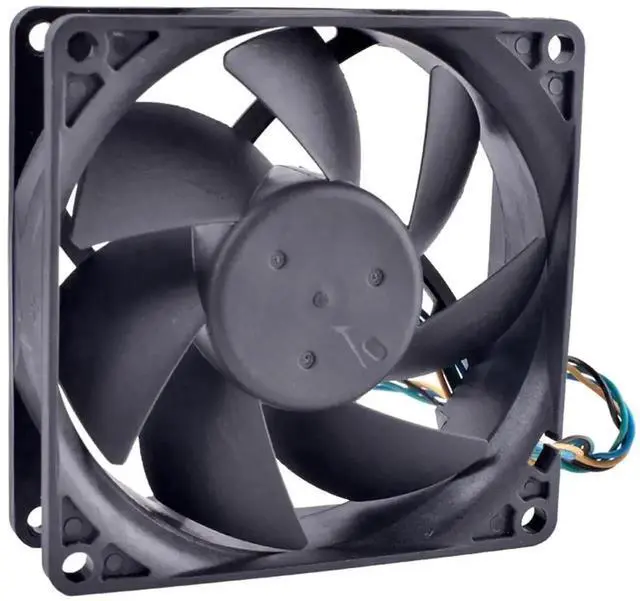

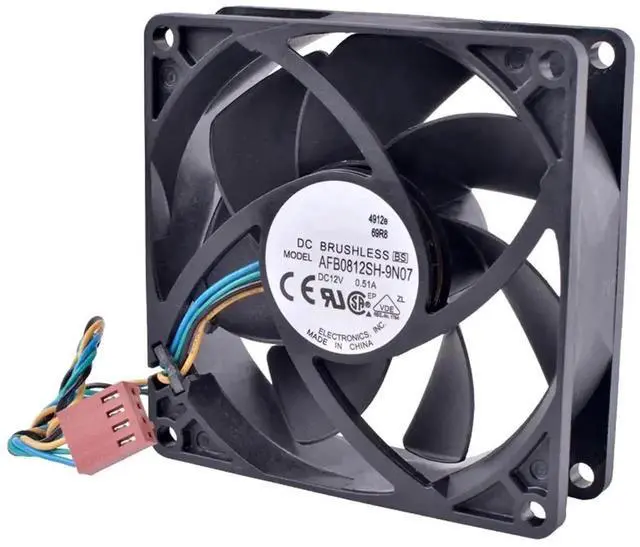

Delta AFB0812SH-9N07 8025 80mm PWM Fan, DC12V 0.51A, 4-Pin 4-Wire High Airflow Cooling Fan for CPU/Chassis
- Model & Size: AFB0812SH-9N07, standard 80×80×25mm (8025) square frame.
- Electrical: DC12V, 0.51A, 6.12W, 4-pin PWM connector with 4 wires.
- Performance: 10004500RPM (variable), max 63CFM airflow, 64Pa static pressure.
- Noise: 1544dBA, quiet operation at low speeds.
- Bearing: Dual ball bearing, long lifespan up to 50,000 hours.
- Application: Ideal for CPU coolers, computer cases, motherboards, and industrial devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand new original Delta AFB0812SH-9N07 axial cooling fan. Designed in 80×80×25mm compact size, it fits most standard 80mm fan mounts. Powered by DC12V 0.51A, it features a 4-wire 4-pin PWM interface for precise speed control (10004500RPM) based on temperature. Delivering up to 63CFM high airflow and 64Pa static pressure, it ensures efficient heat dissipation for CPUs and chassis. Built with dual ball bearings, it provides stable performance, low noise (1544dBA), and extended service life. Perfect for replacement or upgrade in desktops, workstations, and small industrial equipment.
