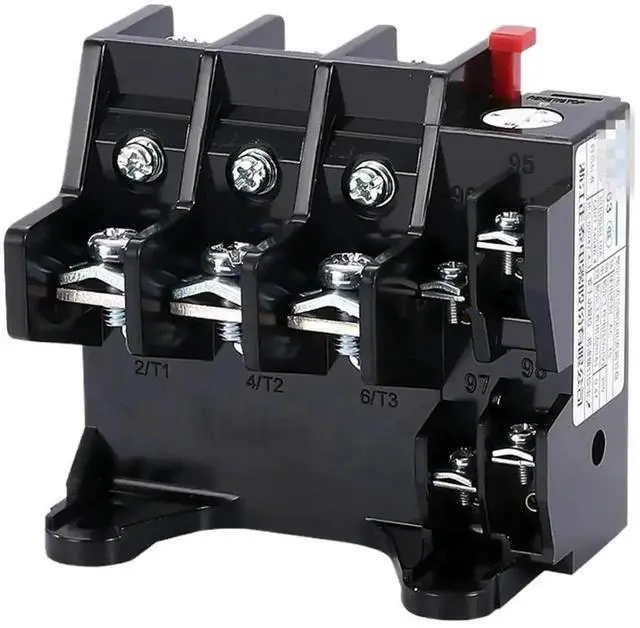

Main image of JR36-63 Adjustable Thermal Overload Relay, 3-Pole 1NO+1NC Aux Contact, Available Current Ranges 14-22A/20-32A/28-45A/40-63A (Model Shown: 20-32A)

Alt view image 2 of 2 - JR36-63 Adjustable Thermal Overload Relay, 3-Pole 1NO+1NC Aux Contact, Available Current Ranges 14-22A/20-32A/28-45A/40-63A (Model Shown: 20-32A)

Shop All AJMRTC Products | Visit TechCore Supply Store

JR36-63 Adjustable Thermal Overload Relay, 3-Pole 1NO+1NC Aux Contact, Available Current Ranges 14-22A/20-32A/28-45A/40-63A (Model Shown: 20-32A)

Model JR36-63 thermal overload relay with adjustable current dial, four optional current specifications: 1422A, 2032A, 2845A, 4063A; this listing is for 2032A variant
Standard 3-pole main circuit design, built-in 1 Normally Open + 1 Normally Closed auxiliary contact for fault alarm and circuit interlock control
Bimetallic strip thermal protection principle, automatically cuts off power when motor overload or single-phase loss occurs to prevent motor burnout
Manual/auto reset switch optional, transparent current adjustment window for intuitive current calibration, compact modular structure matching CJX2 series AC contactors
CE certified, flame retardant plastic housing, wide operating temperature range, widely used for three-phase asynchronous motor overload and phase-failure protection

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

JR36-63 series thermal overload relay is a classic low-voltage protection component matched with AC contactors for three-phase motor control cabinets. The adjustable current knob allows precise setting according to motor rated current. When long-term overload or phase loss happens, internal bimetallic sheets deform to trigger the auxiliary contact and cut off the control loop, realizing reliable motor protection. The integrated 1NO+1NC contact supports linkage with indicator lights, buzzers and control circuits, suitable for machine tools, water pumps, fans and other industrial motor equipment.
