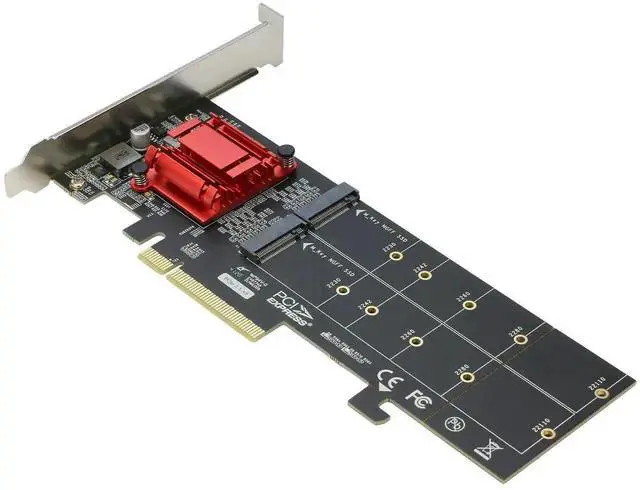

Dual M.2 NVMe PCIe 3.1 Expansion Adapter Card, PCI-E X8/X16 to 2-Port M Key NVMe SSD Converter, Support 2230/2242/2260/2280/22110 Size NGFF Drives
Limited time offer, ends 07/30 By TechCore Supply

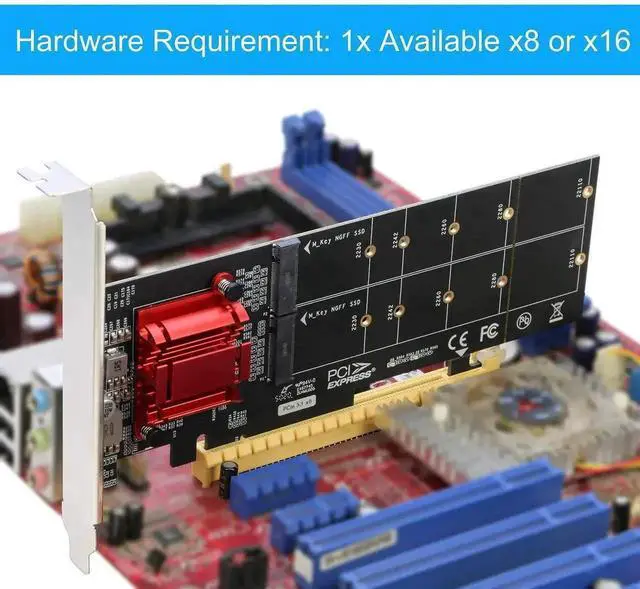

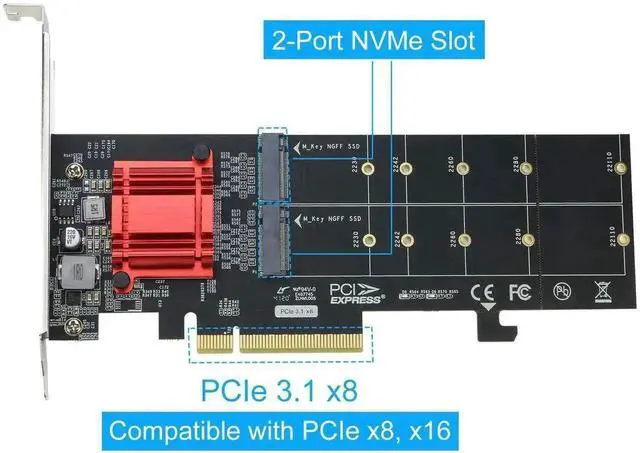

- PCIe 3.1 X8/X16 bandwidth, expand one PCIe slot to two independent M.2 M Key NVMe SSD slots

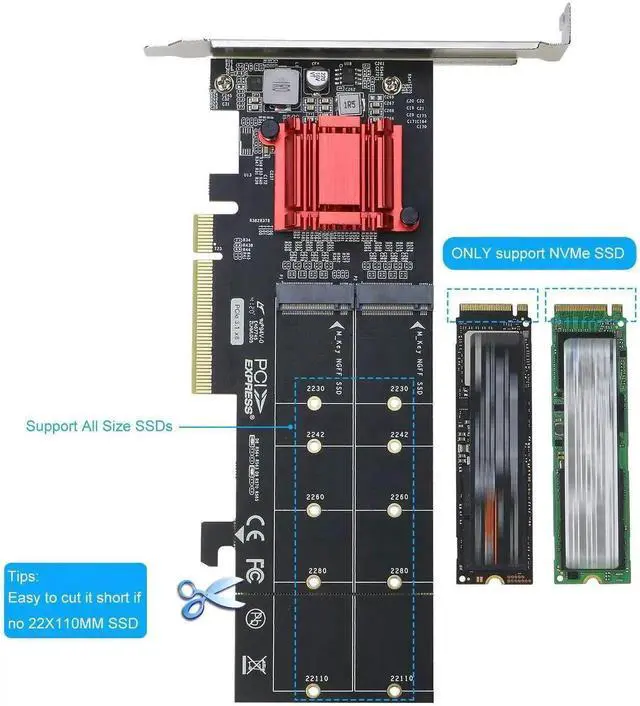

- Full size compatibility: supports all mainstream NVMe dimensions 2230, 2242, 2260, 2280, 22110
- Independent signal channels avoid transmission crosstalk, each SSD runs at full PCIe 3.0 X4 speed with BIOS bifurcation enabled
- Built-in passive aluminum heat sink, effectively lower chip and SSD temperature under long-term high-speed read-write
- Universal compatibility with Windows, Linux and NAS systems, ideal for workstation storage upgrade and high-speed disk array
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This dual NVMe PCIe expansion card converts a PCIe 3.1 X8/X16 slot into two M Key M.2 NVMe interfaces. It supports all common length specifications of NVMe solid state drives from short 2230 to long 22110. After enabling PCIe lane bifurcation in motherboard BIOS, both SSDs can operate at full PCIe 3.0 X4 bandwidth simultaneously for fast data transfer.
