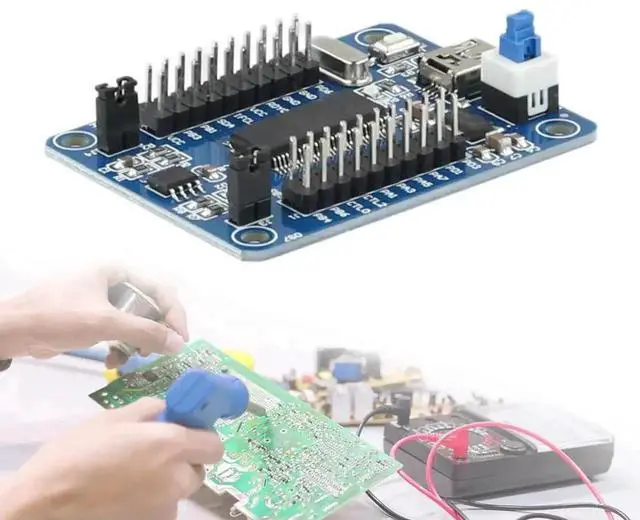

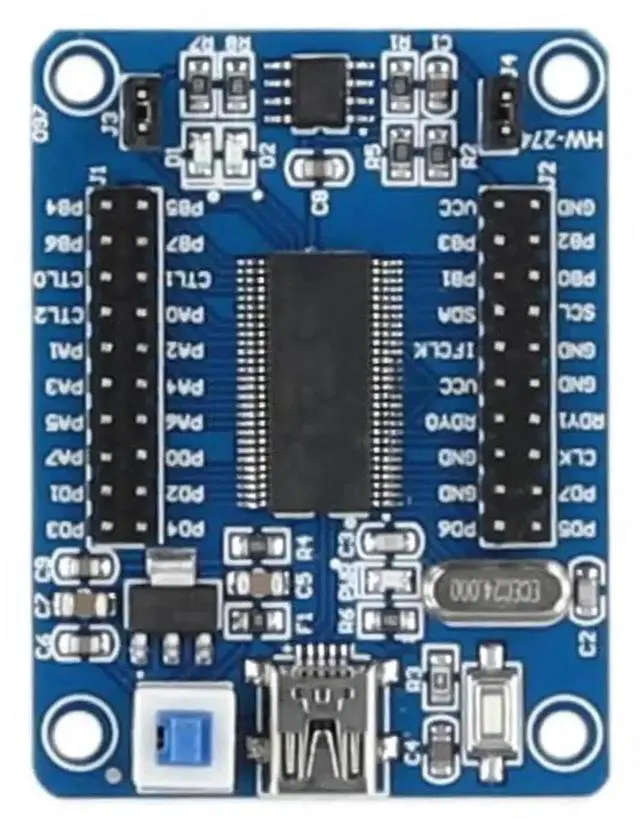

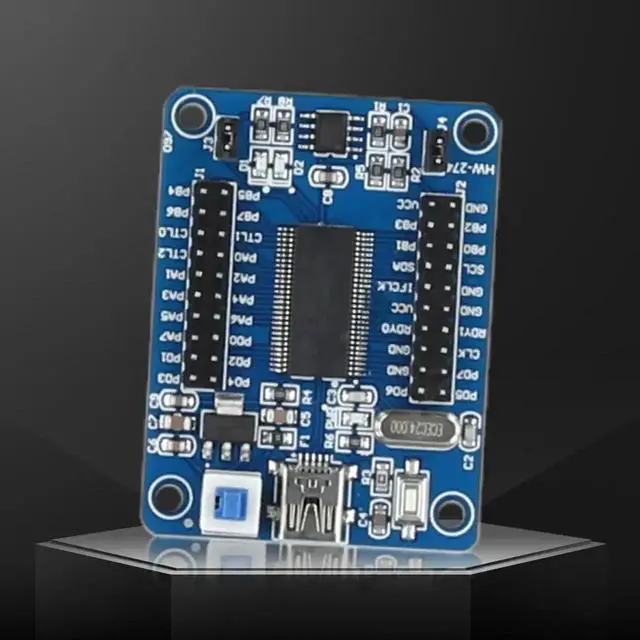

EZ-USB FX2LP CY7C68013A Mini USB Development Board Module Logic Analyzer USB Core Board

This mini USB core development module adopts the mainstream EZ-USB FX2LP CY7C68013A chip as the main control core, integrating complete USB 2.0 high-speed transmission circuit, supporting two core usage scenarios: firmware secondary development and digital signal logic analysis.

All GPIO, I2C, SPI and external expansion pins are fully led out on the board, allowing users to connect external sensors, drive circuits and peripheral modules for custom USB device development. It can work as a lightweight logic analyzer to capture digital waveform signals for hardware debugging without bulky test equipment.

Powered and communicated via mini USB port, the board supports hot plugging, with stable power management circuit to avoid chip burnout caused by voltage fluctuation. The hardware circuit is consistent with official reference design, fully matching Cypress official development SDK, example firmware and PC upper computer tools, greatly shortening project development cycles.

With small size and lightweight structure, it is suitable for student electronic teaching, embedded R&D, hardware circuit debugging and DIY USB equipment production. It is a cost-effective general-purpose USB development learning module for electronic engineers and hobbyists.
