AJMRTC CM5-IO-BASE-A Mini Base Board (A), Carrier Board Designed for Raspberry Pi Compute Module 5, Dual 4K HDMI, Gigabit Ethernet, USB3.2, MIPI CSI/DSI, 40PIN GPIO, PCIe Interface for Embedded Indust
- - CM5-IO-BASE-A mini carrier board specially designed for Raspberry Pi Compute Module 5, compatible with all CM5 variants (CM5 module NOT included)
- - Rich onboard interfaces: dual 4K HDMI, Gigabit Ethernet RJ45, dual USB3.2 Gen1, MIPI CSI/DSI, 40PIN GPIO header and PCIe Gen2/3 x1
- - TF card slot available for CM5 Lite version without eMMC storage; reserved 5V 4PIN PWM fan header for heat dissipation
- - Compact 85×56mm form factor, easy to integrate into embedded devices, industrial control and custom product development
- - Plug-and-play peripheral expansion, ideal for CM5 evaluation, AI vision, digital signage and embedded system prototyping
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

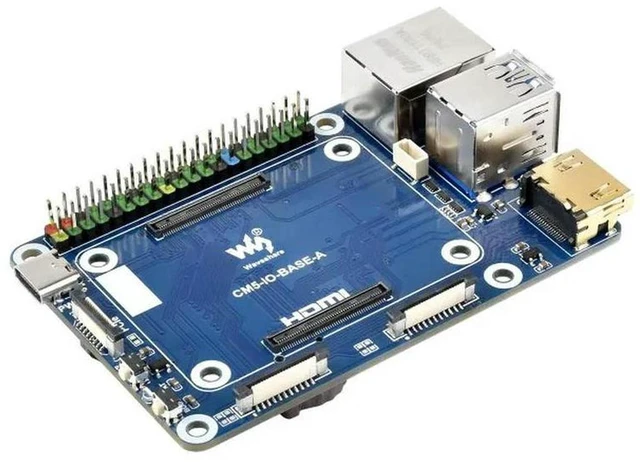

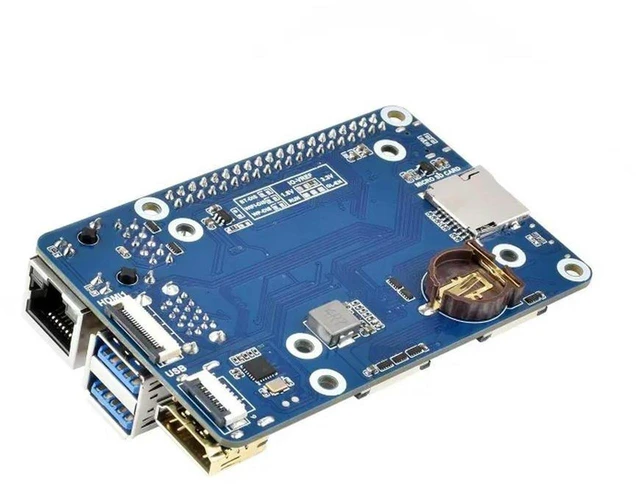

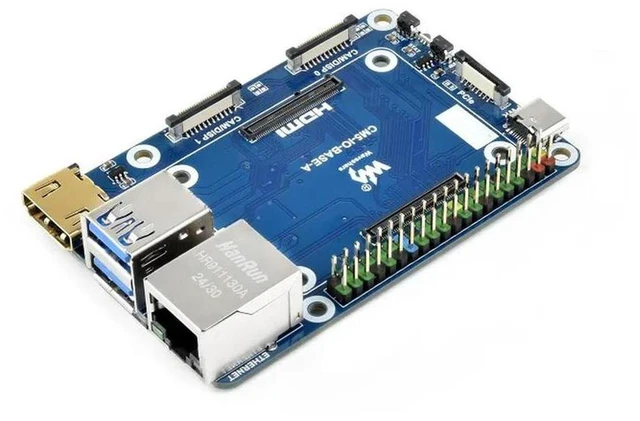

AJMRTC CM5-IO-BASE-A Mini Base Board (A) is a compact carrier board built exclusively for Raspberry Pi Compute Module 5. It converts the high-density signals of CM5 into common external ports to simplify embedded development and product integration.
The board supports dual 4K HDMI video output, dual MIPI CSI/DSI for camera and display connection, Gigabit Ethernet for stable network communication, and two USB3.2 Gen1 Type-A ports for high-speed data transfer. It also comes with 40PIN Raspberry Pi standard GPIO header and PCIe Gen2/3 x1 expansion interface. A TF card slot is reserved for CM5 Lite without eMMC storage, and a PWM fan header supports active cooling.
With small footprint, it is perfect for CM5 evaluation, AI vision projects, industrial embedded control, digital signage and custom device development.
Note: Raspberry Pi Compute Module 5 is sold separately and not included.
- Brand: AJMRTC
- Model: CM5-IO-BASE-A
- Product Name: Mini Base Board (A) / CM5 Carrier Board
- Compatible Core: Raspberry Pi Compute Module 5 (all variants, CM5 NOT included)
- Video: Dual HDMI, supports dual 4K output
- Network: Gigabit Ethernet RJ45
- USB: 2 × USB3.2 Gen1 Type-A
- Interface: MIPI CSI/DSI, 40PIN GPIO, PCIe Gen2/3 x1, TF Card Slot, 5V PWM Fan Header
- Power Input: DC 5V 5A
- Dimension: 85 × 56mm
- Application: Embedded Development, AI Vision, Industrial Control, Digital Signage
