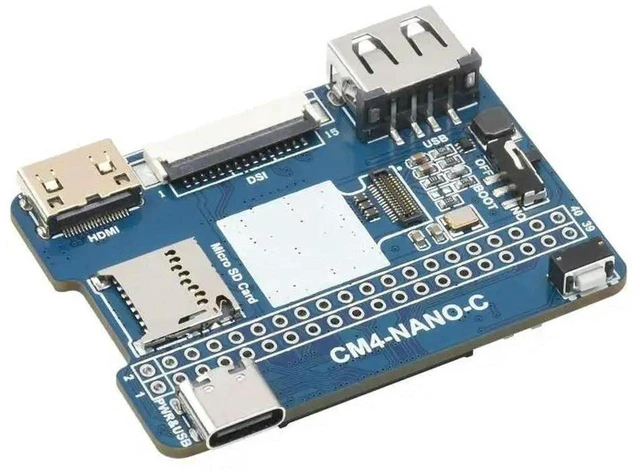

AJMRTC CM4-NANO-C Nano Base Board (C) for Raspberry Pi Compute Module 4 (CM4 Not Included), Same Size as CM4, Onboard 8MP IMX219 Camera with 160° FOV, Mini Carrier Board for Edge Vision & Embedded IoT
- - CM4-NANO-C Nano base carrier board exclusively for Raspberry Pi Compute Module 4 (CM4 sold separately), same compact dimension as CM4 for space-constrained designs
- - Onboard 8MP IMX219 camera with 160° wide field of view, ready for image capture, object recognition and visual detection applications
- - Rich reserved interfaces: Mini HDMI supporting 4K@30fps, MIPI DSI display port, USB2.0 TypeA and TF card slot for CM4 Lite
- - 40PIN standard GPIO header, simple wiring, compact layout ideal for embedding into small devices and custom enclosures
- - Perfect for building edge vision systems, smart monitors, portable cameras, embedded IoT nodes and maker vision projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

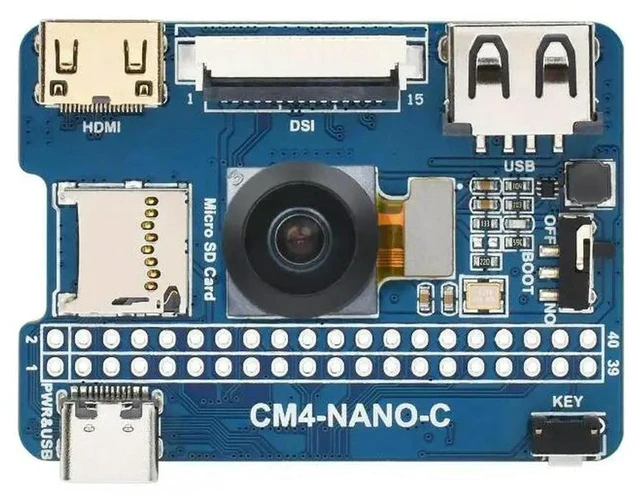

AJMRTC CM4-NANO-C Nano Base Board (C) is a tiny carrier board for Raspberry Pi Compute Module 4. Its PCB size matches the CM4 module, saving valuable space in compact embedded devices. It integrates an onboard 8MP IMX219 camera with 160° wide-angle lens for direct image acquisition. It features Mini HDMI with 4K 30fps video output, MIPI DSI screen interface, one USB2.0 TypeA port and TF card slot for CM4 Lite versions. The 40PIN GPIO header reserves expansion capability for extra peripherals. This mini carrier board is excellent for developing portable vision devices, edge visual IoT terminals and custom small embedded systems. Raspberry Pi Compute Module 4 is sold separately.
- Brand: AJMRTC
- Model: CM4-NANO-C
- Compatible Module: Raspberry Pi Compute Module 4 (CM4 NOT included)
- Camera: Onboard 8MP IMX219, 160° FOV
- Video Output: Mini HDMI (4K@30fps)
- Display Interface: MIPI DSI
- USB: USB2.0 TypeA
- Storage: TF card slot (for CM4 Lite)
- Feature: Same size as CM4, ultra compact, onboard wide-angle camera
- Application: Edge vision, embedded IoT, portable camera, maker vision projects
