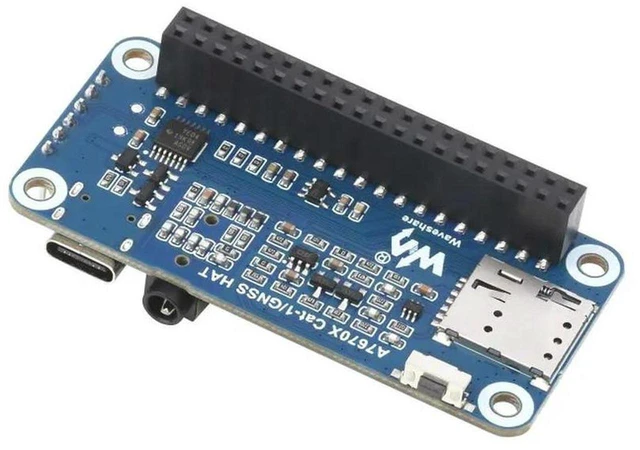

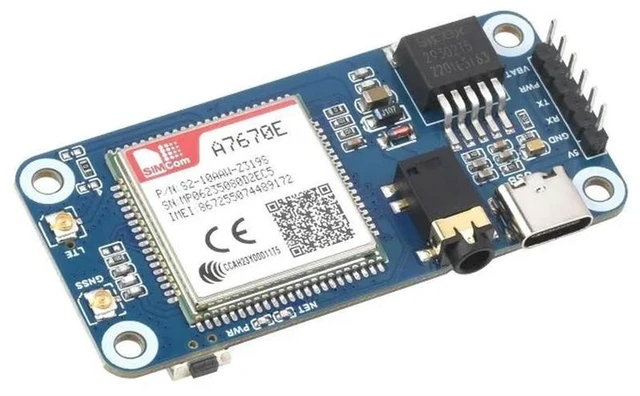

AJMRTC Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Built-in A7670E Module, LTE Cat-1 & 2G Network Support, GNSS Satellite Positioning, 40PIN GPIO Cellular Communication HAT for Remote IoT, Mobile Monito
- - Cellular HAT powered by A7670E module, supports LTE Cat-1, GSM, GPRS and EDGE 2G dual network connection
- - Integrated GNSS positioning function, supports multi-satellite positioning and LBS base station location for outdoor tracking
- - Standard 40PIN GPIO header, directly stackable on Raspberry Pi; equipped with USB and SIM card slot
- - Supports TCP/IP, MQTT, HTTP/HTTPS protocols, SMS, voice call and TTS text-to-speech function
- - Complete sample codes and tutorials, ideal for outdoor IoT terminals, vehicle tracking and remote data transmission
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC Cat-1/GSM/GPRS/GNSS HAT adopts the A7670E wireless module, offering LTE Cat-1 and 2G GSM/GPRS network access for Raspberry Pi single-board computers. It integrates GNSS satellite positioning and LBS base station positioning to acquire accurate geographic coordinates. It supports multiple network protocols including MQTT, HTTP and TCP/IP, and realizes SMS messaging, voice call and TTS text-to-speech. Designed with Raspberry Pi 40PIN GPIO pin layout, it can be mounted directly. It also comes with onboard USB interface and SIM card holder. Complete development resources are provided for secondary development. Widely used for outdoor IoT monitoring, vehicle positioning, remote data logging and mobile embedded projects.
- Brand: AJMRTC
- Product: Cat-1/GSM/GPRS/GNSS HAT
- Core Chip: A7670E
- Network: LTE Cat-1, GSM/GPRS/EDGE (2G)
- Positioning: GNSS + LBS base station positioning
- Interface: 40PIN GPIO, USB, SIM card slot
- Supported Protocol: TCP/IP, MQTT, HTTP(s), FTP(s), SSL
- Feature: Voice call, SMS, TTS, multi-band cellular communication
- Application: Vehicle tracking, outdoor IoT, remote monitoring, Raspberry Pi maker projects
