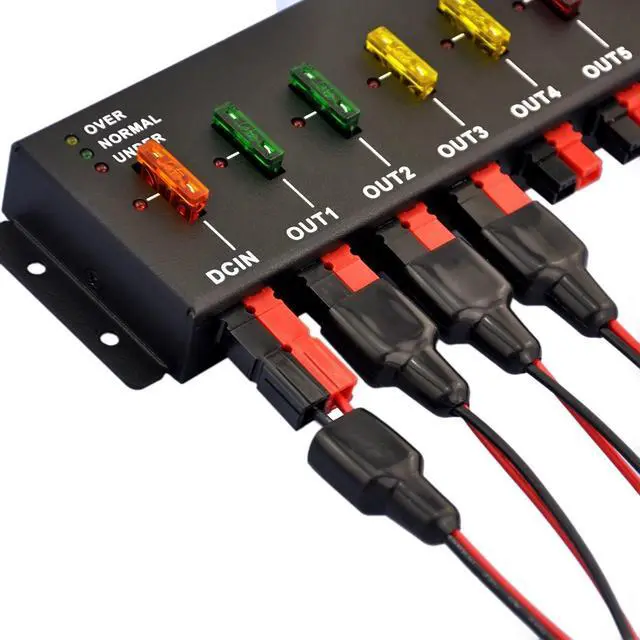

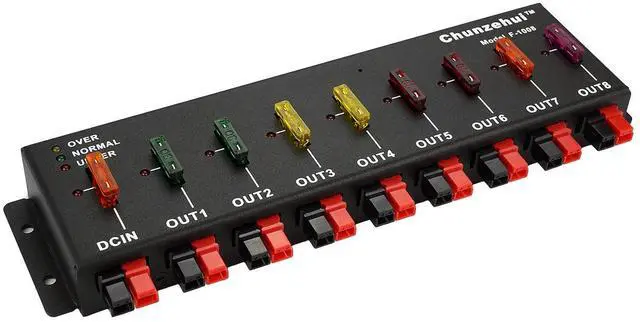

F-1008 Horizontal 9 Port 40A Connector Power Splitter Distributor Source Strip, 1 Input and 8 Output.

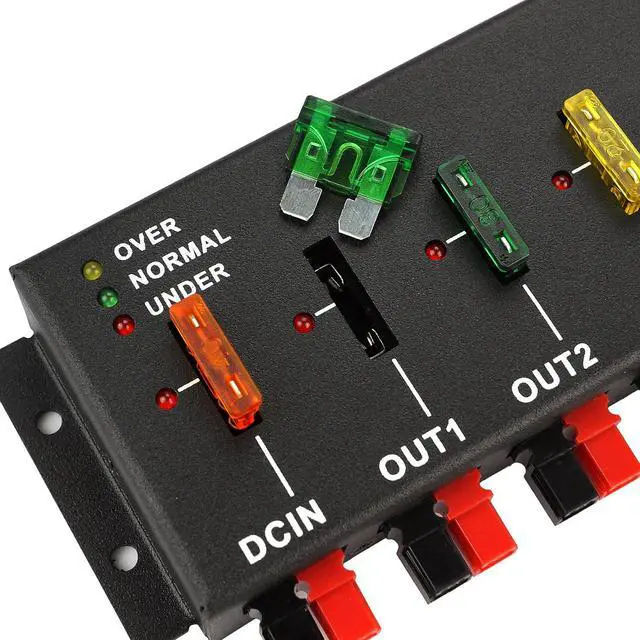

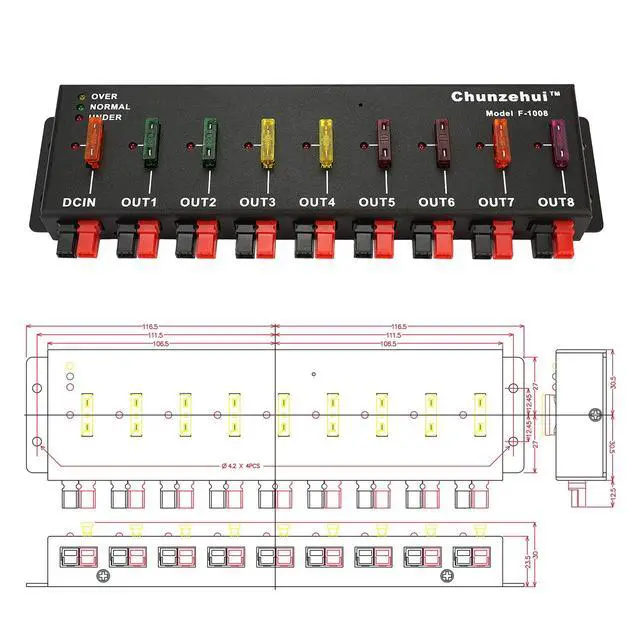

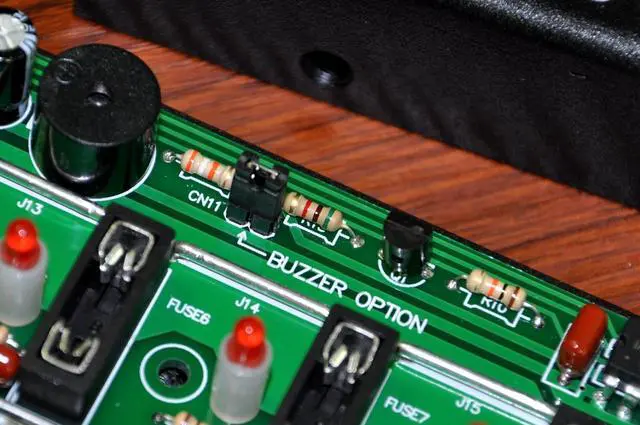

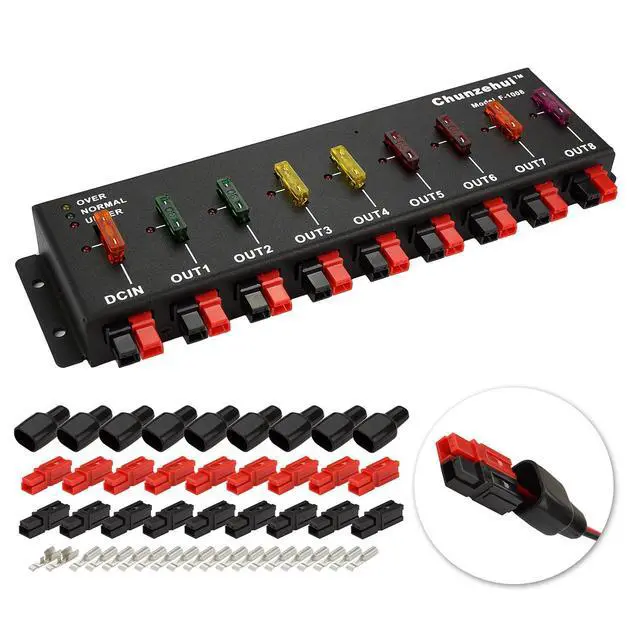

Operating voltage: 6 to 20VDC. No-load current: 2.7mA at 13.8V. Input port: maximum input current 40A, protected by a 40A fuse. Output port: 8 ports with fuses rated at 30A * 2, 20A * 2, 10A * 2, 5A * 1, and 3A * 1. High-quality fuse holders enable straightforward external fuse replacement. Standard ATC/ATO automotive fuses, available in 10 values from 1 to 40A, are widely compatible. LED indicators for over-voltage (15.0V) and under-voltage (11.5V) conditions, accompanied by a buzzer audio alarm. Each fuse has a dedicated fault indicator LED. Package includes: 9 black power pole housings, 9 red power pole housings, 9 PVC flame retardant cover sleeves, 18 silver-plated copper 30A 14-12AWG power pole contacts, and 2 tinned copper 45A 12-10AWG power pole contacts. Overall maximum dimensions (excluding cables): 233mm x 73.5mm x 30mm / 9.17" x 2.89" x 1.18". The enclosure is made of 1.5mm / 0.06" thick aluminum.
