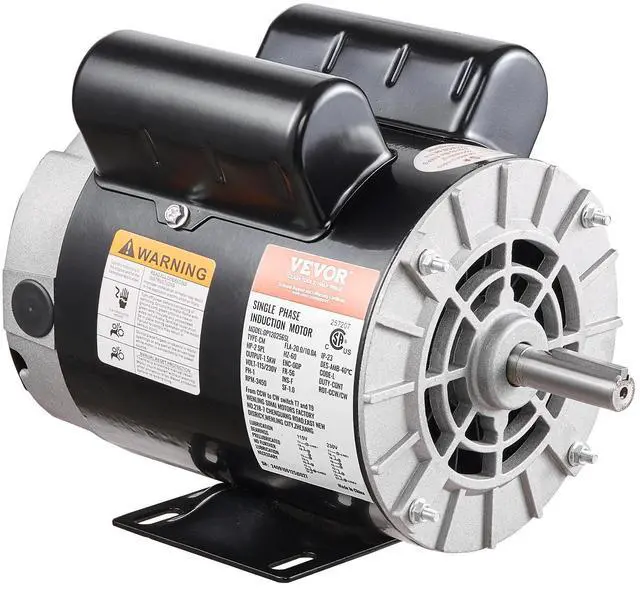

2HP Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Be the first to review this product...

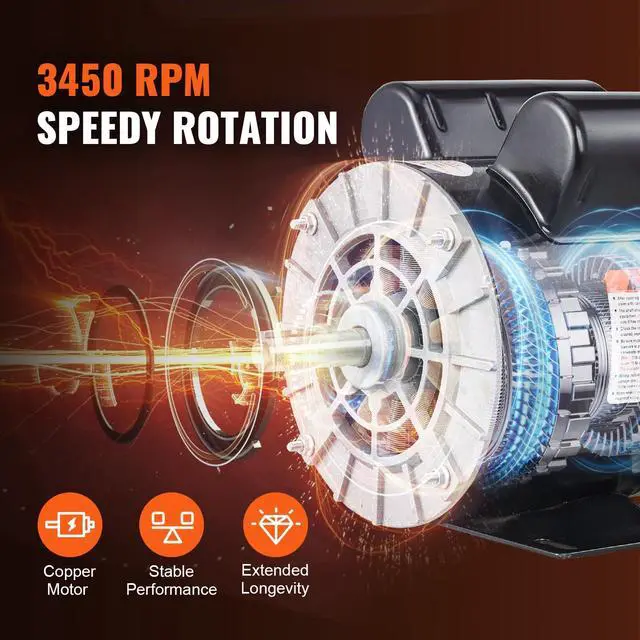

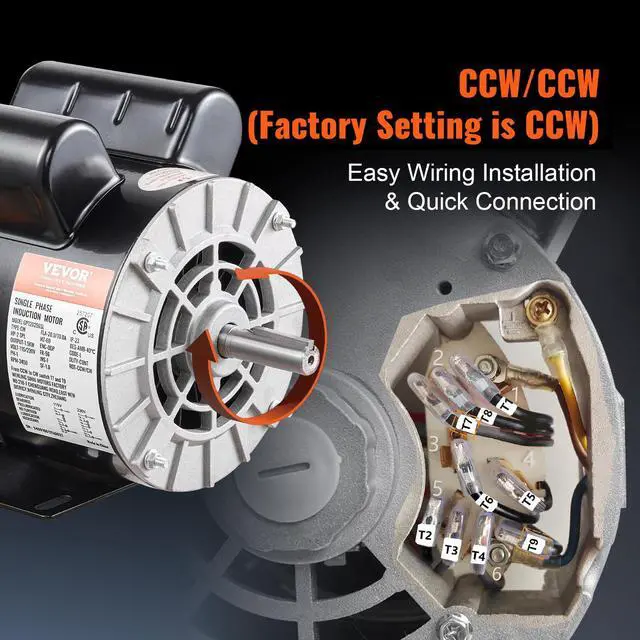

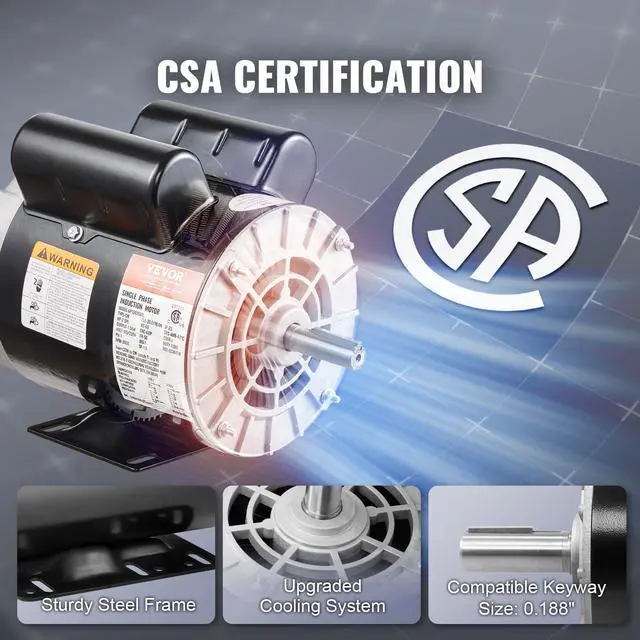

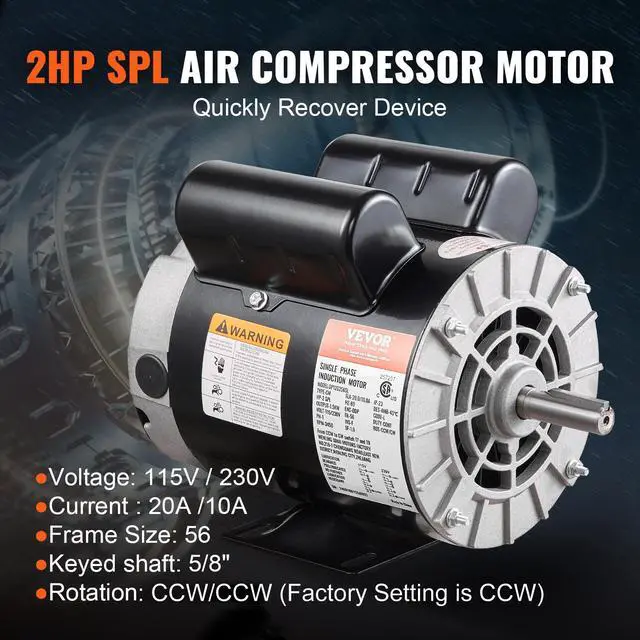

High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10 Amps, 115V/230V, SF: 1.0. Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size. Open Drip-proof: Recommended for clean and dry environments. Crafted from premium steel material, it provides protection for the engine and increased operational duration. Dual Rotation Direction: Motor is reversible for CCW/CW rotation (factory setting is CCW), enabling simpler wiring operations. Safe & Durable: Certified by CSA testing. Features a robust steel frame, rapid heat dissipation, and a matching keyed shaft for extended use. Note: The circuit breaker provided by the customer should be rated at 50 amps for 115V and 25 amps for 230V

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10 Amps, 115V/230V, SF: 1.0. Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size. Open Drip-proof: Recommended for clean and dry environments. Crafted from premium steel material, it provides protection for the engine and increased operational duration. Dual Rotation Direction: Motor is reversible for CCW/CW rotation (factory setting is CCW), enabling simpler wiring operations. Safe & Durable: Certified by CSA testing. Features a robust steel frame, rapid heat dissipation, and a matching keyed shaft for extended use. Note: The circuit breaker provided by the customer should be rated at 50 amps for 115V and 25 amps for 230V
