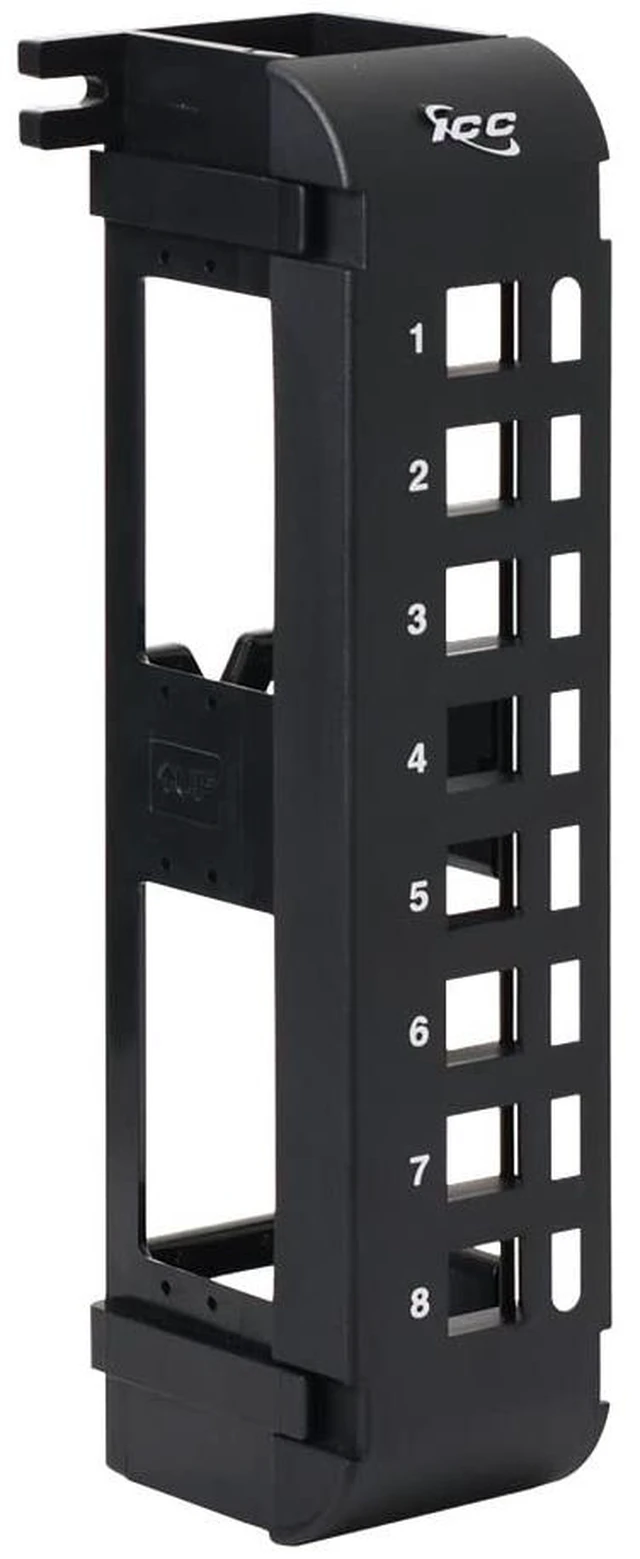

8-Port Blank Keystone Wall Mount Patch Panel, No Jacks, Black, 1-Pack Jacks not included. Accepts wide body inline IDC and slim body jacks. 89U bracket in box
- NO RACK REQUIRED: The Zero-U wall mount panel places 8 keystone terminations on a backboard, closet wall, or IDF where a 19 inch rack does not fit, and mounts vertically or horizontally. 89U BRACKET DEPTH: The two piece design pairs the panel with an 89U universal mounting bracket that adds standoff depth behind the ports for cable bend radius, measuring 10 in H x 3.30 in W with mounting tabs x 2.80 in D assembled. JACKS NOT INCLUDED: Ships as a blank panel - 1 patch panel and 1 89U bracket only - and accepts all IC107 modules for data, voice, audio, video, and fiber optic runs. WIDE OR SLIM JACK FIT: Accepts wide body inline IDC keystone jacks and slim body keystone jacks in any port position, and jacks sit flush with the front face to keep patch cords off the wall. UL LISTED AND TAA COMPLIANT: UL Listed E125268, UL 1863 and ANSI/TIA-568-C compliant, RoHS certified and TAA compliant, with an ABS+PC panel rated UL 94V-0 and an ABS bracket rated UL 94V-2
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
NO RACK REQUIRED: The Zero-U wall mount panel places 8 keystone terminations on a backboard, closet wall, or IDF where a 19 inch rack does not fit, and mounts vertically or horizontally.

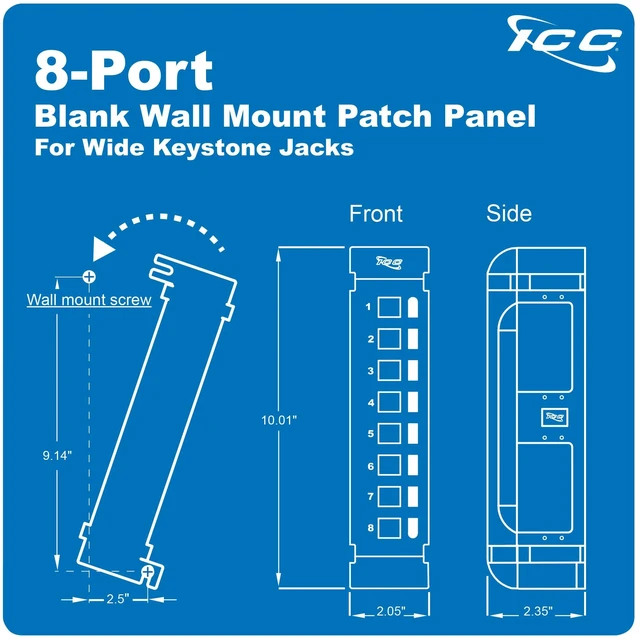

89U BRACKET DEPTH: The two piece design pairs the panel with an 89U universal mounting bracket that adds standoff depth behind the ports for cable bend radius, measuring 10 in H x 3.30 in W with mounting tabs x 2.80 in D assembled.

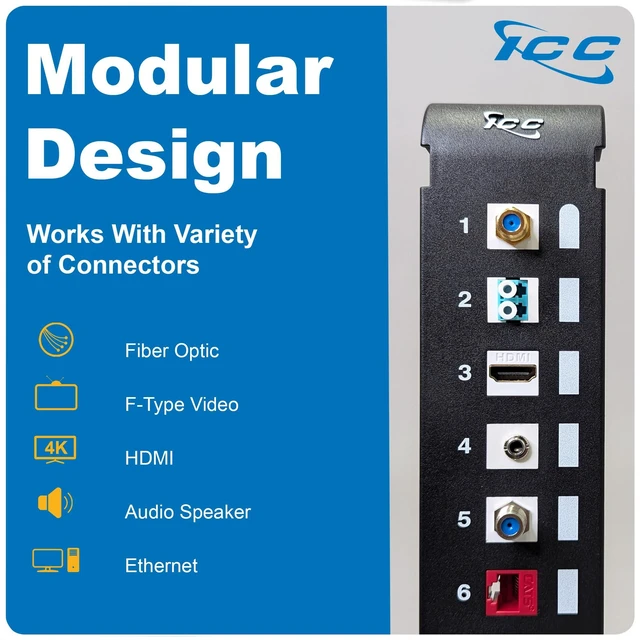

JACKS NOT INCLUDED: Ships as a blank panel - 1 patch panel and 1 89U bracket only - and accepts all IC107 modules for data, voice, audio, video, and fiber optic runs.

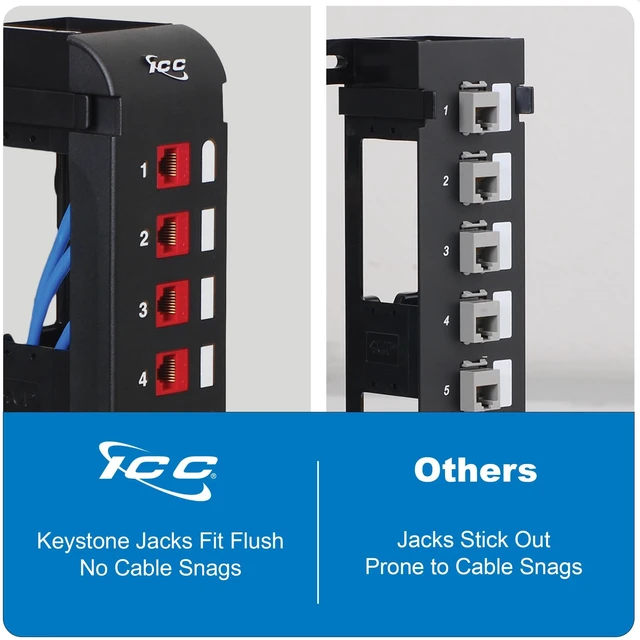

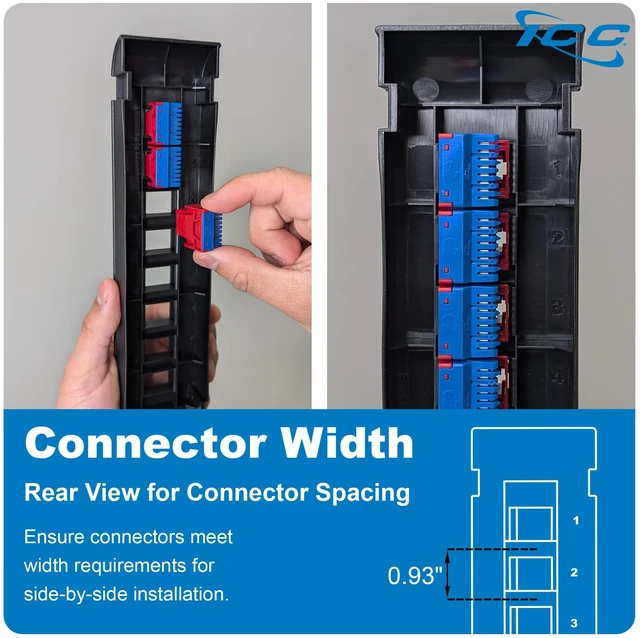

WIDE OR SLIM JACK FIT: Accepts wide body inline IDC keystone jacks and slim body keystone jacks in any port position, and jacks sit flush with the front face to keep patch cords off the wall.
UL LISTED AND TAA COMPLIANT: UL Listed E125268, UL 1863 and ANSI/TIA-568-C compliant, RoHS certified and TAA compliant, with an ABS+PC panel rated UL 94V-0 and an ABS bracket rated UL 94V-2
89U BRACKET DEPTH: The two piece design pairs the panel with an 89U universal mounting bracket that adds standoff depth behind the ports for cable bend radius, measuring 10 in H x 3.30 in W with mounting tabs x 2.80 in D assembled.
JACKS NOT INCLUDED: Ships as a blank panel - 1 patch panel and 1 89U bracket only - and accepts all IC107 modules for data, voice, audio, video, and fiber optic runs.
WIDE OR SLIM JACK FIT: Accepts wide body inline IDC keystone jacks and slim body keystone jacks in any port position, and jacks sit flush with the front face to keep patch cords off the wall.
UL LISTED AND TAA COMPLIANT: UL Listed E125268, UL 1863 and ANSI/TIA-568-C compliant, RoHS certified and TAA compliant, with an ABS+PC panel rated UL 94V-0 and an ABS bracket rated UL 94V-2
