Waveshare 2-Channel Isolated RS485 Expansion HAT, SC16IS752+SP3485 Dual Chip, SPI to RS485, Up to 921600bps, Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W HAT

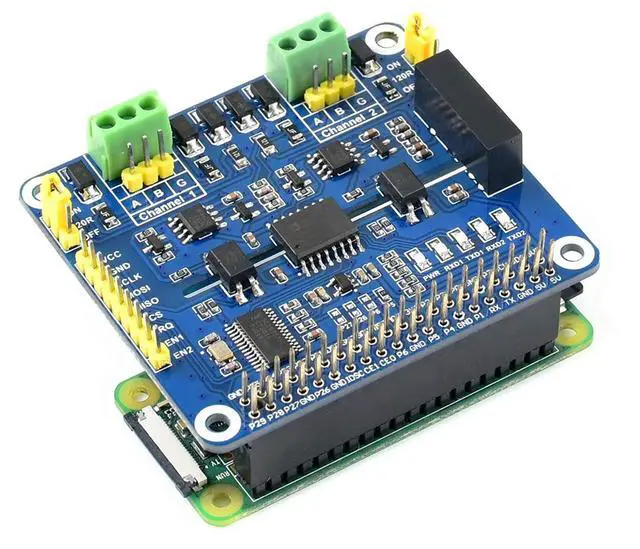

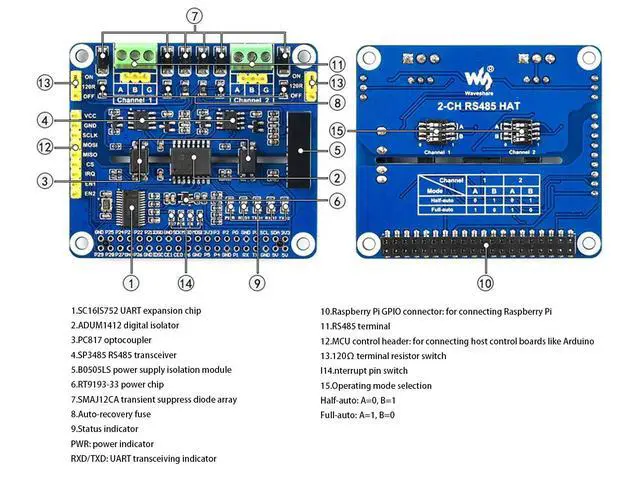

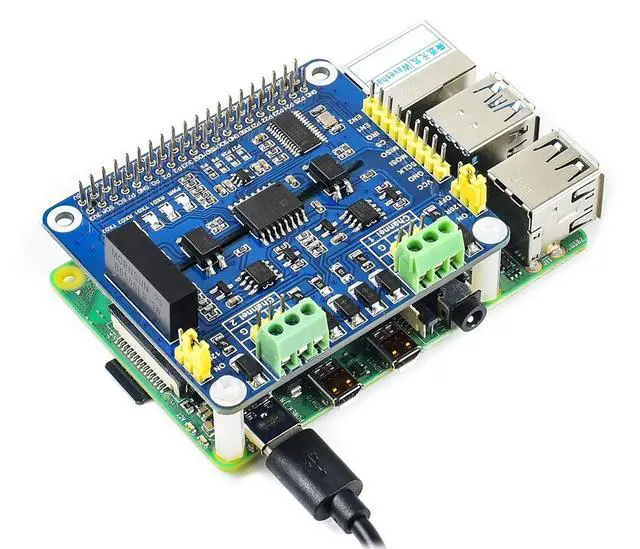

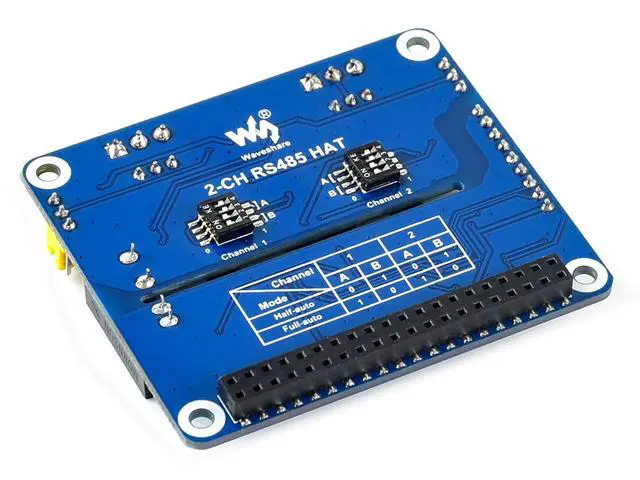

Overview This is a 2-channel isolated RS485 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3485 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc. It is easy to control the 2-channel RS485 for auto transceiving via SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Adopts SC16IS752+SP3485 dual chip combination, converts SPI to RS485, data rate up to 921600bps Allows transceiving data manually or automatically, configured by DIP switch Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic Onboard auto-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance Onboard LEDs for indicating the power and transceiver status Breakout SPI control pins, for connecting with host control boards like Arduino Comes with development resources and manual (examples in C and
Python) Specifications UART expansion chip: SC16IS752
RS485 transceiver: SP3485
Communication interface: SPI
Data rate: 300 ~ 921600 bps
Operating voltage: 3.3V / 5V

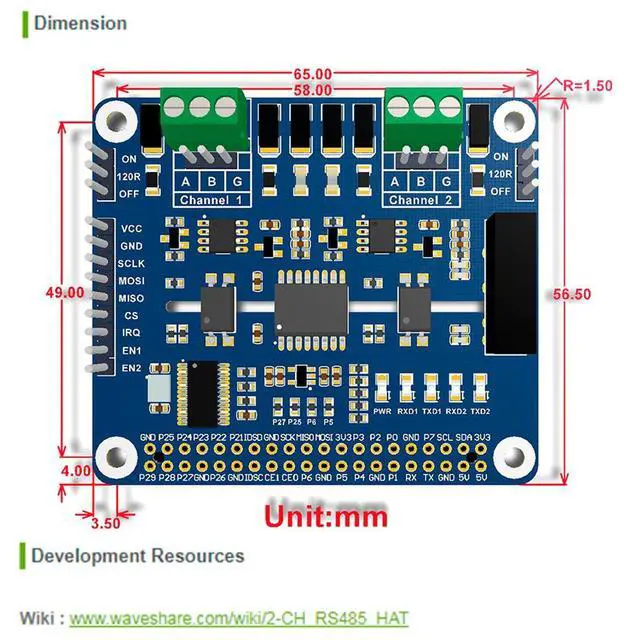

Dimensions: 65mm × 56.5 mm

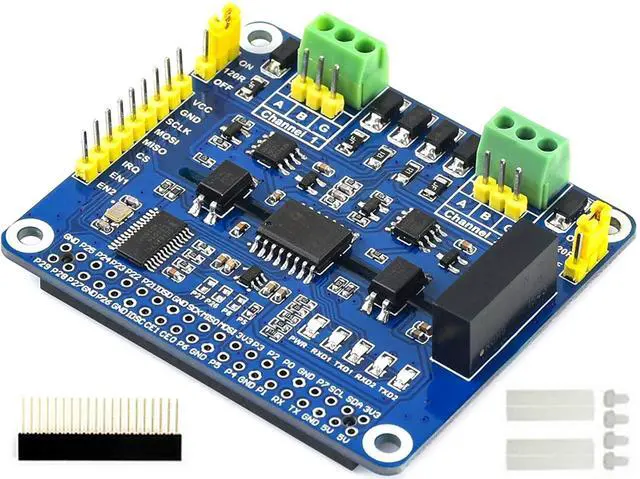

Mounting hole size: 3.0 mm Package Content 1.2 -CH RS485 HAT x1 2.2 x20PIN female pinheader x1 3. RPi screws pack (2pcs) x1
Note: 1. Raspberry Pi is NOT included. 2. Any questions, Please feel free to send us message.
