waveshare AS7341 Spectral Color Sensor with Spectral Identification and Color Matching Function, Multi Channels, I2C Control Interface, Compatible with Arduino/Raspberry Pi /STM32
- With AS7341 visible spectrum sensing IC as the core, this product can sense the visible light component values of different bands in the environment. It is also quite impressive in sensitivity and accuracy. At the same time, its volume is very small. To make a miniature spectrum analyzer, it will be a very good choice.; Incorporates AS7341 chip, which integrates 8 x visible spectrum channels, 1 x near-infrared channel, and 1 x no filter channel.; Embedded 6 x independent 16-bit ADC, which allows effectively processing data in parallel. Dedicated channel to detect ambient light flicker on the specific frequency.; Features spectrum interrupt detection, with programable high/low thresholds.; with Spectral identification and color matching function, ideal for applications like compact spectrometer. Compatible with Arduino/Raspberry Pi/STM32
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

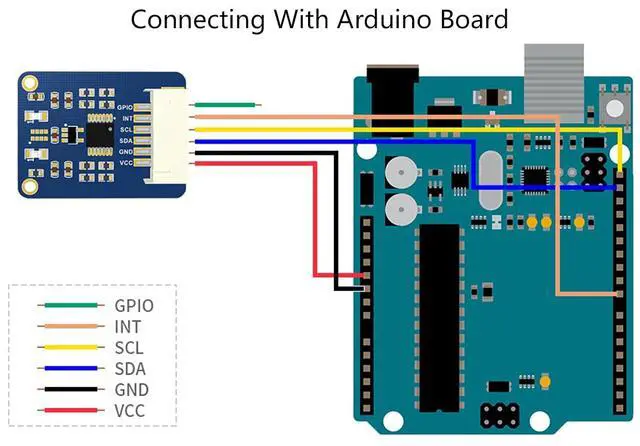

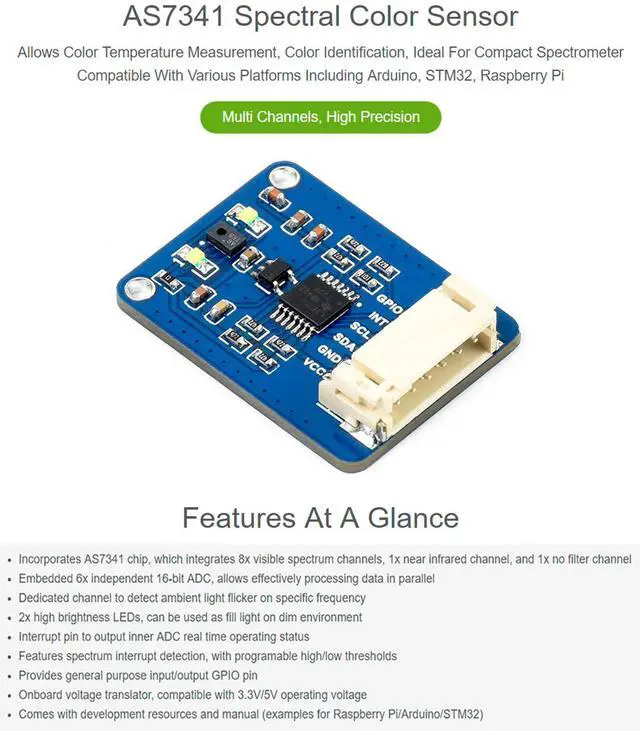

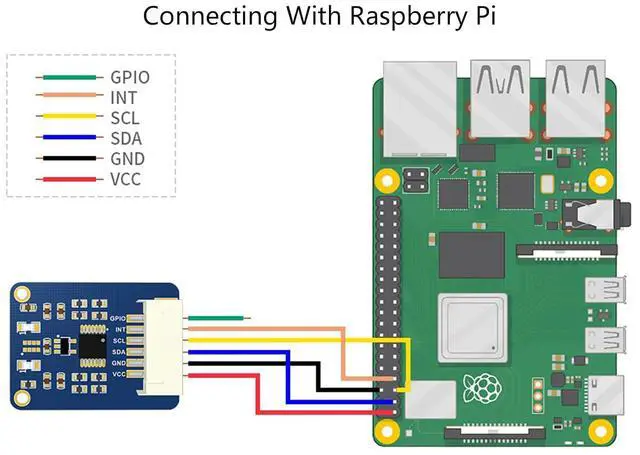

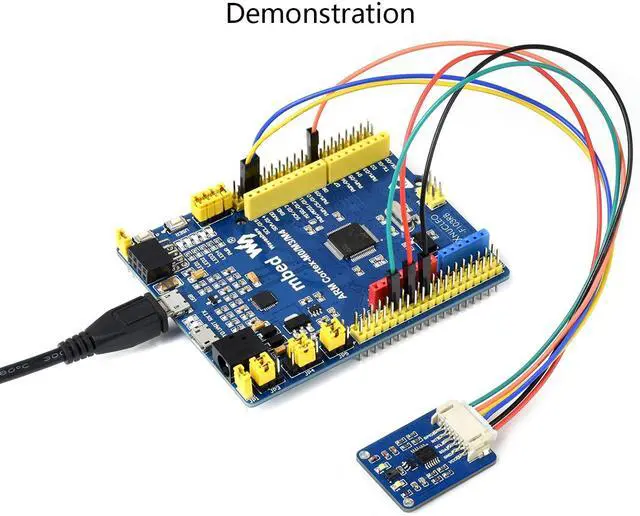

AS7341 Spectral Color Sensor, visible spectrum sensor, multi channels, high precision, I2C bus. with Spectral identification and color matching function, ideal for applications like compact spectrometer. Compatible with Arduino/Raspberry Pi/STM32. Features Incorporates AS7341 chip, which integrates 8x visible spectrum channels, 1x near infrared channel, and 1x no filter channel Embedded 6x independent 16-bit ADC, allows effectively processing data in parallel Dedicated channel to detect ambient light flicker on specific frequency 2x high brightness LEDs, can be used as fill light on dim environment Interrupt pin to output inner ADC real time operating status Features spectrum interrupt detection, with programable high/low thresholds Provides general purpose input/output GPIO pin Onboard voltage translator, compatible with 3.3V /5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specification Operating voltage: 3.3V /5V
Operating current: 20mA (without open the LED) 70mA (when open the
LED) Sensor: AS7341
Logical voltage: 3.3V /5V

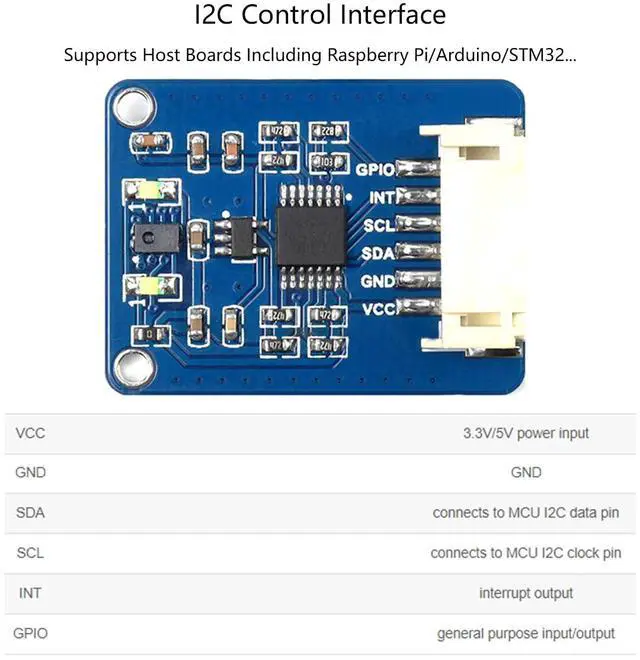

Interface: I2C

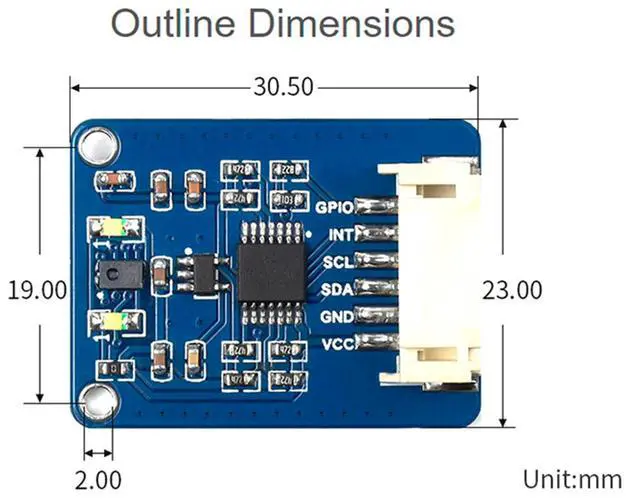

Dimension: 30.5 mm x 23mm
Mounting hole size: 2.0 mm Online Development Resources /User

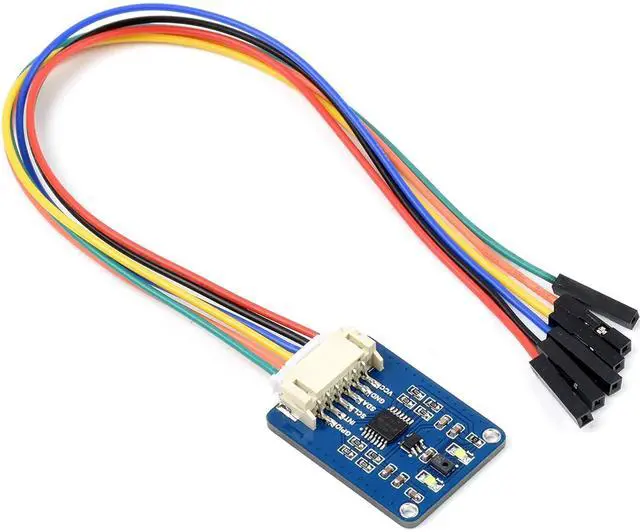

Manual: //bit. ly/3SKBuFf Package Content AS7341 Spectral Color Sensor x1 PH 2.0 6PIN wire 20cm x1
Specification Operating voltage: 3.3V /5V
Operating current: 20mA (without open the LED) 70mA (when open the
LED) Sensor: AS7341
Logical voltage: 3.3V /5V
Interface: I2C
Dimension: 30.5 mm x 23mm
Mounting hole size: 2.0 mm Online Development Resources /User
Manual: //bit. ly/3SKBuFf Package Content AS7341 Spectral Color Sensor x1 PH 2.0 6PIN wire 20cm x1
