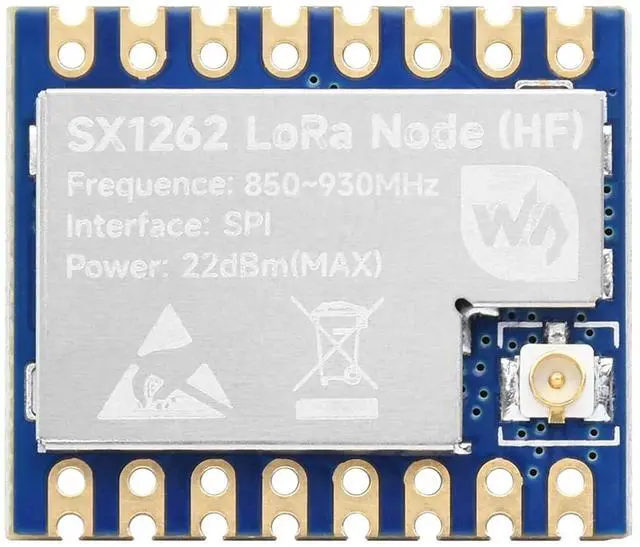

Core1262 LF/HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band, Quick Connect to Cloud Servers to Build LoRa/LoRaWAN Network,TCXO Crystal Oscillator
Limited time offer, ends 07/19 By EmpressTech

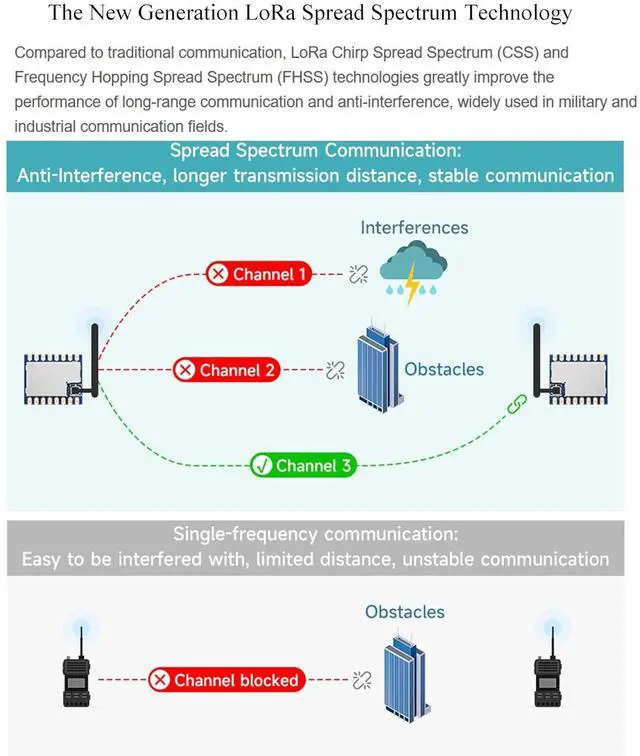

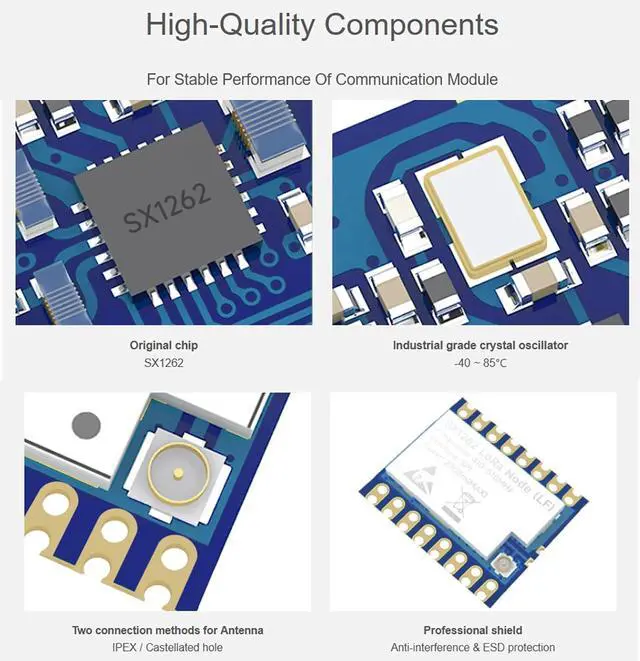

- 850 ~ 930MHz Frequency: The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278. Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network. 850 ~ 930MHz Frequency range.; The New Generation LoRa Spread Spectrum Technology: Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.; High-quality Components:For stable performance of communication module. Original SX1262 chip. Industrial grade crystal oscillator : -40 ~ 85. IPEX / Castellated hole Two connection methods for Antenna, Anti-interference & ESD protection Professional shield; TCXO Crystal Oscillator -Temperature Compensated Crystal Oscillator: Adopts high-quality components such as TCXO for working stably under harsh conditions. Ensure the long time working of the module without frequency shift at the high and low temperature environment of industry; Actual test environment: Sunny weather with an open field, 22dBm emit power, airspeed 0.3kbps, 6dBi magnetic CB antenna, 3m antenna height, 5km distance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

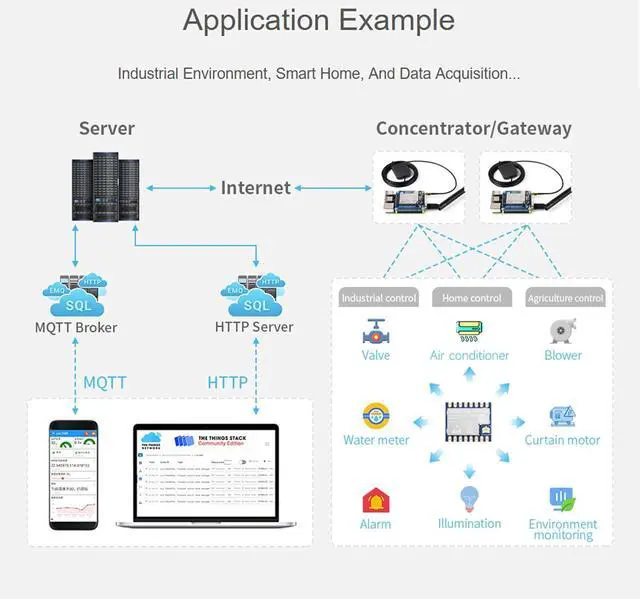

Features The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278. 850 ~ 930MHz Frequency range Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network Suitable for the application scenarios such as industry, smart home and data acquisition Adopts high-quality components such as TCXO Crystal Oscillator for working stably under harsh conditions, Ensure the long time working of the module without frequency shift at the high and low temperature environment of industry Actual

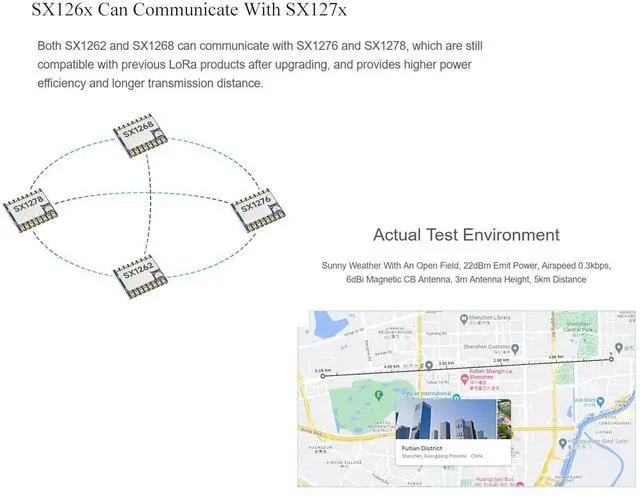

test environment: Sunny weather with an open field, 22dBm emit power, airspeed 0.3 kbps, 6dBi magnetic CB antenna, 3m antenna height, 5km distance Comes with Online Development Resources and Manual (examples for Raspberry Pi Pico/STM32)
Frequency range HF: 850 ~ 930MHz
Modulation: LoRa/ (G) FSK.
Data rate: 0.018 ~ 62.5K bps (LoRa) 0.6 ~300Kbps ( (G)
FSK) Emit power: 22dBm@ 3.3V
Spreadind factor: SF5 ~
SF12 Operating voltage: 3.3V
Module power consumption: emitting
current: 45mA@14dBm
receiving current: 5.3 mA@125KHz
Communication bus: SPI
Operating temperature: 0 ~ 85

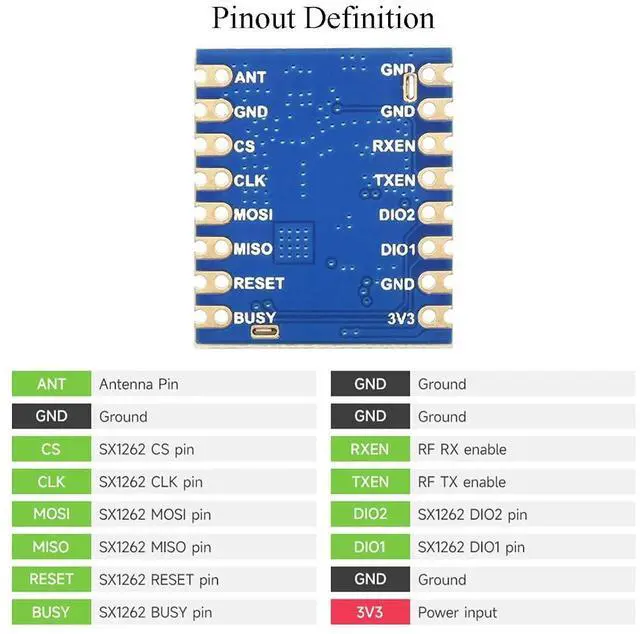

Connector: castellated edge / solder holes, pitch 2.54 mm
Dimensions: 21.00 × 52.00 mm Package Content Core1262-HF x1
test environment: Sunny weather with an open field, 22dBm emit power, airspeed 0.3 kbps, 6dBi magnetic CB antenna, 3m antenna height, 5km distance Comes with Online Development Resources and Manual (examples for Raspberry Pi Pico/STM32)

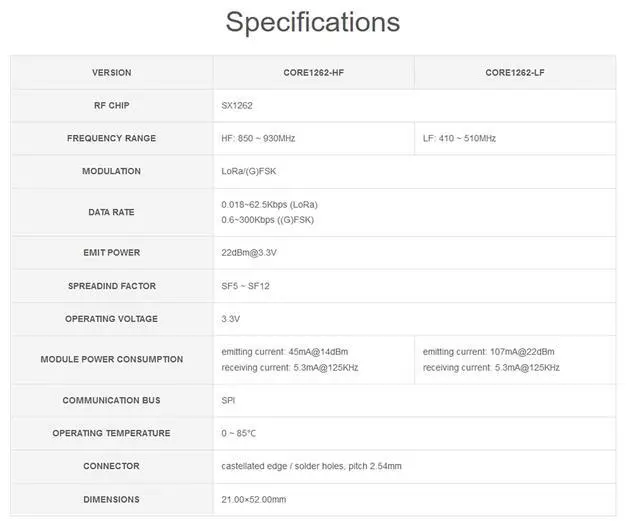

Specifications
RF chip: SX1262Frequency range HF: 850 ~ 930MHz
Modulation: LoRa/ (G) FSK.
Data rate: 0.018 ~ 62.5K bps (LoRa) 0.6 ~300Kbps ( (G)
FSK) Emit power: 22dBm@ 3.3V
Spreadind factor: SF5 ~
SF12 Operating voltage: 3.3V
Module power consumption: emitting
current: 45mA@14dBm
receiving current: 5.3 mA@125KHz
Communication bus: SPI
Operating temperature: 0 ~ 85
Connector: castellated edge / solder holes, pitch 2.54 mm
Dimensions: 21.00 × 52.00 mm Package Content Core1262-HF x1
