RGB Full-Color LED Matrix Panel 64×64 Pixels, 2.5mm Pitch, 4096 Individual RGB LEDs, Adjustable Brightness, Support Raspberry Pi/Raspberry Pi Pico/ESP32/Ardu, Display Text, Colorful Image/Animation

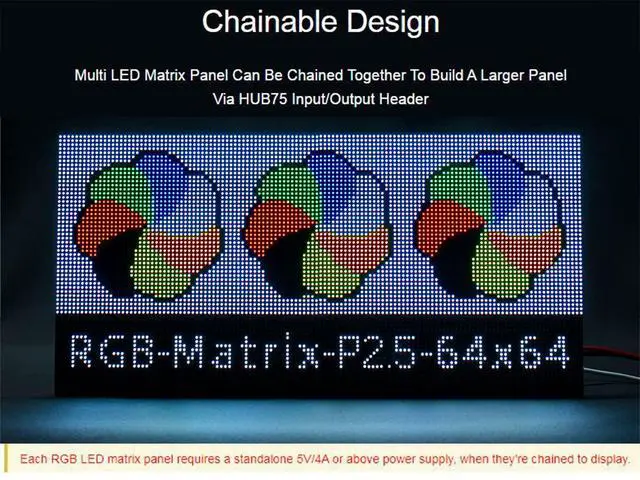

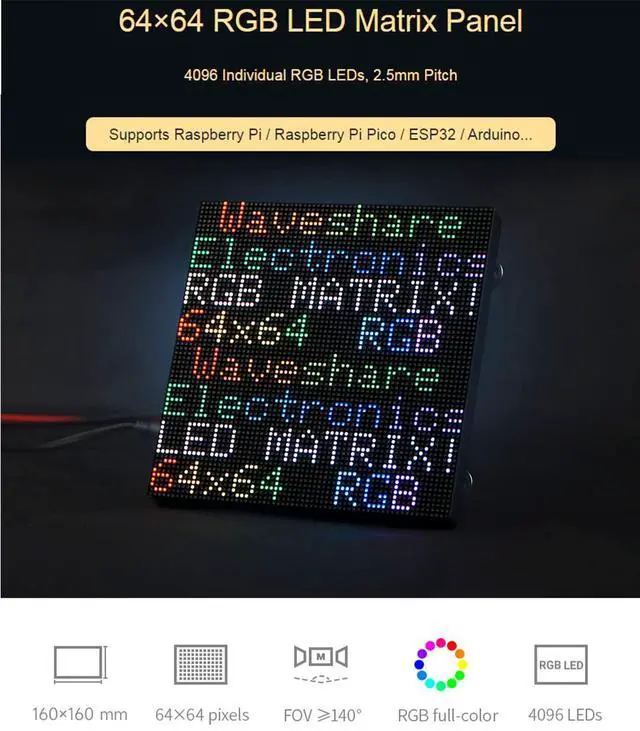

64×64 RGB LED Matrix Panel, 4096 Individual RGB LEDs, 2.5 mm Pitch. Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / for Arduino, etc. Features By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try? 4096 individual RGB LEDs, full-color display, adjustable brightness 64×64 pixels, 2.5 mm pitch, allows displaying text, colorful image, or animation 160×160mm dimensions, moderate size, suitable for DIY desktop display or wall mount display Onboard two HUB75 header, one for controller data input, one for output, chain support

Specifications

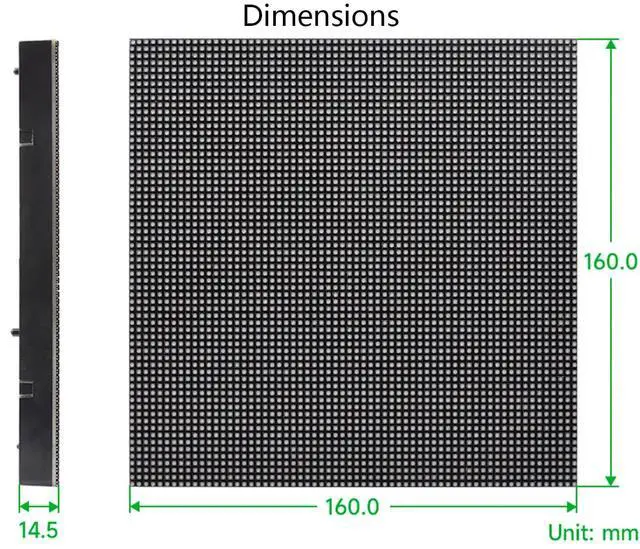

DIMENSIONS: 160mm × 160mm
PIXELS: 64×64=4096
DOTS PITCH: 2.5 mm
PIXEL FORM: 1R1G1B
VIEWING ANGLE: 140°
CONTROL TYPE: synchronization
DRIVING: 1/32 scan

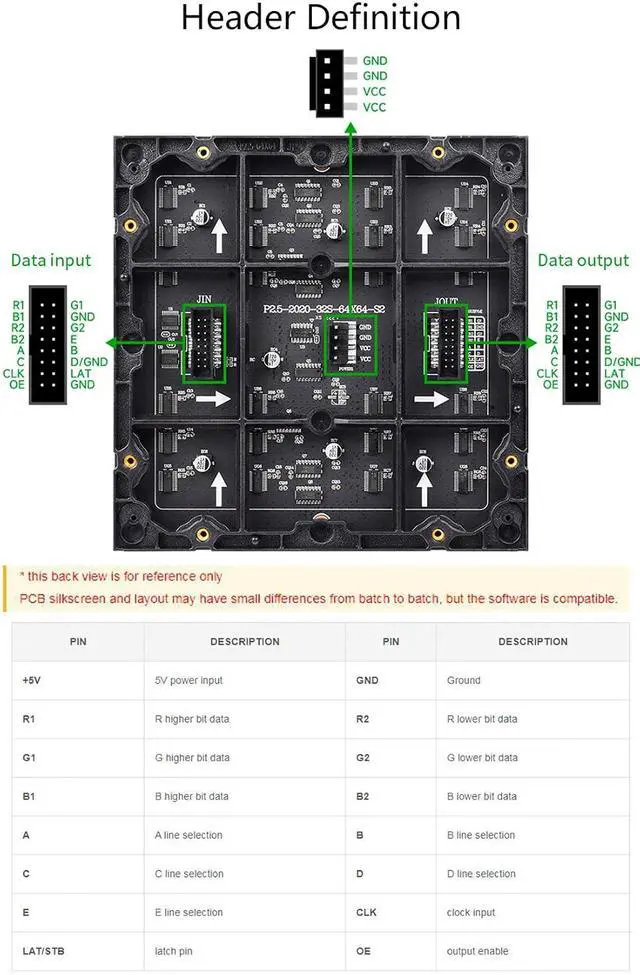

HEADER: HUB75
POWER SUPPLY: 5V / 4A (VH4 header input)
POWER: 20W Online Development Resources /User

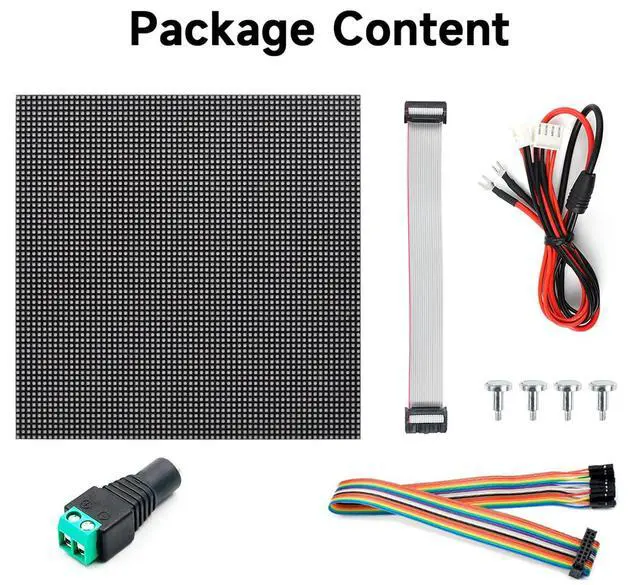

Manual: //bit. ly/3OpH3pL Package Content RGB-Matrix-P 2.5 -64x64 LED matrix and accessories x1 Power supply terminal adapter x1 16P wire ~30cm x1
