ESP32-S3 1.69inch Touch Display Development Board, 240×280 Pixels, 262K Color, Micro LCD Display with ESP32-S3, Accelerometer and Gyroscope Sensor

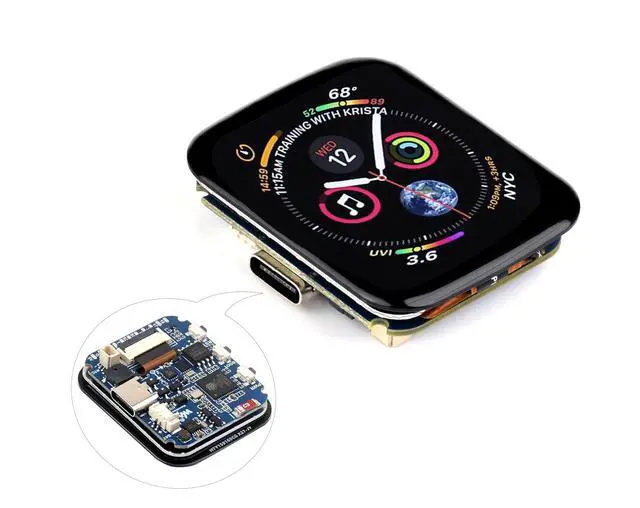

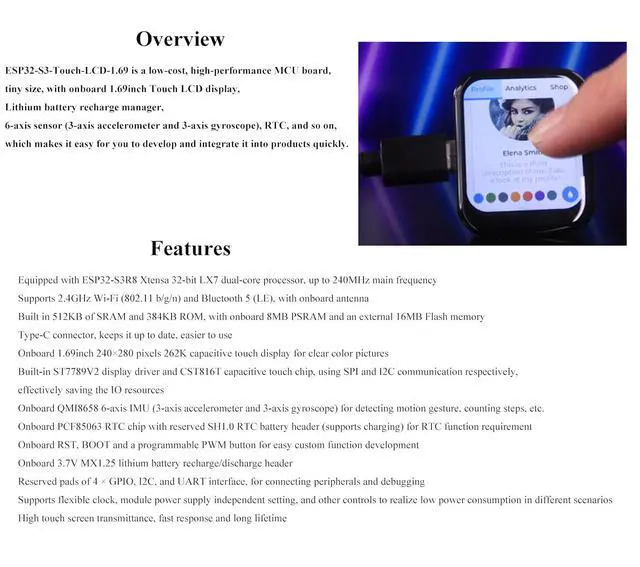

Product description ESP32-S3 Development Board with 1.69 inch Touch LCD Display, 240×280 Pixels 262K Color, Accelerometer And Gyroscope Sensor Introduction ESP32-S3-Touch-LCD- 1.69 is a high-performance MCU board, tiny size, with onboard 1.69 inch LCD display, Lithium ba-tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), R T C, and so on, which makes it easy for you to develop and integrate it into products quickly.

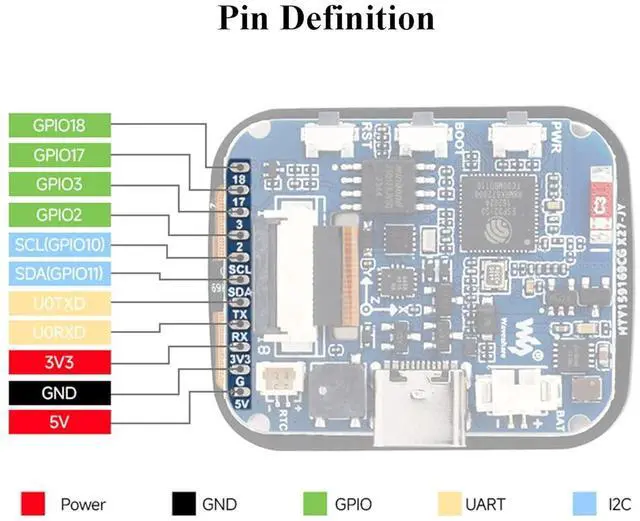

Key features include: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z W-i-F-i ( 802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.69 inch 240×280 pixels 262K capacitive touch display for clear color pictures Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 R T C chip with reserved SH 1.0 R T C ba-tte-ry header (supports charging) for R T C function requirement Onboard RST, BOOT and a programmable PWM button for easy custom function development Onboard 3.7V MX 1.25 lith-ium ba-tt-ery recharge/discharge header Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios High touch screen transmittance, fast response and long lifetime Small Size, Touch More Possibilities Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function What's On Board & Hardware Description Hardware Description Onboard patch antenna, uses 0 ohm shorted optional external antennas, as shown in.

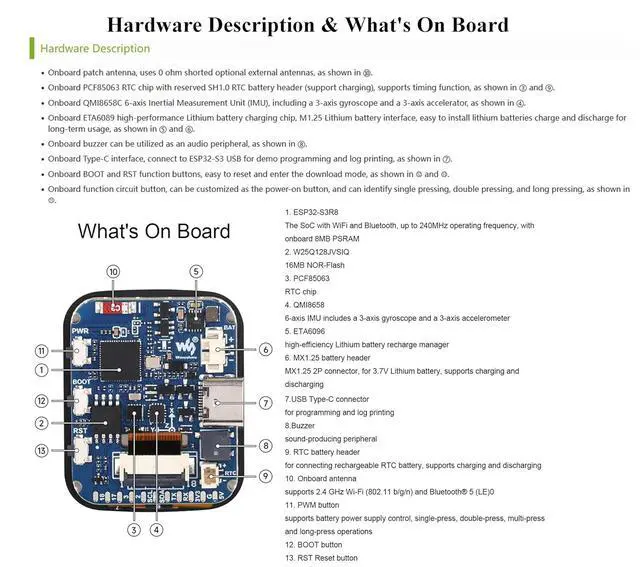

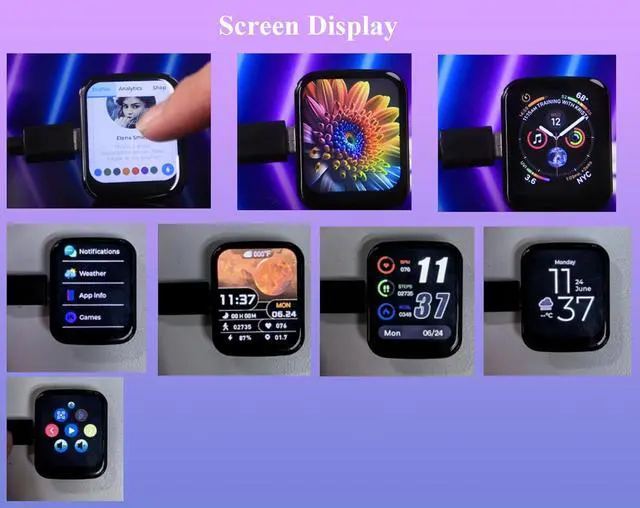

Onboard PCF85063 RTC chip with reserved SH 1.0 R T C ba-tte-ry header (support charging), supports timing function, as shown in 3 and. Onboard QMI8658C 6-axis Inertial Measurement Unit (IMU), including a 3-axis gyroscope and a 3-axis accelerator, as shown in. Onboard ETA6089 high-performance Lithium ba-tte-ry charging chip, M 1.25 Lithium ba-tte-ry interface, easy to install lithium ba-tte-ries charge and discharge for long-term usage, as shown in and. Onboard buzzer can be utilized as an audio peripheral, as shown in. Onboard Type-C interface, connect to ESP32-S3 USB for demo programming and log printing, as shown in. Onboard BOOT and RST function buttons, easy to reset and enter the download mode, as shown in and. Onboard function circuit button, can be customized as the power-on button, and can identify single pressing, double pressing, and long pressing, as shown in. Comes with Online Guide to get Screen Display Effects Outline Dimensions ESP32-S3-Touch-LCD- 1.69 ESP32-S3-Touch-LCD- 1.28 ESP32-S3-Touch-LCD- 1.28 -B with CNC Metal Case ESP32-S3-Touch-LCD- 4.3 ESP32-S3-Touch-LCD-7 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 3.7 out of 5 stars 16 4.1 out of 5 stars 27 5.0 out of 5 stars 3 3.6 out of 5 stars 23 3.4 out of 5 stars 23 Price $ 29.75 $29.
