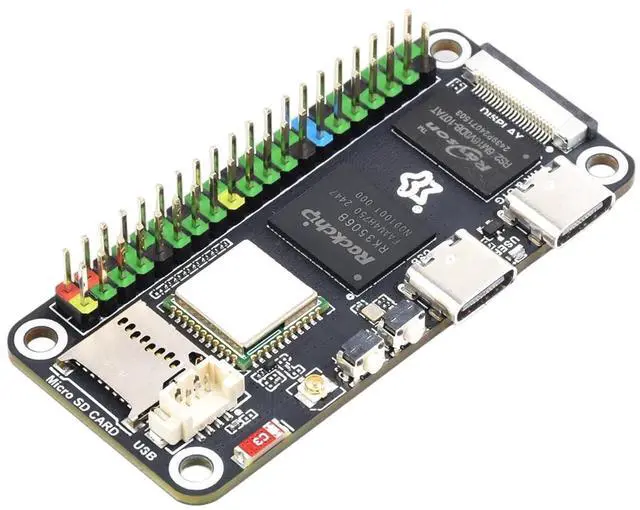

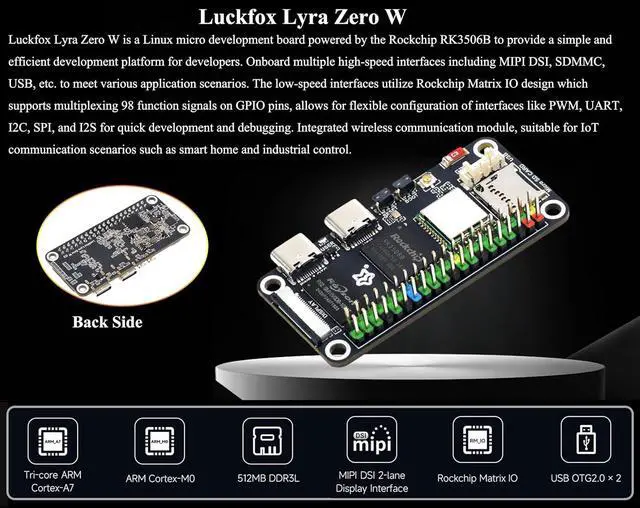

Lyra Zero W Micro Linux Development Board Based On RK3506B Chip, Integrated with Triple-Core Arm Cortex-A7 and Arm Cortex-M0 Processors, Onboard WiFi 6 and BT Module, MIPI DSI 2-Lane Interface,etc.

Luck-fox Lyra Zero W is a Linux micro development board powered by the Rock chip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios.; The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.; Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission. Supports DDR3L memory interface expansion, meeting various expansion needs.; Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single-precision and double-precision floating-point operations. Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration.; The low-speed interfaces adopt Rock chip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible. Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions.
