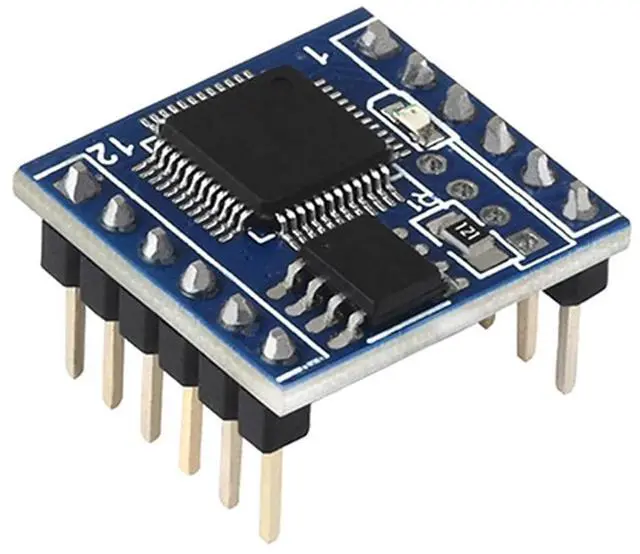

Waveshare TTL UART to CAN Mini Module with TTL and CAN Conversion Protocol, Supports Bi-Directional Transmitting and Receiving, Four Operating Modes

Overview WS-TTL-CAN is a TTL UART to CAN module which is compact and easy to integrate, achieves bidirectional data transmission between TTL UART and CAN interfaces. Onboard high-performance MCU, with TTL and CAN conversion protocol, easily achieving UART to CAN via simple configuration. Features Onboard high-performance MCU and CAN transceiver chip, small in size, low power and easy to integrate Built in TTL and CAN conversion protocol algorithm, enabling data conversion communication between TTL and CAN via simple configuration Supports 3.3V operating voltage on TTL interface, supports both CAN 2.0A (standard frame) and CAN 2.0B (extended frame) on CAN interface Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type via configuration
Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion Supports offline detection and automatic recovery functions Supports device firmware upgrade via TTL, more convenient for firmware update and function customization

Specifications

Power: 3.3V @40mA
MCU: 32-bit high-performance processor CAN port supports CAN 2.0A (standard frame) and CAN 2.0B (extended frame) with ESD protection and anti-surge protection, excellent
EMC performance baudrate: 10kbps~1000kbps TTL port 3.3V operating voltage baudrate: 1200bps~460800bps

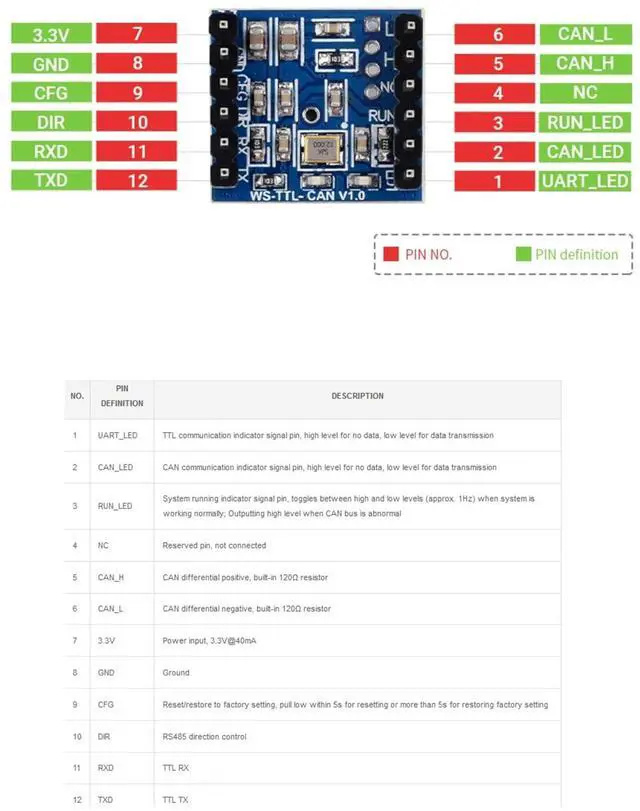

Communication indicators: onboard working indicator, reserved RUN, COM, and CAN indicator signal pins
Other: onboard reset/restore to factory setting pin
Working temperature: -40~85
Humidity range: 5~95% relative humidity Provide Online Development Resources /User
Manual: //bit. ly/48Ubjkg Package Content WS-TTL-CAN x1
