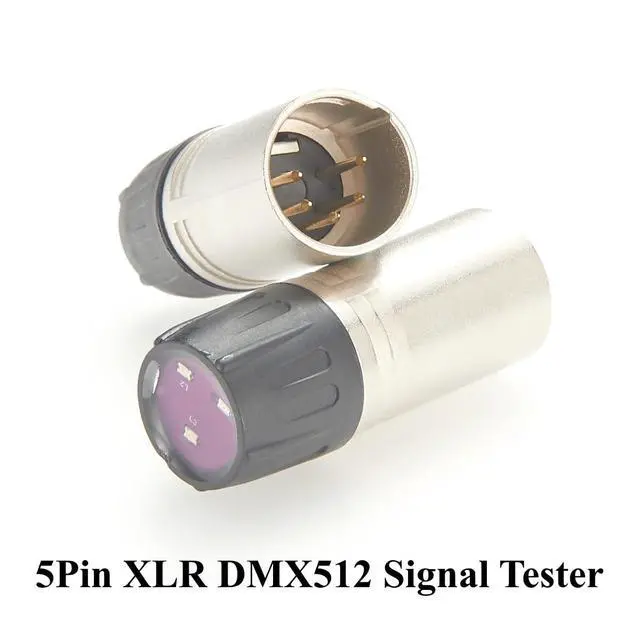

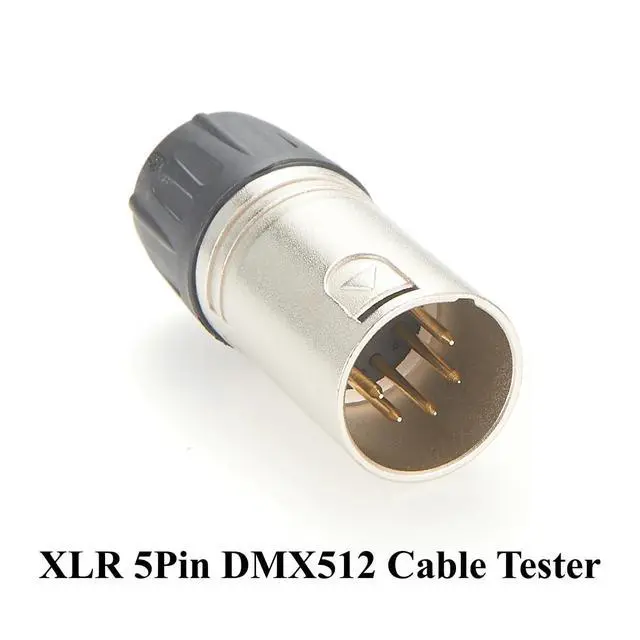

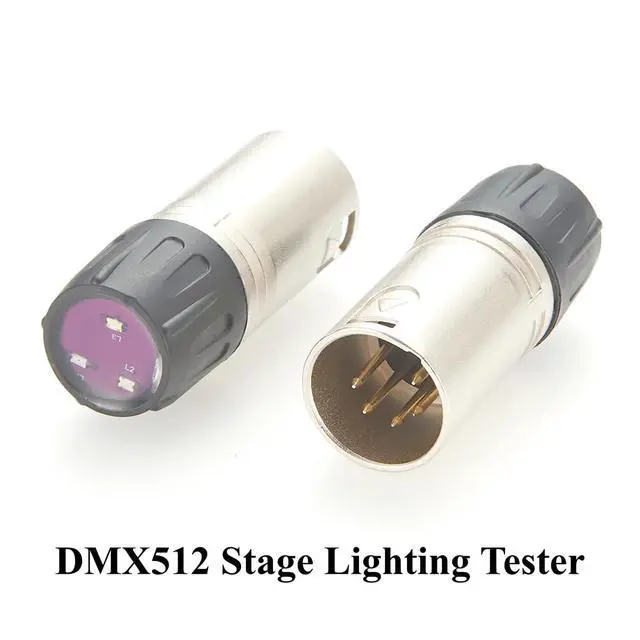

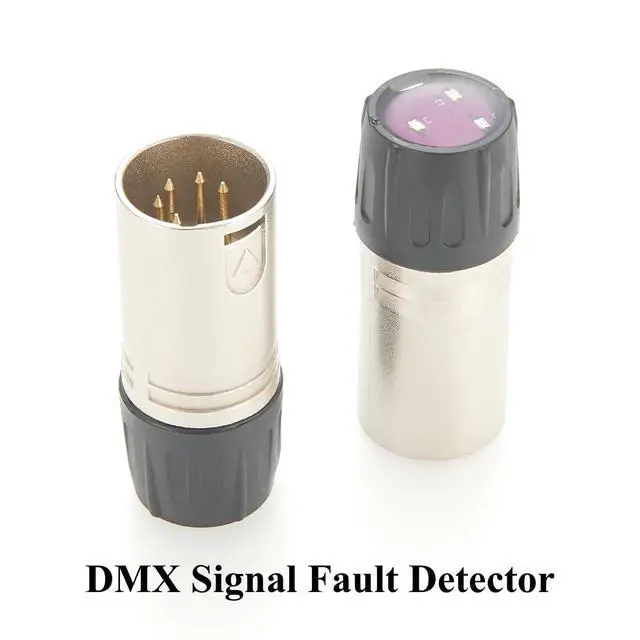

XLR 5Pin Male DMX512 Cable Signal Line Tester DMX Signal Fault Detector Tester for LED Par Light, DJ Lights, Studio Lighting, Live Show (5Pin)
- XLR 5 Pin DMX Cable Tester DMX512 Signal Tester is a tool designed for stage lighting signal detection, aiming to quickly and accurately diagnose and troubleshoot DMX512 signal line faults.; Quick DMX512 Signal Detection DMX512 Analyzer Stage Lighting Tester, can judge the quality of the signal line, help find the fault point, and solve problems such as signal failure and uncontrolled lamps.; LED Indicator Get instant visual feedback with bright LEDs. The status of the DMX 512 signal is intuitively displayed through red, green and blue indicator lights. After inserting the signal line, use the indicator light to instantly display the signal status, easily diagnose faults.; Application 5 Pin XLR DMX Signal Fault Detector is Small size, easy to carry, quick on-site testing. for Stage Lighting, LED Par lights, Studio lighting, LED displays, Beam lights, Live Show, Moving Head, LED Bar, DMX Dimmer Pack, LED Wall Washer and so on.; Note The XLR 5Pin Cable Tester can only be used to test DMX512 light signals, and cannot be used in audio and dimming consoles, otherwise the detector will burn out!!!; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Product
Name: XLR 5Pin DMX512 Signal Tester

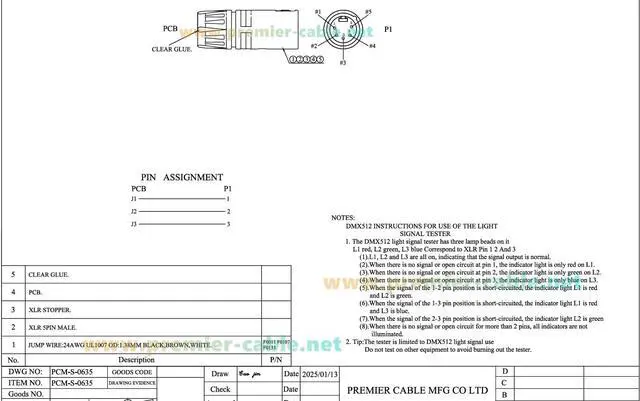

Part No.: PCM-S-0635
Connector Type: XLR 5Pin Male There are three

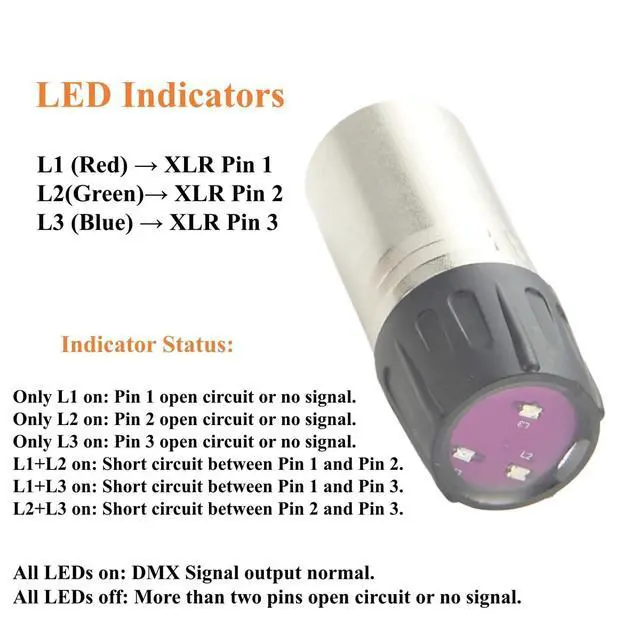

LED indicators on the tester: L1 (Red) XLR Pin 1 L2 (Green) XLR Pin 2 L3 (Blue) XLR Pin 3
Indicator Status: All LEDs on DMX Signal output normal. Only L1 on Pin 1 open circuit or no signal. Only L2 on Pin 2 open circuit or no signal. Only L3 on Pin 3 open circuit or no signal. L1+L2 on Short circuit between Pin 1 and Pin 2. L1+L3 on Short circuit between Pin 1 and Pin 3. L2+L3 on Short circuit between Pin 2 and Pin
3. All LEDs off More than two pins open circuit or no signal.
Notes: For DMX512 light signals only. Please do not test other equipment to avoid damage.
Name: XLR 5Pin DMX512 Signal Tester
Part No.: PCM-S-0635
Connector Type: XLR 5Pin Male There are three
LED indicators on the tester: L1 (Red) XLR Pin 1 L2 (Green) XLR Pin 2 L3 (Blue) XLR Pin 3
Indicator Status: All LEDs on DMX Signal output normal. Only L1 on Pin 1 open circuit or no signal. Only L2 on Pin 2 open circuit or no signal. Only L3 on Pin 3 open circuit or no signal. L1+L2 on Short circuit between Pin 1 and Pin 2. L1+L3 on Short circuit between Pin 1 and Pin 3. L2+L3 on Short circuit between Pin 2 and Pin
3. All LEDs off More than two pins open circuit or no signal.
Notes: For DMX512 light signals only. Please do not test other equipment to avoid damage.
