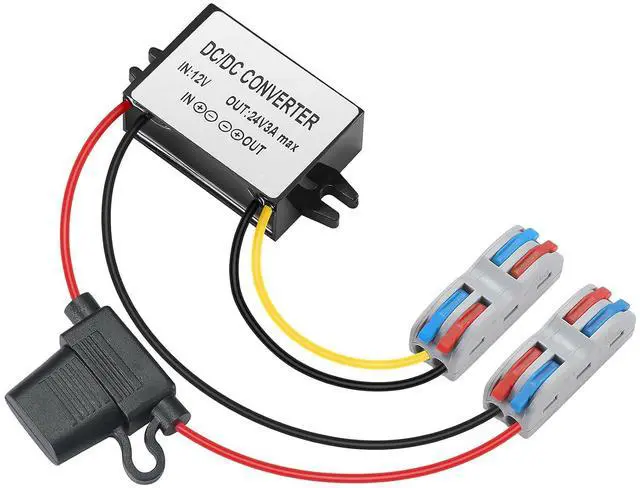

10-22V to 24V 3A 72W Boost Converter IP67- Truck/RV/Solar/Electric Vehicle Charger/Waterproof DC Voltage Booster - Dustproof/Shock Resistant (1-Year Warranty)
Limited time offer, ends 07/26 By EmpressTech

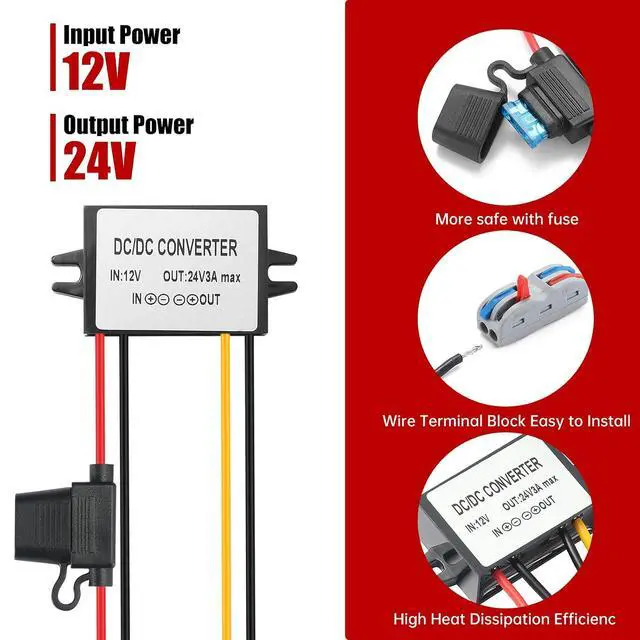

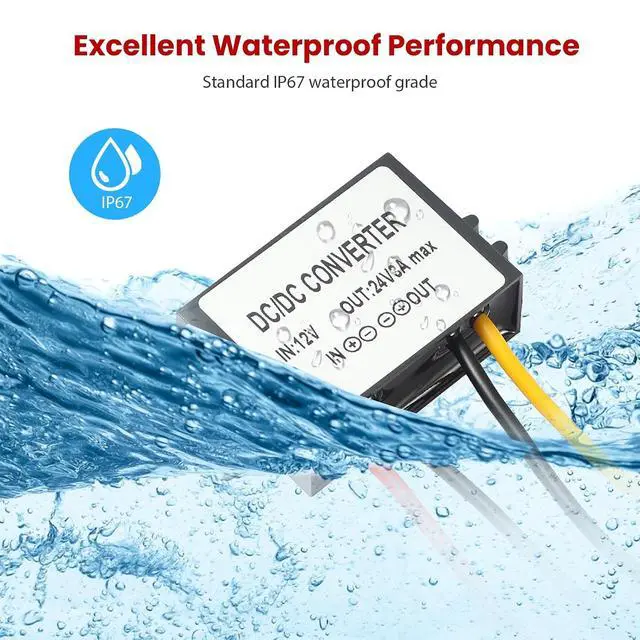

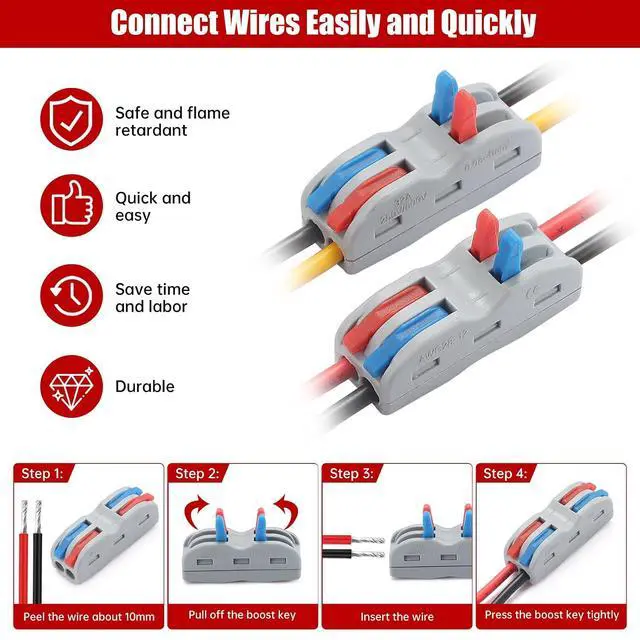

- 12V to 24V Boost Converter: This 12V to 24V voltage converter can convert DC 12V to DC 24V.Energy efficient. Voltage input: DC 10-22V, output: DC 24V.Maximum current: 3A 72W. Note: 1.Please check whether the input voltage is correct before use.2.Please check the positive and negative polarity of the power supply before wiring.; Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage step-up regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.Note: Please connect the positive and negative stages correctly, incorrect connection may cause permanent damage to the product.; Fuse Safety: For the safety of users, our DC-DC converters are equipped with fuses. If the voltage is too high, the circuit is faulty or abnormal, the transformer will stop working, thus protecting the appliance. This also reduces the risk of fire and explosion. Conversion rates up to 95% with correct performance. High quality, good performance and long life.; IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous step-up technology and has IP67 waterproof function.; Wide Range of Applications: DC-DC waterproof step-up converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments and meters, LED light bars, electric fans, DIY and other fields.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

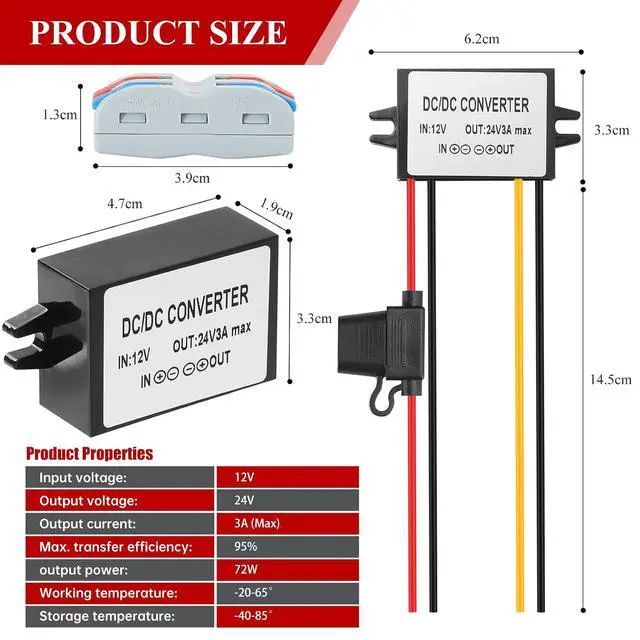

Product description 10-22V DC Step-Up Specification Input range 10-22V Rated input voltage 12V Transfer efficiency 95% Output voltage 24V3A Max Maximumoutput 72W MAX No-load adjustment rate 2% Load regulation 3% Ripple wave 300mVP-P DC Voltage Regulator Safety Manual 1. The load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will cause damage to the power regulator. 2. If the ambient temperature is too high, the power should be reduced accordingly, and the stability of the power supply should be higher when operating at low temperatures.

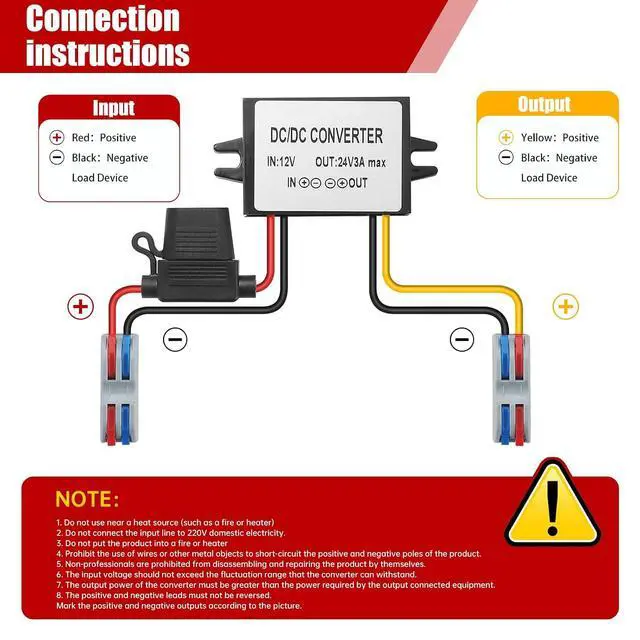

3. Do not use the device near a heat source such as fire or heater. 4. Do not connect the input cable to the 220 V household mains. 5. Do not place the appliance near a fire or heater. 6. Do not allow non-professionals to disassemble and service the appliance. 7. The input voltage should not exceed the fluctuation range that the converter can withstand. 8. The output power of the converter must be greater than the power required by the connected devices. 9. The positive and negative leads must not be reversed.
3. Do not use the device near a heat source such as fire or heater. 4. Do not connect the input cable to the 220 V household mains. 5. Do not place the appliance near a fire or heater. 6. Do not allow non-professionals to disassemble and service the appliance. 7. The input voltage should not exceed the fluctuation range that the converter can withstand. 8. The output power of the converter must be greater than the power required by the connected devices. 9. The positive and negative leads must not be reversed.
