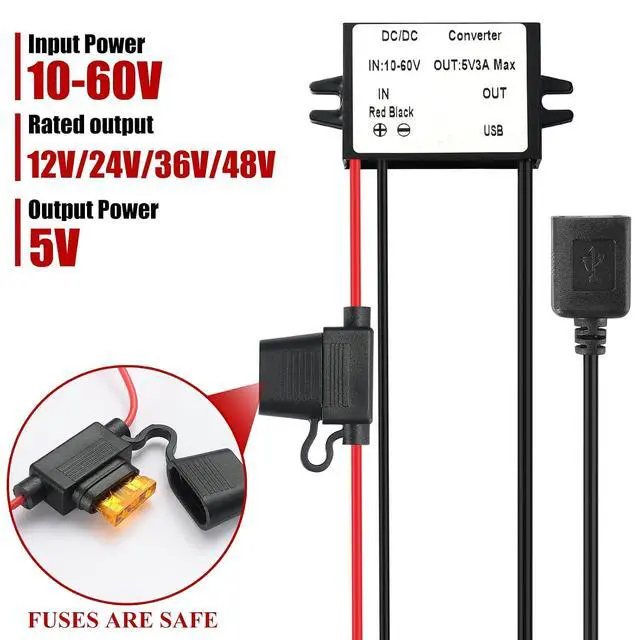

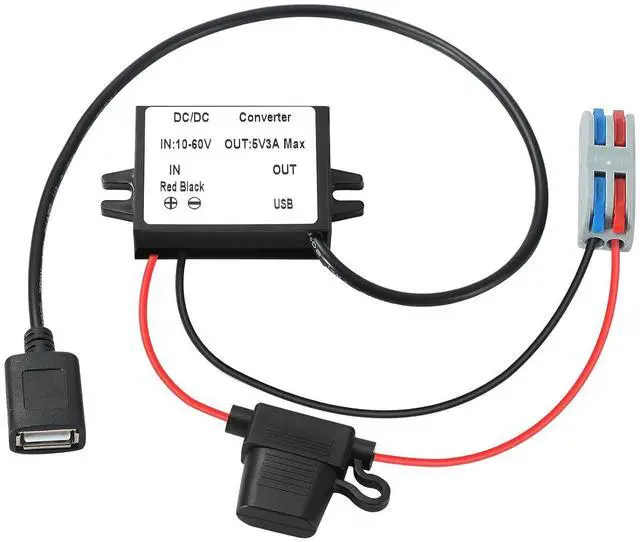

DC 10-60V to 5V 3A Buck Converter,12V 24V 36V 48V Step Down to 5V 3A 15W max DC Converter,IP67 Waterproof Voltage regulator power supply Buck Transformer Module Adapter for Truck,Screen,Car etc.

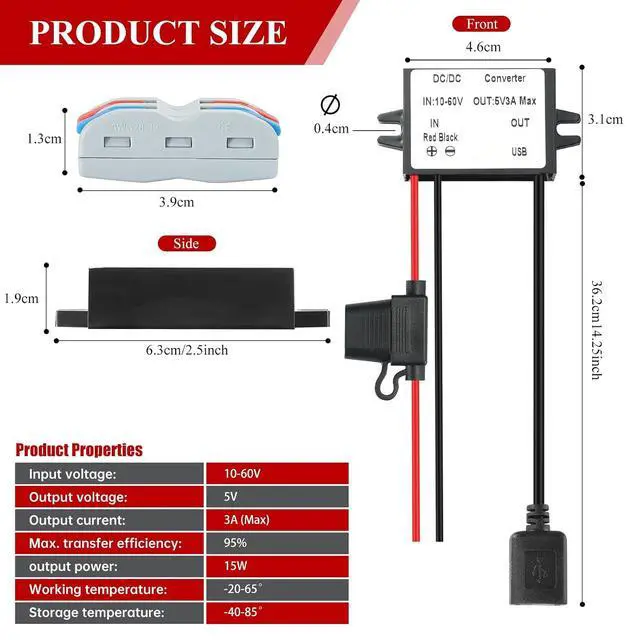

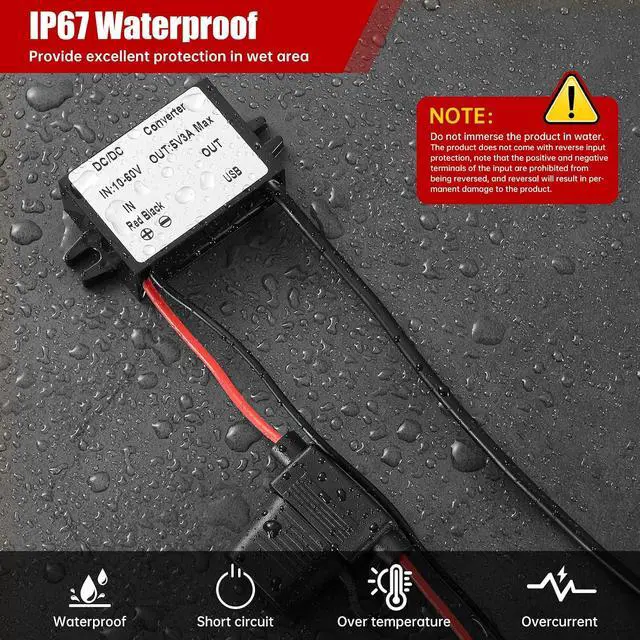

DC 10-60V to 5V 3A Step Down Converter parameters Input parameter Input range 10-60V Rated input voltage12/24/36/48V Transfer efficiency95% Incoming line15-16CM(R+ B-) Output voltage5V Output3A MAX Maximumoutput15W MAX No-load adjustment rate2% Load regulation3% Quiescent dissipation20MA Ripple wave200mVP-P The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 F electrolytic capacitor and 0.1 F ceramic capacitor. Outlet line15-16CM(Y+ B-)) Enviromental Parameter Working temperature-20-65° Storage temperature-40-85° Working humidity10%-90%RH Defencive Function Classification of waterproofIP67 Other Weight 0.11 lb Size 1.81 * 1.26 * 0.71 inch Heat dissipation methodnatural heat dissipation Matters need Attention 1. The products are stored in a dry and cool place with a temperature range of-40 ~80, and avoid contact with corrosive substances, and stay away from fire and heat sources.

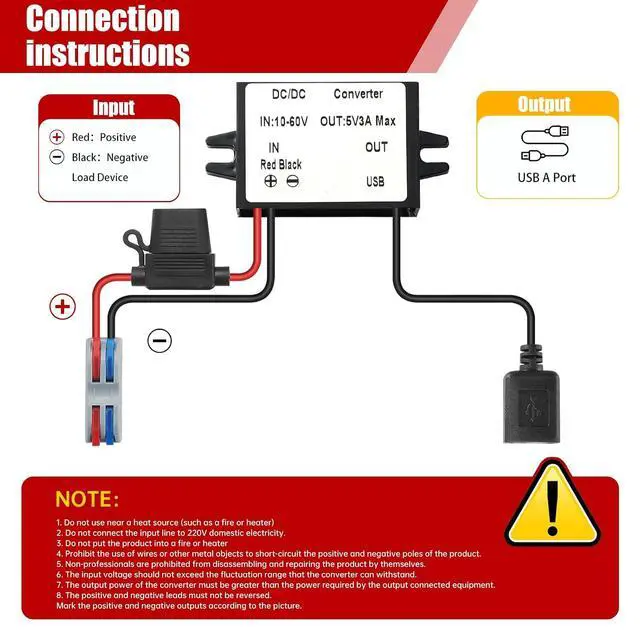

2. Do not use it near a heat source (such as a fire or a heater). 3. Do not connect the input line to 220V electricity. 4. Do not put the product into the fire or heat it. 5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects. 6. Non-professional personnel are prohibited to disassemble and repair by themselves.
