AC to DC 5V 3A Power Supply IP67 Waterproof 15W Converter - Suitable for Buildings, Trucks, Oceans, Outdoors, Agriculture, and RVs, Suitable for Harsh environments

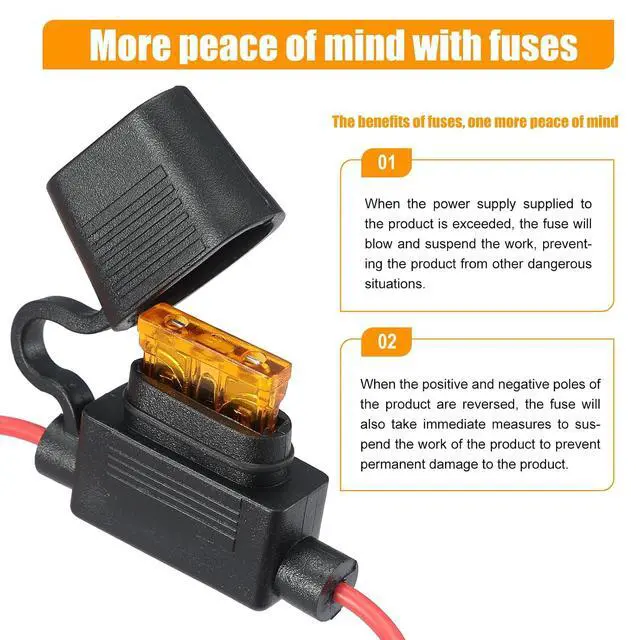

- AC/DC to DC5V3A current transformerInput voltage: AC 10-26V/DC 10-40V; Output voltage: DC 5V; Output current: Maximum 3A; Output power: 15 W. CAUTION: The load connected to the output of the converter should not exceed the specified maximum load. Any higher load will damage the buck converter.; Practical connection terminalAC/DC current transformer is equipped with a lever nut connection for quick connection. No wiring is required, which reduces wiring time and is safe at the same time. Note: Remove about 10 mm of insulation from the wires and insert them into the terminals.; Waterproof protectionThe DC power converter is IP86 waterproof and has reverse polarity protection/short circuit protection/overtemperature protection. The converter uses non-isolated synchronous buck technology and operates from -20° to 65° with ambient temperature fluctuation. Note: When the ambient temperature exceeds 40 , please reduce the utilization rate of the product.; Fuse cover for more safetyThe product is equipped with a fuse to ensure good safety and protect the product and your safety. The transformer is molded and also has a dustproof and shockproof function.; Widely UsedIt can be widely used in integrated wiring for fire monitoring and signaling, buses, minibuses, large trucks, automobiles, solar power generation, bus displays, cab displays, car radios, car radios, LCD TVs, LEDs and more.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

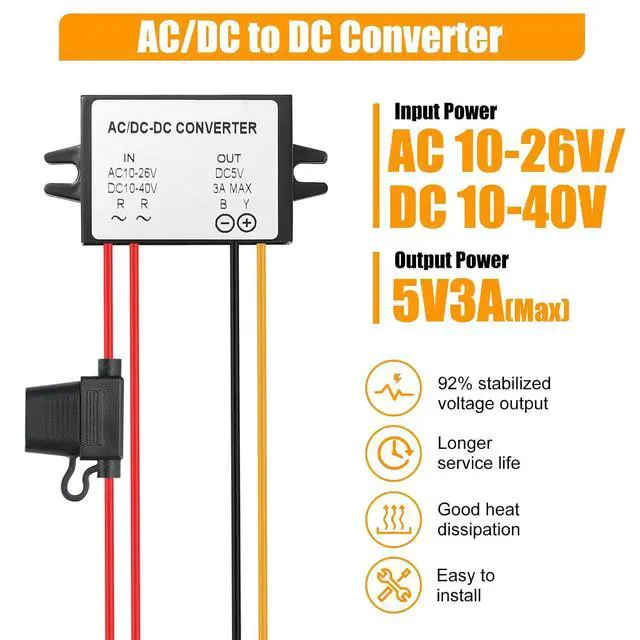

AC/DC to DC5V3A Power Converter
Output: DC 5V 3A (max)

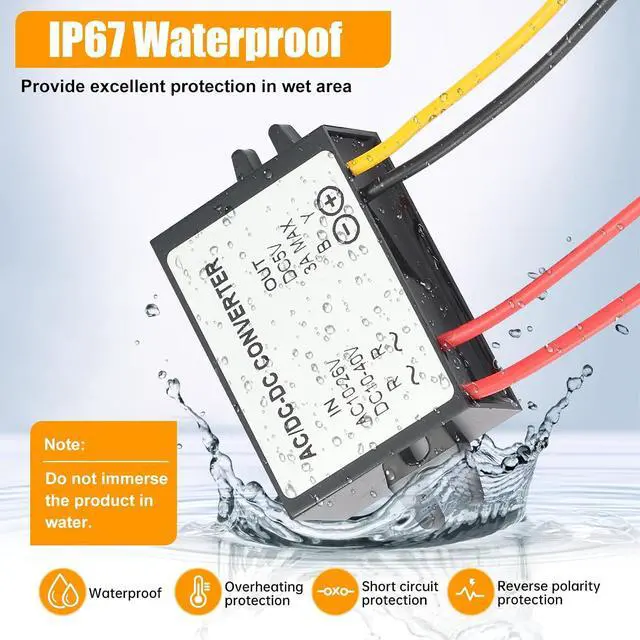

Watertightness: IP68
Operating temperature: -20°- 65
Storage temperature: -40°- 85
Material: ABS plastic 5V3A voltage regulator

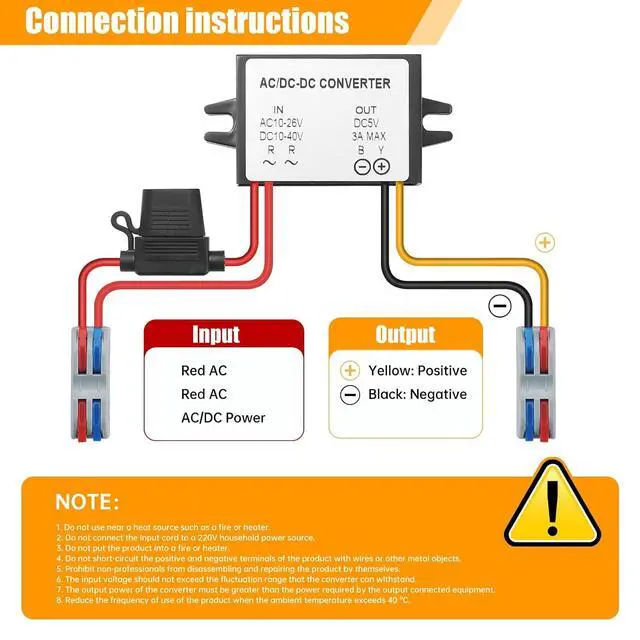

Connections:
Input: Red (~) Red (~)
Output: Yellow (+) Black (-)
Protection: waterproof protection, overheating protection, short circuit protection, reverse polarity protection Dc Voltage Regulator Safety Manual 1 The load connected to the output of the voltage regulator should not be greater than the maximum load power, any greater load will damage the voltage regulator. 2If the ambient temperature is too high, the power should be reduced accordingly. Operation at low temperatures is a guarantee for long-term reliable operation of the power supply. 3Do not use the device near heat sources such as fire or heaters. 4. do not connect the input cable to the 220 V household power supply. (5) Do not use the appliance near sources of fire or heat. (6) Disassembly and maintenance of the appliance by non-professionals is prohibited. 7 The input voltage must not exceed the fluctuation range of the converter. 8 The output power of the converter must be greater than the power required by the connected devices. Package Contains 1x AC/DC to DC 5V 3A 15W voltage converter

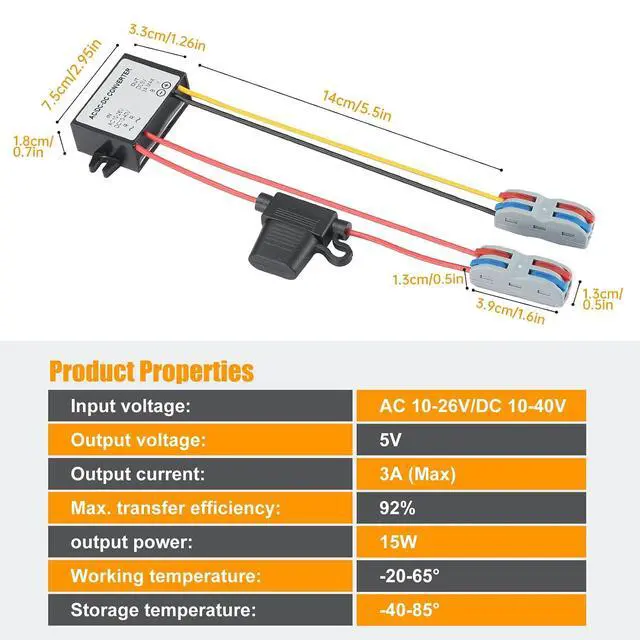

Specifications
Input: AC 10-26V / DC 10-40VOutput: DC 5V 3A (max)
Watertightness: IP68
Operating temperature: -20°- 65
Storage temperature: -40°- 85
Material: ABS plastic 5V3A voltage regulator
Connections:
Input: Red (~) Red (~)
Output: Yellow (+) Black (-)
Protection: waterproof protection, overheating protection, short circuit protection, reverse polarity protection Dc Voltage Regulator Safety Manual 1 The load connected to the output of the voltage regulator should not be greater than the maximum load power, any greater load will damage the voltage regulator. 2If the ambient temperature is too high, the power should be reduced accordingly. Operation at low temperatures is a guarantee for long-term reliable operation of the power supply. 3Do not use the device near heat sources such as fire or heaters. 4. do not connect the input cable to the 220 V household power supply. (5) Do not use the appliance near sources of fire or heat. (6) Disassembly and maintenance of the appliance by non-professionals is prohibited. 7 The input voltage must not exceed the fluctuation range of the converter. 8 The output power of the converter must be greater than the power required by the connected devices. Package Contains 1x AC/DC to DC 5V 3A 15W voltage converter
