15W 5V 3A AC to DC Converter, AC 12V/24V to DC 5V Waterproof Power Supply Converter, DC 12V/24V/36V/48V Step Down to 5V Voltage Regulator for Cars, CCTV, Solar, Automotive, Marine
- AC to DC Buck Converter : Input voltage range:AC 10-36V; Rated input voltage: DC12/24/36/48V; Output voltage: 5V; Output current: 3A MAX; Output power: 15W MAX.; Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage step-down regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.; FUSE PROTECTION: AC10-36V AC12 24 to DC5 converter is equipped with over-current/short-circuit/over-temperature protection fuse to ensure good safety during conversion work.; IP67 Waterproof Function: The AC-DC transformer adopts non-isolated synchronous step-down technology and has IP67 waterproof function.; Wide Application: AC-DC waterproof AC to DC converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED light bars, electric fans and DIY.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AC/DC to DC 5V 3A Power Converter
Output: DC 5V 3A (max)
Watertightness: IP68
Operating temperature: -20°- 65
Storage temperature: -40°- 85
Material: ABS plastic 5V 3A voltage regulator

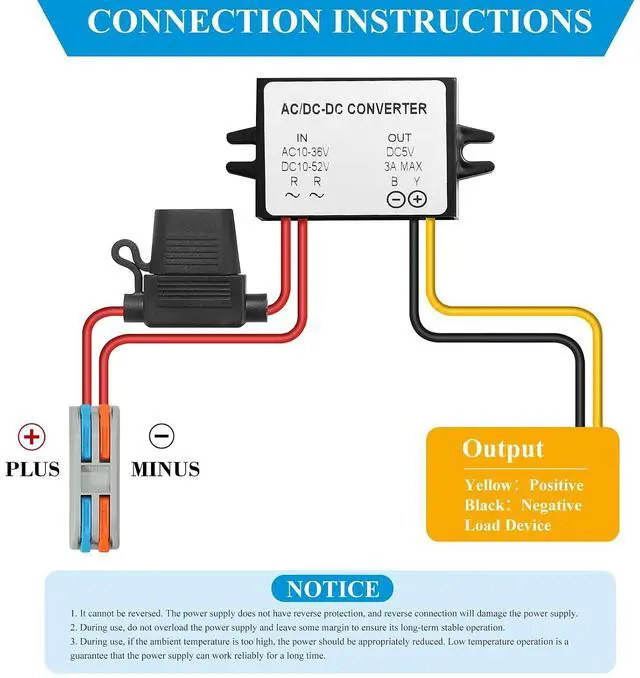

Connections:
Input: Red (~) Red (~)
Output: Yellow (+) Black (-)
Protection: waterproof protection, overheating protection, short circuit protection, reverse polarity protection Dc Voltage Regulator Safety Manual 1 The load connected to the output of the voltage regulator should not be greater than the maximum load power, any greater load will damage the voltage regulator. 2If the ambient temperature is too high, the power should be reduced accordingly. Operation at low temperatures is a guarantee for long-term reliable operation of the power supply. 3Do not use the device near heat sources such as fire or heaters. 4 do not connect the input cable to the 220 V household power supply. 5 Do not use the appliance near sources of fire or heat. 6 Disassembly and maintenance of the appliance by non-professionals is prohibited. 7 The input voltage must not exceed the fluctuation range of the converter. 8 The output power of the converter must be greater than the power required by the connected devices. Package Contains 1x AC/DC to DC 5V 3A 15W voltage converter
Specifications
Input: AC 10-36V / DC 10-52VOutput: DC 5V 3A (max)
Watertightness: IP68
Operating temperature: -20°- 65
Storage temperature: -40°- 85
Material: ABS plastic 5V 3A voltage regulator
Connections:
Input: Red (~) Red (~)
Output: Yellow (+) Black (-)
Protection: waterproof protection, overheating protection, short circuit protection, reverse polarity protection Dc Voltage Regulator Safety Manual 1 The load connected to the output of the voltage regulator should not be greater than the maximum load power, any greater load will damage the voltage regulator. 2If the ambient temperature is too high, the power should be reduced accordingly. Operation at low temperatures is a guarantee for long-term reliable operation of the power supply. 3Do not use the device near heat sources such as fire or heaters. 4 do not connect the input cable to the 220 V household power supply. 5 Do not use the appliance near sources of fire or heat. 6 Disassembly and maintenance of the appliance by non-professionals is prohibited. 7 The input voltage must not exceed the fluctuation range of the converter. 8 The output power of the converter must be greater than the power required by the connected devices. Package Contains 1x AC/DC to DC 5V 3A 15W voltage converter
