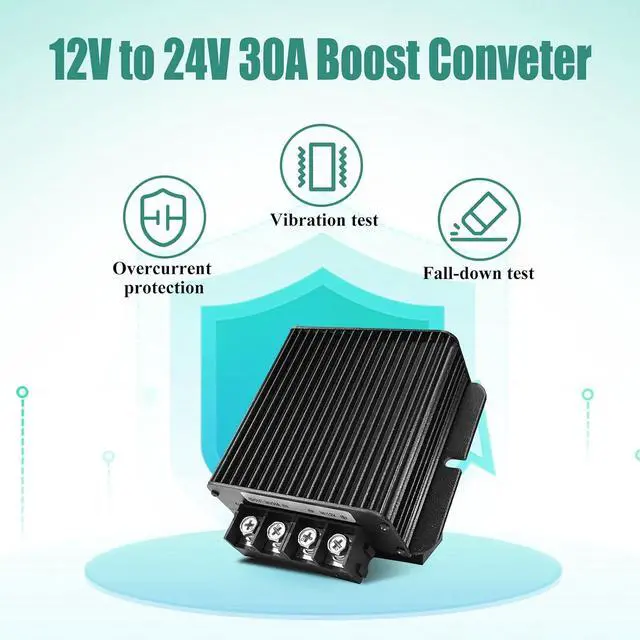

DC 12V to 24V Voltage Converter 30A 720W Voltage Converter 24V Voltage Regulator Boost Module for Radios,Motors,RVs
- 720W High Power: It can convert the DC 12V input voltage to a 24V output voltage with an output current of 30A and a maximum output of 720W.; Rugged and Durable: The 24 volt DC power regulator converter features die-cast aluminum housing, silicone potting technology, built-in over-voltage, over-current, and over-temperature protection to achieve high stability and impact resistance, and extend the service life of the device. With LED power indicator.; Safe and reliable: The DC/DC converter adopts industrial-grade main control chips and components, which are more stable and have a conversion efficiency of up to 95%, and the high efficiency results in energy savings and reduces maintenance costs, making the overall cost cheaper.; Application Scenarios: DC 12V to 24V transformers are widely used in new energy, industrial equipment, camping, surveillance, LED lighting equipment and other fields.; Tips: Before choosing a suitable converter, you should first understand the power, parameters, and labels of the load device, and the device must work for a long time, and should choose a power module with higher power. The actual power of the load device should be 30% to 90% of the rated power.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

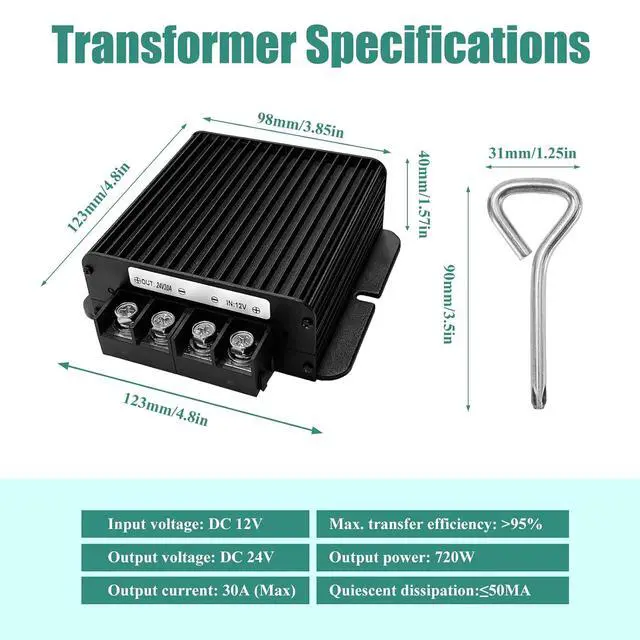

Specifications
: InputRated Voltage: 12V DC
Input Voltage Range: 10V-22V DC
Output Voltage: DC 24V 30A
Output Rated Power: 720W
Efficiency: 95% Static
Power Consumption: 100mA
Ripple/Noise: 500 mVp
Operating Temperature: -20~65°C
Storage temperature: -40~85°C
Weight: 650g
Size: 135*120*40 cm
Properties:
1. Industrial-grade DC 12V to 24V boost converter, efficiency up to 95%.
2. Epoxy resin potting, cooling by free air convection; Shock protection.
3.
Protection: over-current, over-temperature and short circuit.
Hint:
1. The load connected to the output of the converter should not exceed the maximum specified load power. Higher load ratings can damage the power converter.

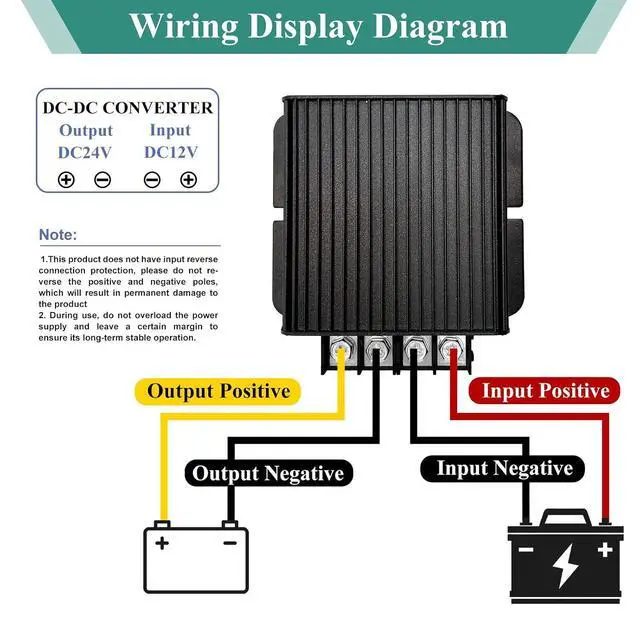

2. Connect the converter and your device according to the supplied schematic.
3. Never reverse polarity.
