60W DC-DC Buck Converter 9V-32V to 12V 5A, Waterproof Car Power Supply, Voltage Regulator for CCTV, Solar Panel, RV, Truck, Audio System

DC/DC 9V 12V 22V 24V 32V to 12V/5A
DC Voltage regulator Brand: MZHOU
Input Voltage: DC 12V
Input Voltage Range: DC 9-32V
Efficiency: Over 90%When 24V input
Output voltage: DC 12V Output current5A max Output power60W

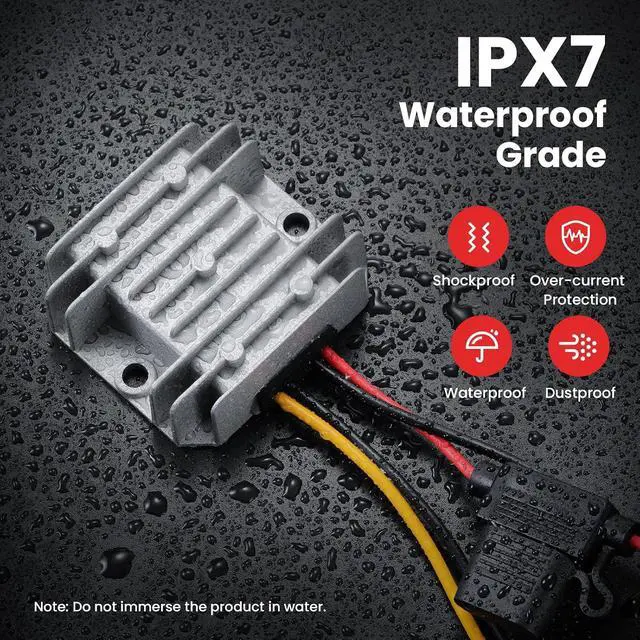

max Waterproof rating: IPX-7
Working temperature: -25 +65
Working Humidity: 095%RH Storage temperature-40 +85
Storage Humidity: 095%RH

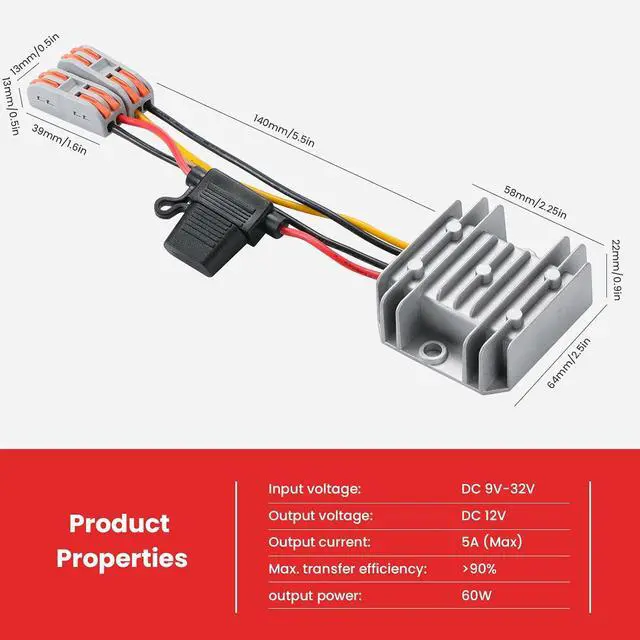

L*W*H: 66*60*22MM
Net weight: 100G

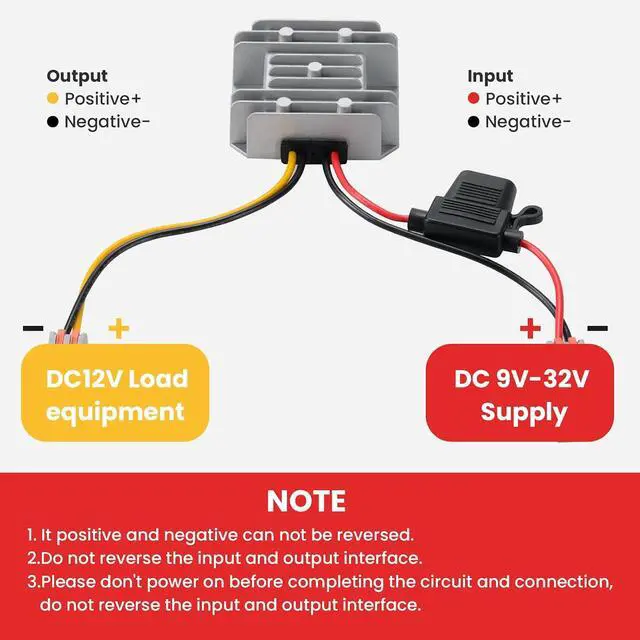

12V regulator connection:
Input: red(+) black(-)
Output: yellow(+) black(-) Protection against transient high voltage at input, protection against over current at output, protection against over temperature at chip. DC voltage regulator safety manual 1. the load connected to the output of the power regulator should not be higher than the MAX LISTED LOAD POWER, any higher load will cause damage to the power regulator. 2. in the process of use, if the ambient temperature is too high, should be appropriate to reduce the use of power, low-temperature operation is a guarantee that the power supply can work reliably for a long time. Cautions
1. Can not be reversed, the power supply does not have reverse connection protection, please connect the wires correctly, reverse connection will damage the power supply
2. The use of the process can not be overloaded load, leave a margin for the power supply to ensure long-term stability of the power supply work
3. In the process of use, if the ambient temperature is too high should be appropriate to reduce the power to use, low-temperature work is the power supply can be long-term reliable work to ensure that properly functioning. Package Includes 1x DC to DC 9-32V Voltage Stabilized Converter 12V 5A Please feel free to contact us if you have any questions with installation or quality.
