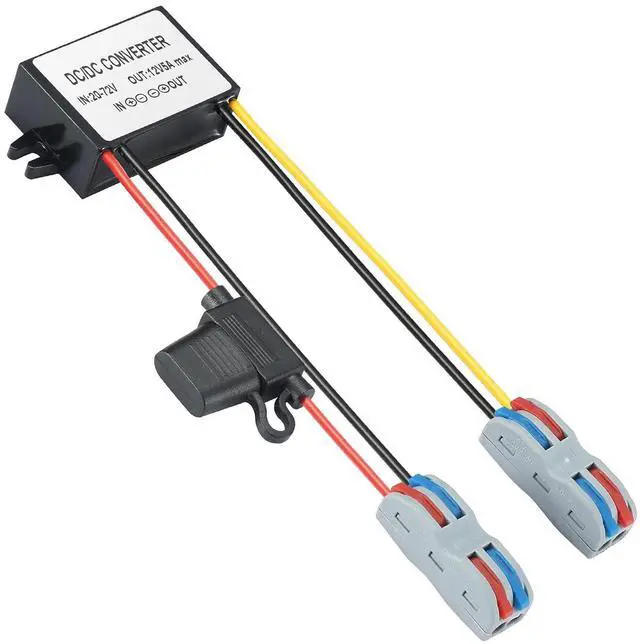

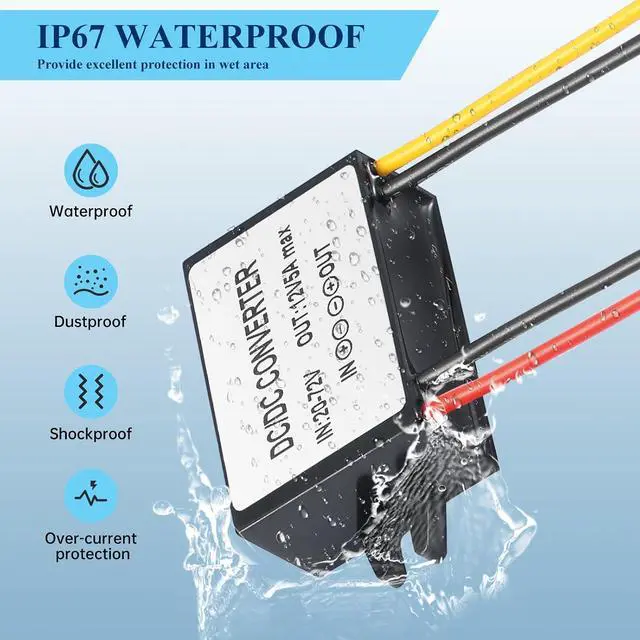

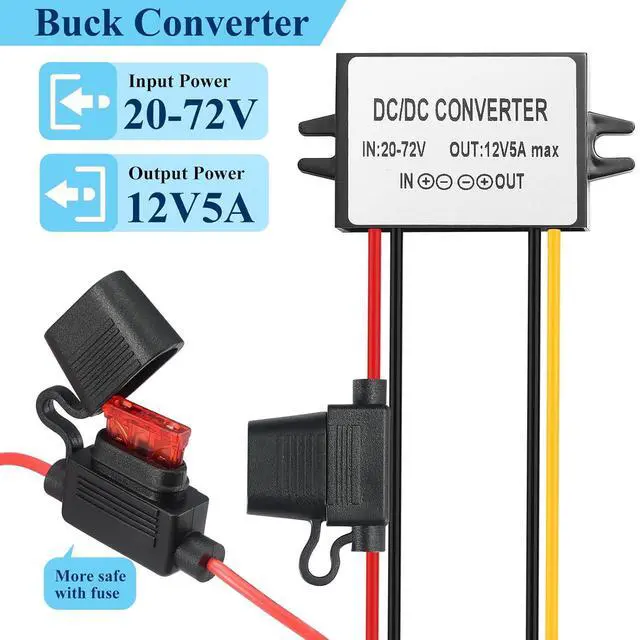

IP67 Waterproof DC-DC Converter 17-72V to 12V 5A 60W - Voltage Regulator for Trucks, Tractors, Solar Systems (Dust/Shock Proof)

DC 17-72V to 12V

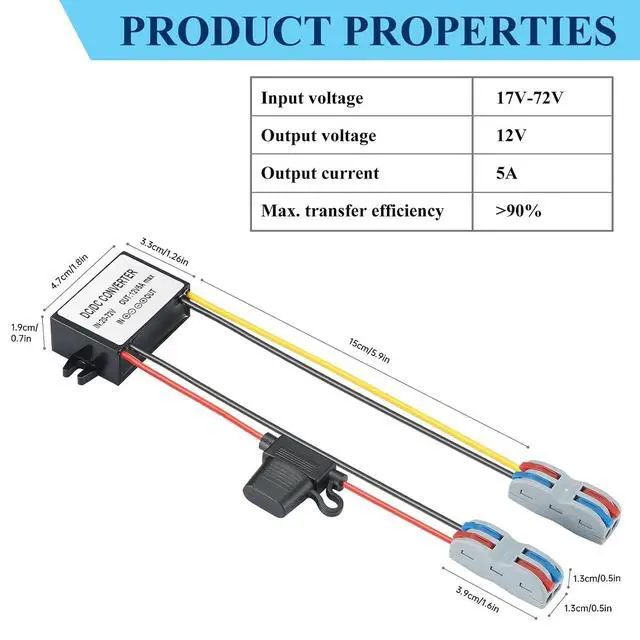

Step Down Converter parameters: Input parameter Input range 17-60V Rated input voltage24/36/48V Transfer efficiency95% Incoming line15-16CM(R+ B-) Output voltage12V Output5A MAX Maximumoutput60W MAX No-load adjustment rate2% Load regulation3% Quiescent dissipation15MA Ripple wave200mVP-P The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 F electrolytic capacitor and 0.1 F ceramic capacitor. Outlet line13-14CM(Y+ B-) Enviromental Parameter working temperature-20-65° Storage temperature-40-85° Working humidity10%-90%RH Defencive function classification of waterproofIP67 Other Weight 0.62 lb Size 1.81 * 1.26 * 0.71 inch Heat dissipation methodnatural heat dissipation Matters need Attention 1. The products are stored in a dry and cool place with a temperature range of-40 ~80, and avoid contact with corrosive substances, and stay away from fire and heat sources. 2. Do not use it near a heat source (such as a fire or a heater). 3. Do not connect the input line to 220V electricity. 4. Do not put the product into the fire or heat it. 5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects. 6. Non-professional personnel are prohibited to disassemble and repair by themselves.
