12V 3A DC Power Supply IP67 Level -36W Waterproof Transformer - dustproof and Shockproof - Suitable for Outdoor Closed-Circuit Television Cameras, Ships, and RVs for Wind and rain Protection
- 24V to 12V DC step-down converter Input voltage: DC 15-35V; output voltage: DC 12V (fixed output); output current: 3A; output power: 36W. CAUTION: The load connected to the output of the converter should not exceed the specified maximum load. Any larger load will damage the buck converter.; EASY INSTALLATIONThe 12V voltage regulator is equipped with a lever nut connector for quick connection. No bonding wires are required, which reduces wiring time. Note: Strip 0.4 inches (10 mm or so) of insulation from the wires and insert them into the connector.; Intelligent ProtectionThe buck converter is equipped with an intelligent chip with intelligent overcurrent/short circuit/overheat protection.To ensure the safety of the device, the converter is equipped with a fuse.; Efficient heat dissipationThe waterproof transformer adopts non-isolated synchronous step-down technology, the transformer will not heat up when it is working, which is safer. The transformer is dustproof, waterproof and vibration-resistant because it is potted.; Wide ApplicationIt can be widely used in car audio, monitoring system, advertising screen, medical equipment, instrumentation, LED light bar, electric fan and DIY etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
12V

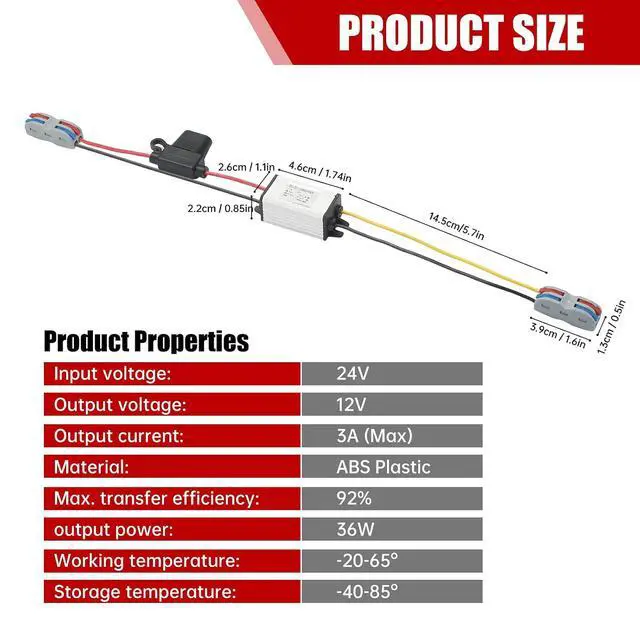

DC Step-Down Specification:
Input: DC 15-35V
Output: DC 12V 3A (max)
Watertightness: IP68
Operating temperature: -20°- 65
Storage temperature: -40°- 85
Material: ABS plastic 12V3A voltage regulator

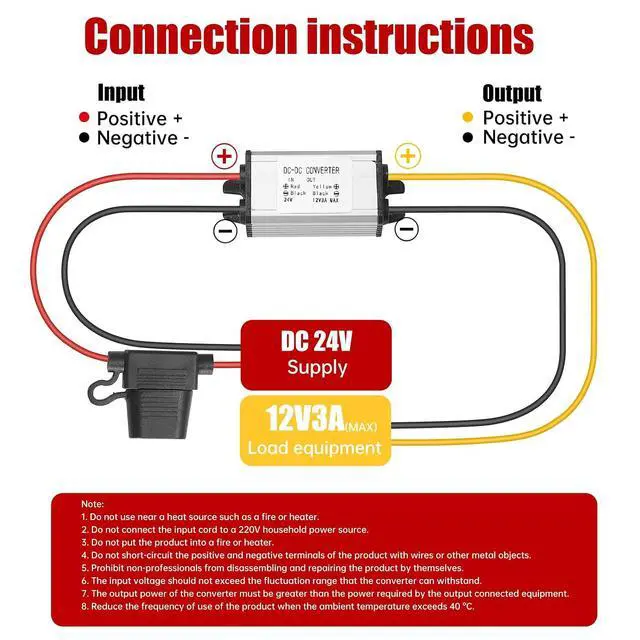

Connections:
Input: Red (+) Black (-)
Output: Yellow (+) Black (-)
Protection: Short circuit protection, overtemperature protection, overcurrent protection DC Voltage Regulator Safety Manual 1. the load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will damage the power regulator.
2. If the ambient temperature is too high, the power should be reduced accordingly. Working at low temperatures is a guarantee for the long-term reliable operation of the power supply. 3. do not use the device near heat sources such as fire or heaters.
4. Do not connect the input cable to the 220 V household mains. 5. 5. do not place the appliance near fires or heaters. 6. the appliance must not be disassembled and maintained by non-professionals. 7. the input voltage should not exceed the fluctuation range of the converter. 8.
8. The output power of the converter must be greater than the power required by the connected appliances. Package Contains 1x 24V to 12V 3A 36W step-down converter
DC Step-Down Specification:
Input: DC 15-35V
Output: DC 12V 3A (max)
Watertightness: IP68
Operating temperature: -20°- 65
Storage temperature: -40°- 85
Material: ABS plastic 12V3A voltage regulator
Connections:
Input: Red (+) Black (-)
Output: Yellow (+) Black (-)
Protection: Short circuit protection, overtemperature protection, overcurrent protection DC Voltage Regulator Safety Manual 1. the load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will damage the power regulator.
2. If the ambient temperature is too high, the power should be reduced accordingly. Working at low temperatures is a guarantee for the long-term reliable operation of the power supply. 3. do not use the device near heat sources such as fire or heaters.
4. Do not connect the input cable to the 220 V household mains. 5. 5. do not place the appliance near fires or heaters. 6. the appliance must not be disassembled and maintained by non-professionals. 7. the input voltage should not exceed the fluctuation range of the converter. 8.
8. The output power of the converter must be greater than the power required by the connected appliances. Package Contains 1x 24V to 12V 3A 36W step-down converter
