9-40V to 12V 3A Power Converter - Waterproof 36W Voltage Transformer for Truck/RV, CCTV Systems (CE Certified)
Limited time offer, ends 07/26 By EmpressTech

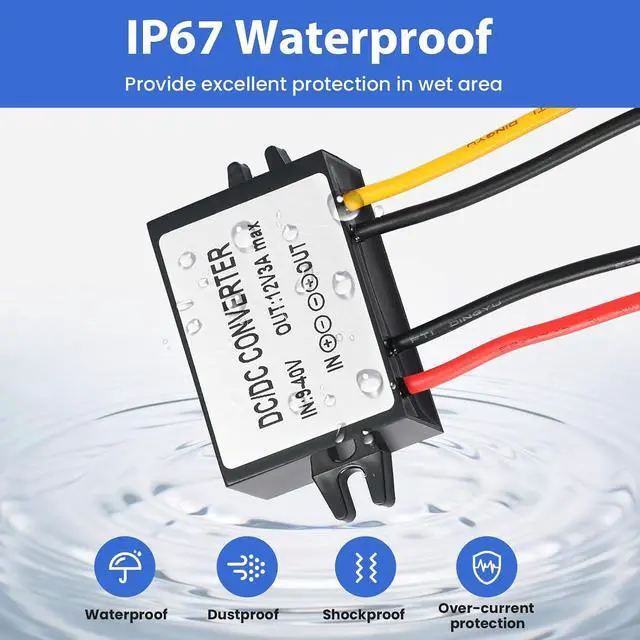

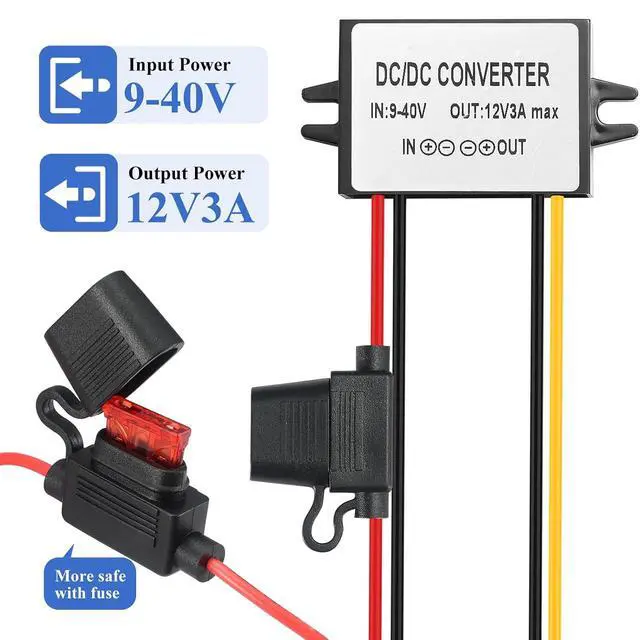

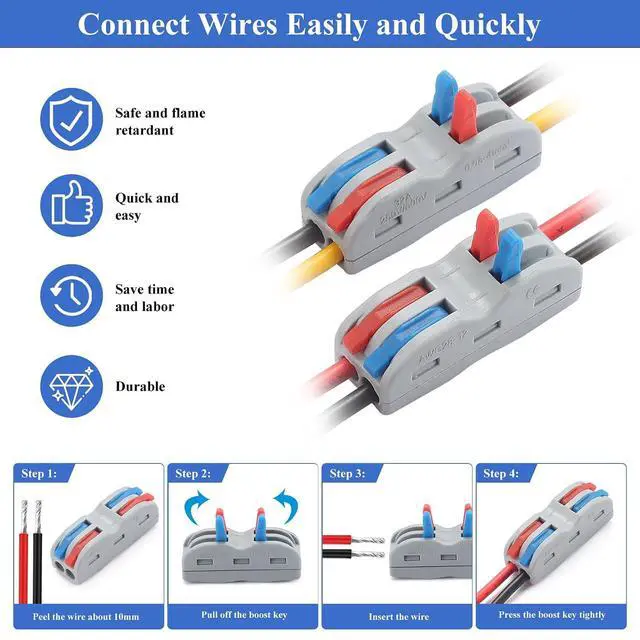

- Voltage Regulator Converter : Input voltage range: 9-40V; Rated input voltage: 12/24V; Output voltage: 12V; Output current: 3A MAX; Output power: 36W MAX.; Easy to Use : Strip the wires about 10 mm (0.4 inches) and insert them into the terminals. This voltage voltage regulator is equipped with a lever nut connection for quick connection. No wiring is required, reducing wiring time.; Fuse Protection Function: The 9-40V to 12V3A voltage converter is equipped with over-current/short-circuit/over-temperature protection fuses to ensure good safety during conversion work.; IP67 Waterproof Function: The DC-DC transformer adopts non-isolated synchronous voltage converter technology and has IP67 waterproof function.; Wide Range of Applications: DC-DC waterproof voltage converter is widely used in cars, trucks, surveillance systems, navigators, car recorders, advertising screens, medical equipment, instruments, LED strips, electric fans, DIY and other fields.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

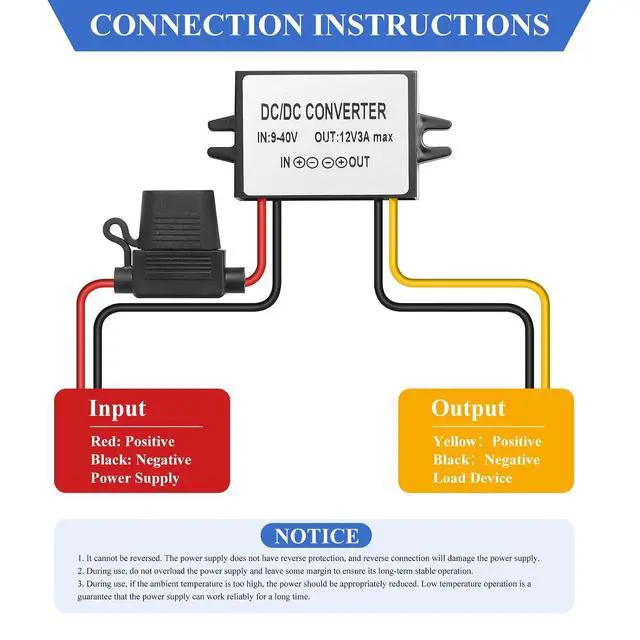

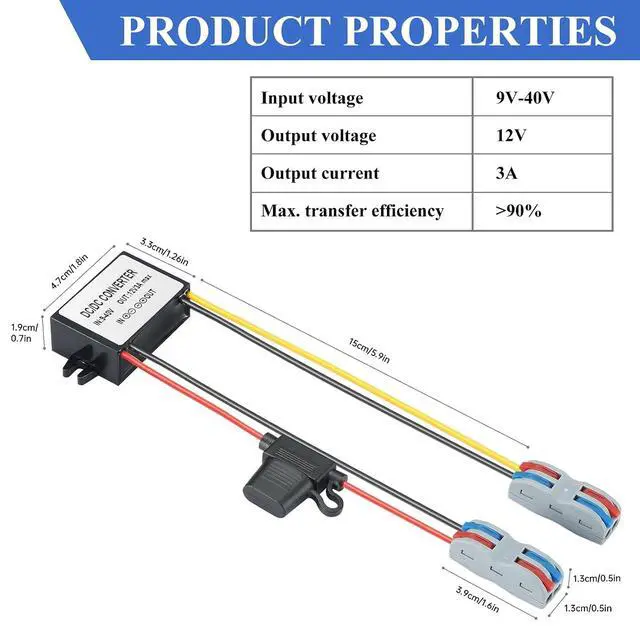

Product description 9-40V DC Voltage Regulator Specification Input range 9-40V Rated input voltage 12V/24V/36V Transfer efficiency 95% Output voltage 12V 3A Max Maximumoutput 36W MAX No-load adjustment rate 2% Load regulation 3% Ripple wave 300mVP-P DC Voltage Regulator Safety Manual 1. The load connected to the output of the power regulator should not be higher than the maximum load power, any higher load will cause damage to the power regulator. 2. If the ambient temperature is too high, the power should be reduced accordingly, and the stability of the power supply should be higher when operating at low temperatures.
3. Do not use the device near a heat source such as fire or heater. 4. Do not connect the input cable to the 220 V household mains. 5. Do not place the appliance near a fire or heater. 6. Do not allow non-professionals to disassemble and service the appliance. 7. The input voltage should not exceed the fluctuation range that the converter can withstand. 8. The output power of the converter must be greater than the power required by the connected devices. 9. The positive and negative leads must not be reversed.
3. Do not use the device near a heat source such as fire or heater. 4. Do not connect the input cable to the 220 V household mains. 5. Do not place the appliance near a fire or heater. 6. Do not allow non-professionals to disassemble and service the appliance. 7. The input voltage should not exceed the fluctuation range that the converter can withstand. 8. The output power of the converter must be greater than the power required by the connected devices. 9. The positive and negative leads must not be reversed.
