DC 12V 24V Step Down to 5V 3A Converter, DC-Dc Converter 8-32V to 5V 15W - Voltage Regulator for Golf Carts, Trucks, RVs, Solar Energy, Ships, and Off-Road Equipment (1-Year Warranty)

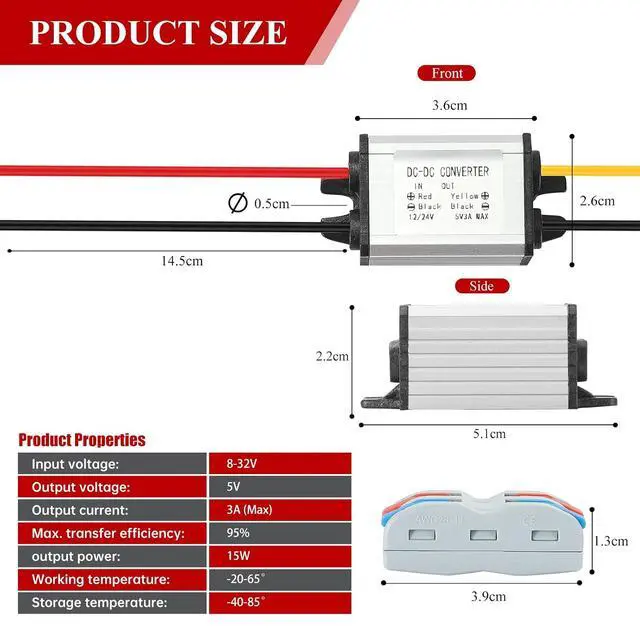

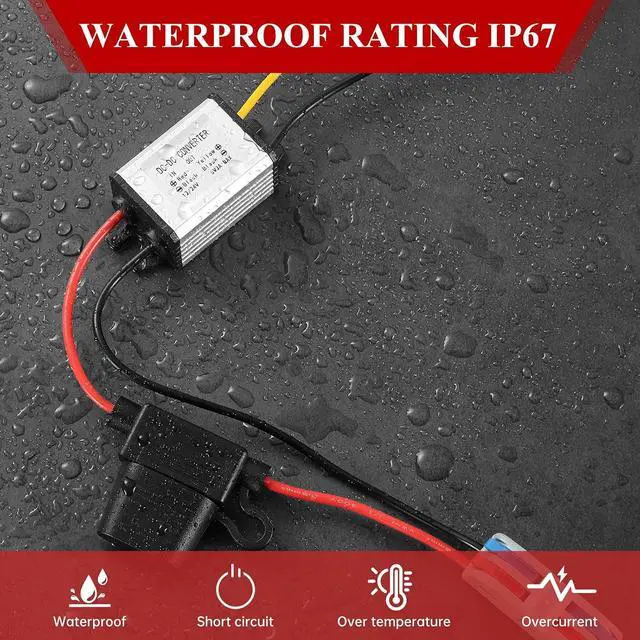

Electrical parameters input parameter Input range8-32V Rated input voltage12/24V transfer efficiency95% incoming line15-16CM(R+ B-) out parameter output voltage5V Output3A MAX Maximumoutput15W MAX No-load adjustment rate2% load regulation3% quiescent dissipation20MA ripple wave200mVP-P The oscilloscope bandwidth is 20 MHz, and the test end is connected with 10 F electrolytic capacitor and 0.1 F ceramic capacitor. outlet line15-16CM(Y+ B-) enviromental parameter working temperature-20-65° Storage temperature-40-85° Working humidity10%-90%RH defencive function classification of waterproofIP67 Other Weight 0.08 lb Size 1.3 * 0.89 * 0.83 inch Heat dissipation methodnatural heat dissipation matters need attention 1. memoryThe products are stored in a dry and cool place with a temperature range of-40 ~80, and avoid contact with corrosive substances, and stay away from fire and heat sources.

2. Do not use it near a heat source (such as a fire or a heater). 3. Do not connect the input line to 220V electricity. 4. Do not put the product into the fire or heat it. 5. Do not short-circuit the positive or negative poles of the product with wires or other metal objects. 6. Non-professional personnel are prohibited to disassemble and repair by themselves.
