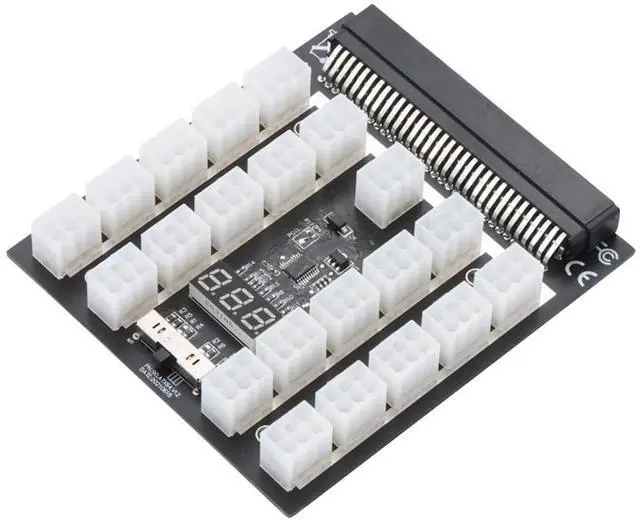

64 Pin to ATX 6 Pin GPU Power Adapter 12V Server Power Supply Breakout Board with LED Voltage Display (21Port 6pin)

AoQhir 64 Pin to ATX 6 Pin GPU Power Adapter 12V Server Power Supply Breakout Board with LED Voltage Display 2
Product Features: Product
Information: Server
Power Adapter Board Product Name: HP TAT Interface 64-Pin to 17/21 * 6-Pin Power Board
Product Interface: ATX 6-Pin TAT Bus Interface, 12 Connectors (for 6-Pin Power Cables)
Product Features:
1: Power board features LED voltage display for real-time monitoring of main power supply voltage.
2: Floppy drive 4-pin connector synchronizes power cycling with main power supply.
3: Press the white button to activate the power switch. (Toggle switch and button options available) 4: Upon connecting the power cord and pressing the power switch, the tri-color LED flashes while the LED display shows voltage readings.

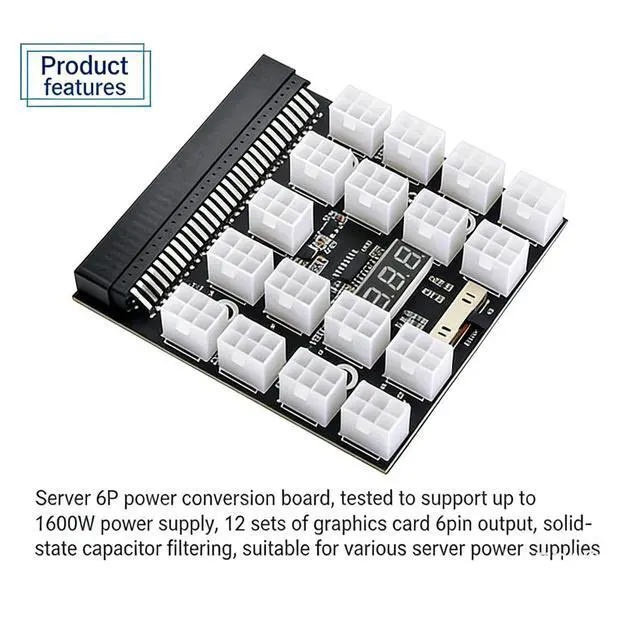

Important Notes: Ensure correct orientation when plugging in cables to prevent device damage from reverse or misaligned connections. When connecting cables, hold the device's socket firmly to avoid breaking pins due to excessive force. When the main power detection port is engaged, the manual switch becomes inactive. Disconnect the detection cable to restore manual power control functionality. 3 Detailed Product Description This server power supply breakout board is designed to convert server PSU output into multiple ATX 6 pin GPU power connections. It features a 64 pin input interface and provides up to 17 independent 6 pin power outputs making it suitable for GPU power distribution in mining rigs server test platforms and high power workstations. The board includes an integrated LED voltage display that shows the real time output voltage of the main power supply allowing users to quickly monitor system power status. When the power cable is connected and the power switch is pressed the tri color LED indicator flashes and the voltage display activates. Multiple power control options are supported. Users can power on the system using the white push button or toggle switch. The 4 pin floppy connector allows synchronized startup and shutdown with the main power supply.

When the PSU detection cable is connected manual power switching will be disabled and power control will follow the main PSU status. This product is compatible with DPS-1200FB ADPS-1200QB APS-2751-5QHSTSN-PL12PS-2751-LF-1FPS-21125LDPS-700LB DDPS-750RBA. Important Installation Notes Please ensure correct cable orientation before connecting. Do not insert cables incorrectly or at an angle as this may damage the board or connected devices. Hold the socket firmly during insertion to avoid bending or breaking the connector pins. Due to continuous 24 hour operation this type of product is considered a consumable component. Regular inspection and proper cooling are recommended.
