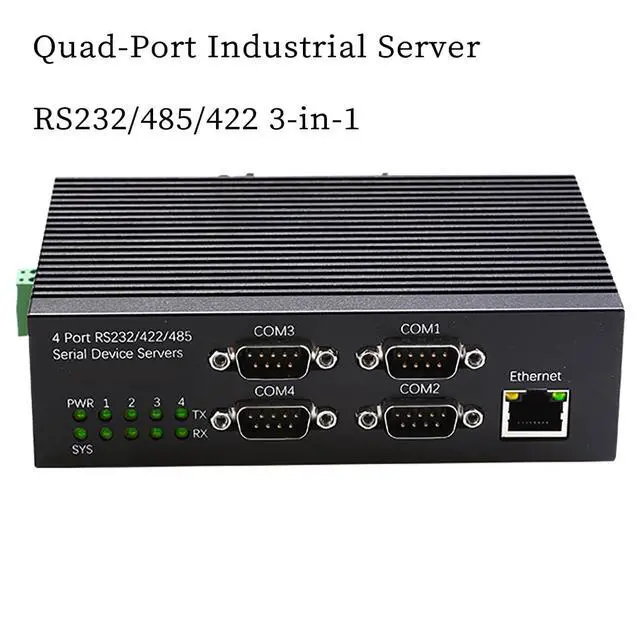

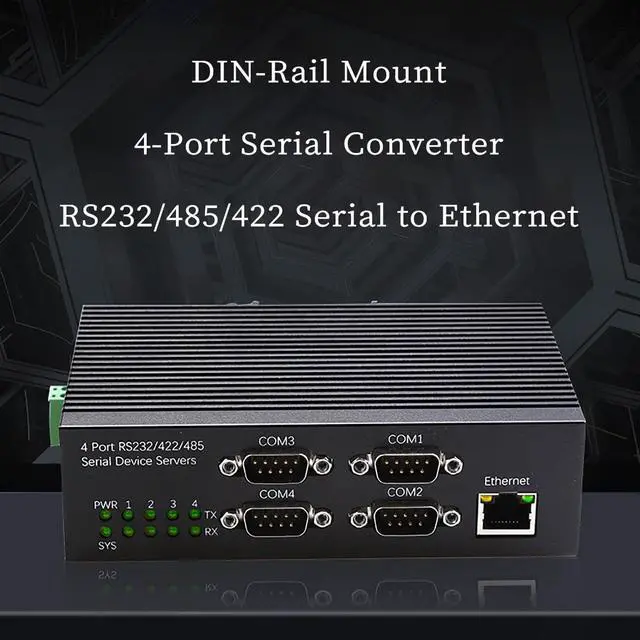

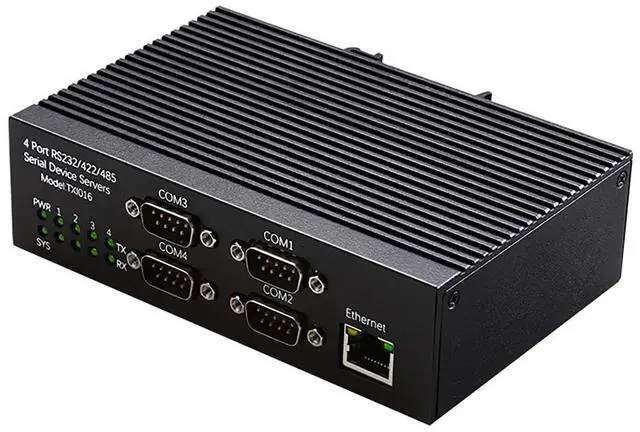

4 Port RS485 RS232 RS422 Serial Device Server DIN Rail Mount Industrial Ethernet Converter 10 100Mbps Multi Protocol Serial to Network Module
- 4 Port RS485 RS232 RS422 Serial to Ethernet Server -- This industrial serial device server provides four independent UART ports supporting RS232 RS485 and RS422 communication allowing seamless conversion between serial devices and Ethernet networks for PLC automation industrial monitoring and remote control.; Multi Protocol Support for Industrial Integration -- Compatible with Modbus TCP IP TCP Server TCP Client UDP VCOM Paired Master Slave Reverse Telnet and RFC2217 offering flexible deployment in SCADA systems energy management IoT gateways and long distance serial communication applications.; 10 100Mbps Adaptive Ethernet Port -- Equipped with a 10 100M auto adapting RJ45 port supporting IEEE 802.3 802.3u and 802.3x standards ensuring stable high speed network transmission in full duplex and half duplex modes.; DIN Rail Mount with Wide Voltage Input -- Designed for industrial cabinets supporting DC12V to 54V power supply and 3.5W low power consumption. Suitable for diverse environments including automation cabinets machinery control boxes and communication base stations.; Wide Temperature Operation and High Durability -- Built for harsh industrial environments supporting a temperature range from minus 40 to 85 degrees Celsius and 10 to 90 percent humidity non condensing. LED indicators display power system status network link and serial TX RX activity.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AoQhir 4 Port RS485 RS232 RS422 Serial Device Server DIN Rail Mount Industrial Ethernet Converter 10 100Mbps Multi Protocol Serial to Network Module Product Parameters
Network Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x
Network Transmission Rate: 10/100Mbps (Full-duplex/Half-duplex)
Network Interface: 1 x 10/100M auto-negotiating RJ45 port

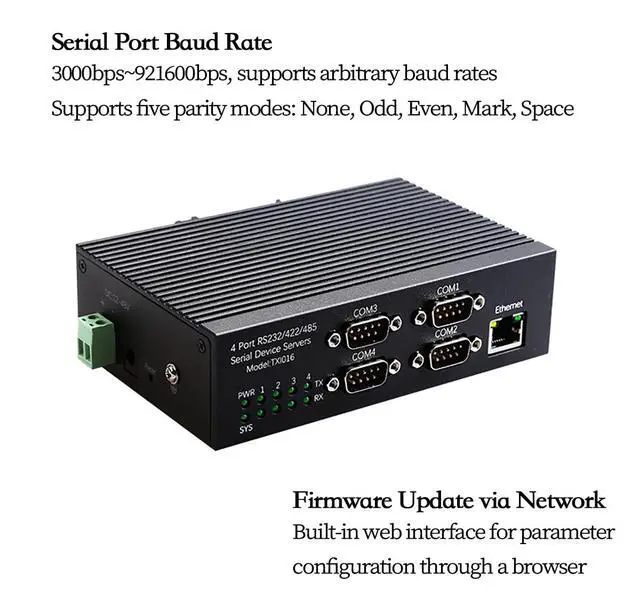

Baud Rate: 3000bps~921600bps, supports arbitrary baud rates

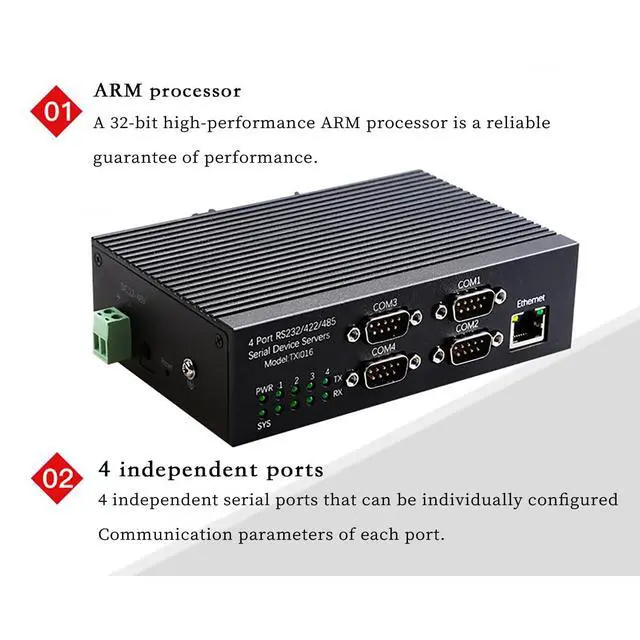

UART Interfaces: 4 RS232, RS485, RS422 ports
UART Operating Modes: Compatible with Modbus TCP/IP, TCP Server, TCP Client, VCOM, UDP, Paired-Master/Slave, Reverse Telnet, RFC2217
Indicators: Power, System Status, Link/Act, TX/RX
Power Supply: DC12V/1A
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Humidity: 10% to 90%, non-condensing

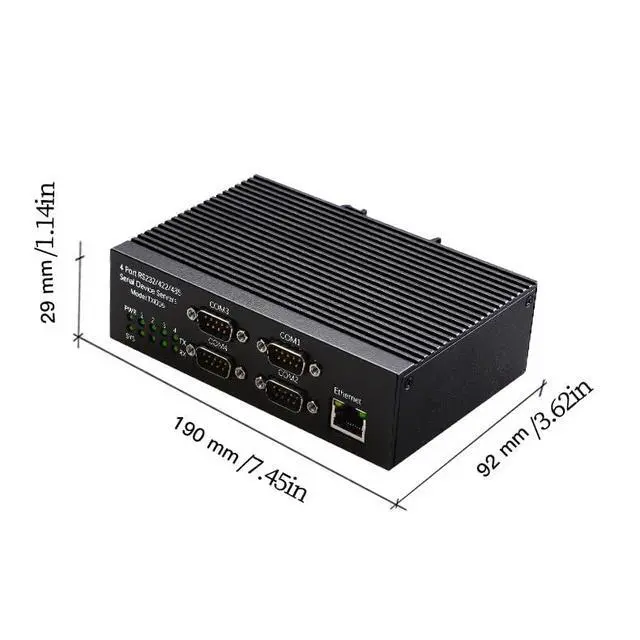

Dimensions: 190*90*29mm
Weight: 0.24KG Indicator
Status Power Indicator: Green, illuminates when powered on
Network Indicator: Green, lit when connected to network; flashes during data transmission
System Indicator: Green, lit after successful power-on self-test; flashes when device is operating normally
Serial Port Indicator: Green, flashes during TX/RX signal transmission
TXI016 Default Parameters Username: admin
Password: system
IP Address: 192.168.
2.1 Subnet Mask: 255.255.
255.0 Operating Mode: TCP-compatible SERVER mode
Serial Baud Rate: 921600 bps
Serial Parameters: 921600, 8, N, 1
Local Ports:
TCP-compatible: 5004-5007
UDP: 6001-6004
Network Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x
Network Transmission Rate: 10/100Mbps (Full-duplex/Half-duplex)
Network Interface: 1 x 10/100M auto-negotiating RJ45 port
Baud Rate: 3000bps~921600bps, supports arbitrary baud rates
UART Interfaces: 4 RS232, RS485, RS422 ports
UART Operating Modes: Compatible with Modbus TCP/IP, TCP Server, TCP Client, VCOM, UDP, Paired-Master/Slave, Reverse Telnet, RFC2217
Indicators: Power, System Status, Link/Act, TX/RX
Power Supply: DC12V/1A
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Humidity: 10% to 90%, non-condensing
Dimensions: 190*90*29mm
Weight: 0.24KG Indicator
Status Power Indicator: Green, illuminates when powered on
Network Indicator: Green, lit when connected to network; flashes during data transmission
System Indicator: Green, lit after successful power-on self-test; flashes when device is operating normally
Serial Port Indicator: Green, flashes during TX/RX signal transmission
TXI016 Default Parameters Username: admin
Password: system
IP Address: 192.168.
2.1 Subnet Mask: 255.255.
255.0 Operating Mode: TCP-compatible SERVER mode
Serial Baud Rate: 921600 bps
Serial Parameters: 921600, 8, N, 1
Local Ports:
TCP-compatible: 5004-5007
UDP: 6001-6004
