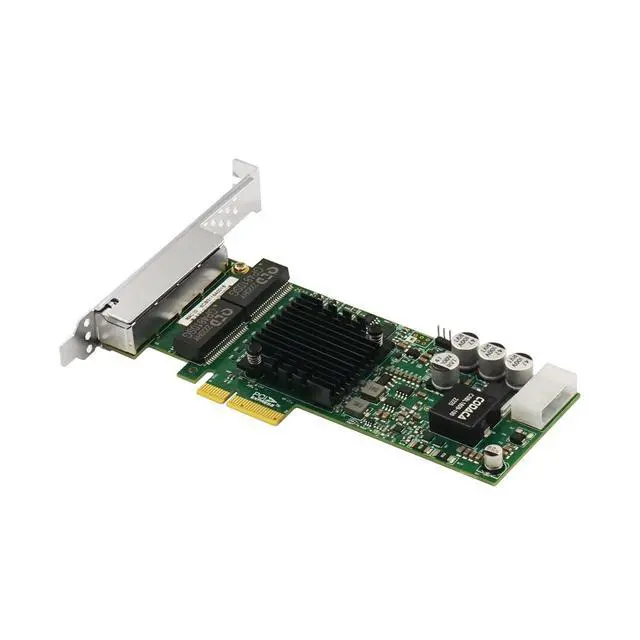

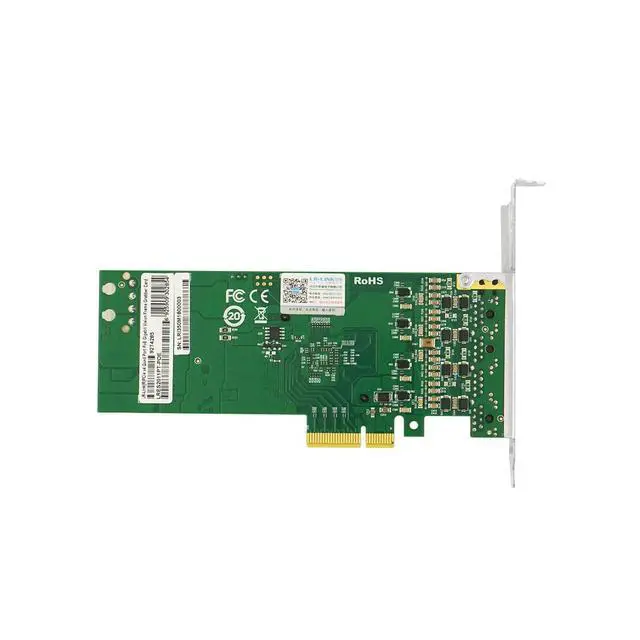

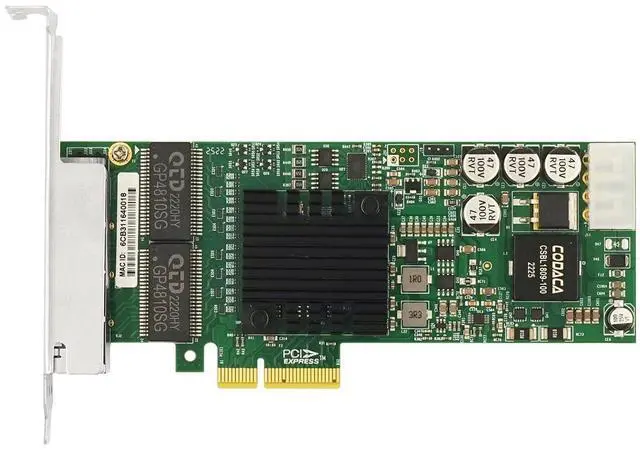

PCIe x4 Quad Port with Surge Protection Gigabit Ethernet Image Capture Card

LRES2011PT-POE is a four-port copper cable Gigabit Ethernet PCI Express x4 Ethernet frame grabber card. It is also compatible with PCIe x8., X16 channels. This server adapter card design is mainly designed for industrial field vision inspection servers and equipment, vision field clients, fast-moving Ethernet data transmission equipment, etc., and also suitable for ordinary servers. This adapter card has integrated hardware acceleration capabilities and can perform TCP / UDP / IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications.

This adapter card is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers. LRES2011PT-POE was developed on an 1ntel I350-based integrated four-port Ethernet MAC + PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows up to four simultaneous gigabit Ethernet connections The port works in full-duplex mode to adapt to high-performance network communications. It can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.
No PoE+ power supply: PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter LRES2025PT
