Fingerprint & RFID Access Control System - 3-in-1 Door Entry Reader with Keypad, ID Card Scanner & Biometric Sensor, Standalone Controller for Office/Home
Limited time offer, ends 08/01 By CoreDepot

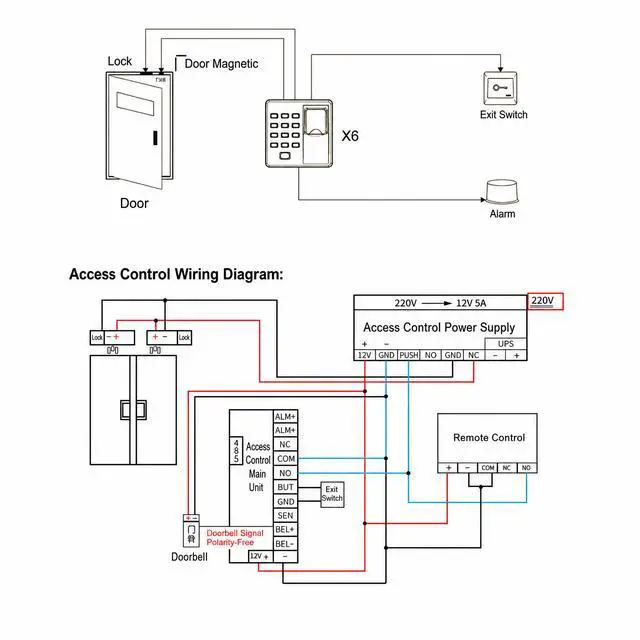

- Connection Instructions:
- To ensure the safety of the equipment, please do not operate it while powered on. The power controller needs to be connected to 220V, and other accessories can be connected via network cables.
- 1. The fingerprint machine is connected to the 4-core line of the access control power supply, with 2 power lines and 2 signal lines. The 12V and GND are connected to the 12V and GND of the access control power supply, and NO and COM are connected to the PUSH and GND of the access control power supply.
- 2. The 2-core lines of the electric lock and magnetic lock are respectively connected to the NC and COM of the access control power supply, and the electric control lock is connected to the NO and COM of the power supply.
- 3. The exit switch is connected to the PUSH and GND of the access control power supply, or the BUT and GND of the fingerprint machine.
- Connect the wiring materials (network cables can be used for connection; the type of network cable must be Category 5 or above, such as Super Category 5, Category 6...)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Note: The access control power box, backup battery, wireless remote control, magnetic lock bracket, door closer, etc. are optional accessories. Please contact the merchant for more information.

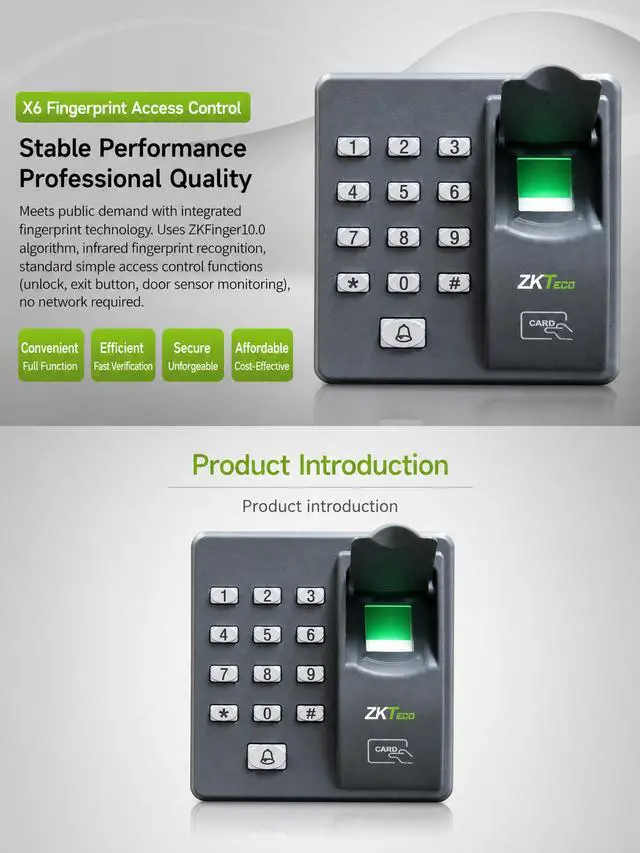

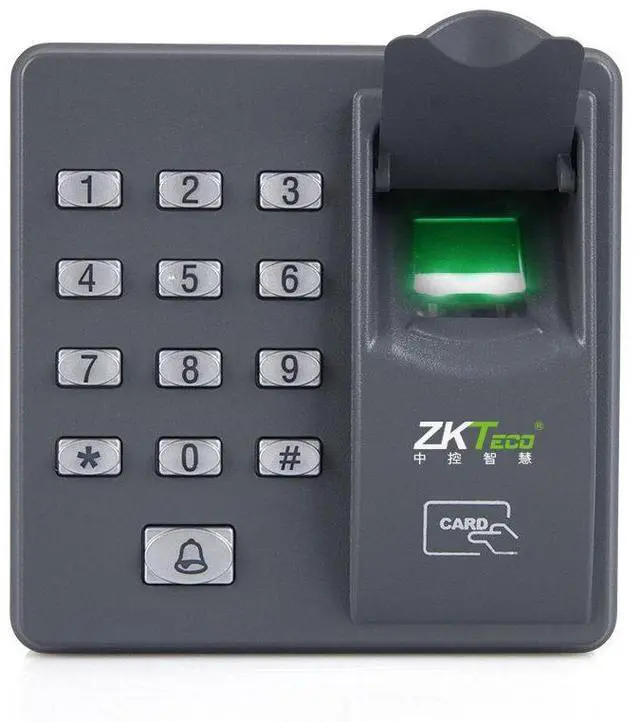

X6 Fingerprint & RFID Access Control System - 3-in-1 Biometric Door Entry Controller
Upgrade your facility security with this professional-grade access control system that combines fingerprint recognition, RFID card reading, and PIN code entry in a single compact unit. Designed for standalone operation without requiring a PC or network infrastructure, the X6 is the ideal solution for small businesses, offices, warehouses, server rooms, apartment buildings, and high-security residential gates.
Three Layers of Security, One Device1. Fingerprint Biometric (Optical Sensor)
- Capacity: Up to 1,000 fingerprint templates
- Recognition speed: <1 second
- False Acceptance Rate (FAR): <0.0001%
- Works with dry, wet, or slightly worn fingertips
