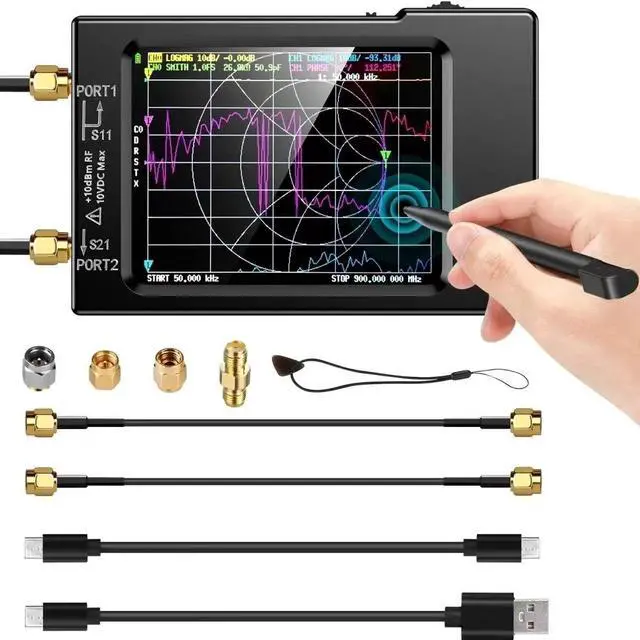

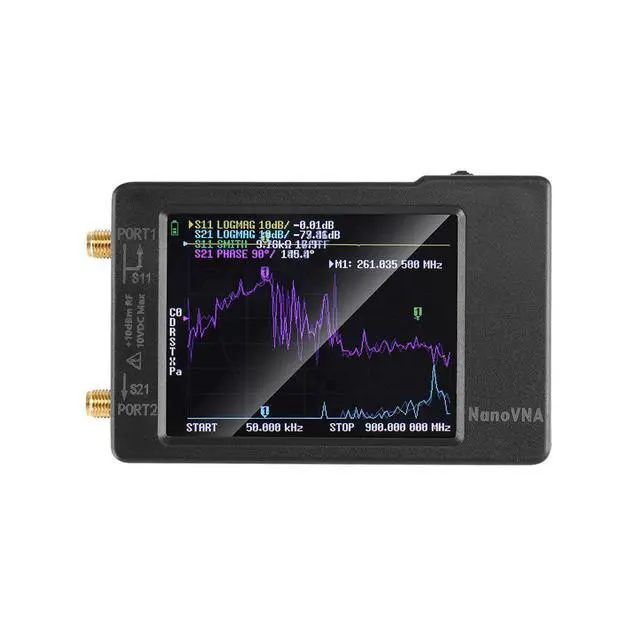

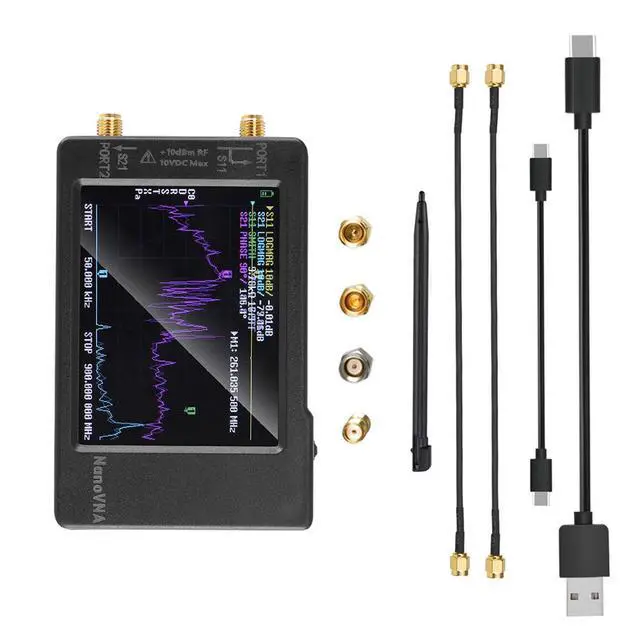

NanoVNA-H Vector Network Analyzer, 2.8 Inch LCD RF Antenna Analyzer 50KHz-900MHz VNA Tester for SWR, S-Parameter and Impedance Measurement

Basic performance:

PCB: 54mm x 85.5mm x 11mm (excluding connectors and switches)

Measurement frequency: 50KHz ~ 300MHz (50KHz - 900MHz, with extended firmware enabled)

Radio frequency output: -13dbm (maximum -9dbm)

Frequency accuracy: < 0.5 ppm

Measurement range: 70dB (50kHz - 300 MHz), (50dB (300 MHz - 600 MHz), 40dB (600 MHz - 900 MHz) with extended firmware enabled);

Port SWR: < 1.1

Display: 2.8-inch TFT (320 x 240)

USB interface: USB type-C Communication mode: CDC (serial)

Power Supply: 5V USB, 120mA, built-in 400mAh battery, maximum charging current 0.8A

Number of calibration points: 101 (fixed)

Number of scanning points: 101 (fixed)

Display tracking: 4, Marking: 4, Save settings: 5

Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart... ;
