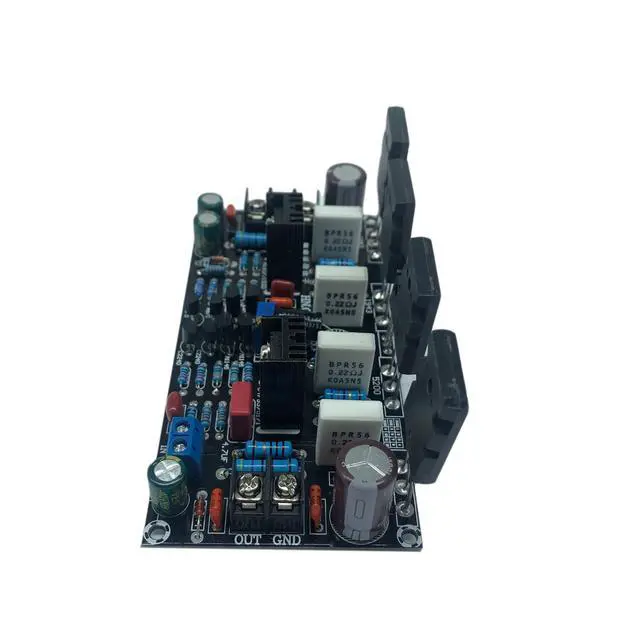

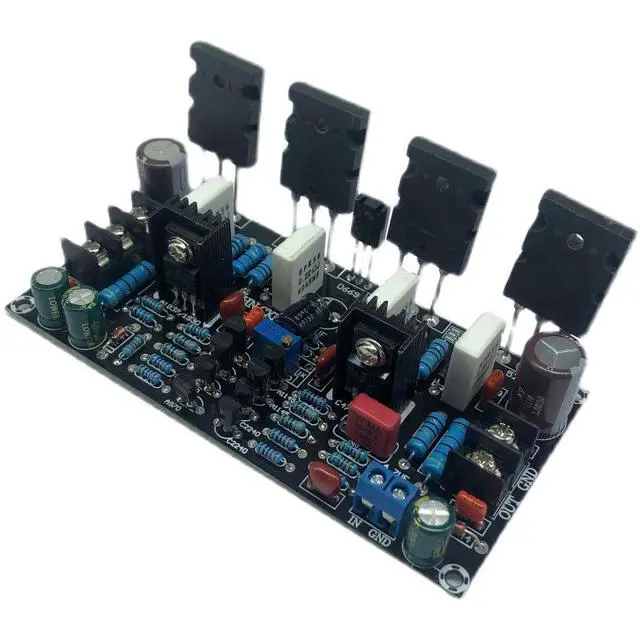

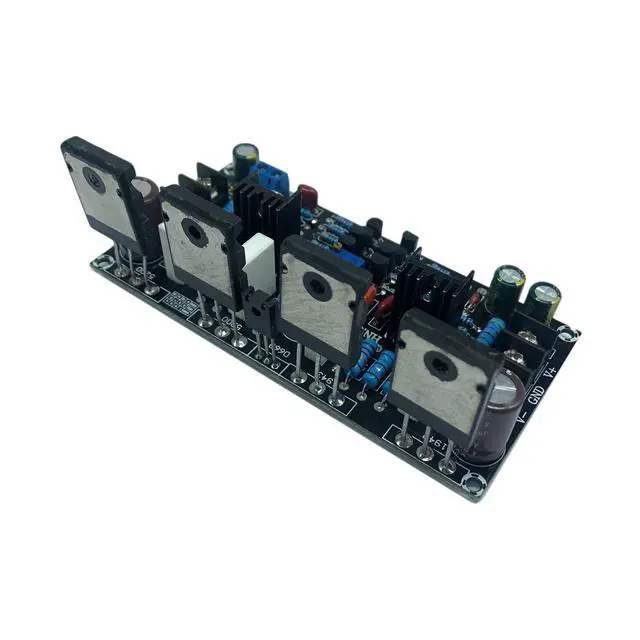

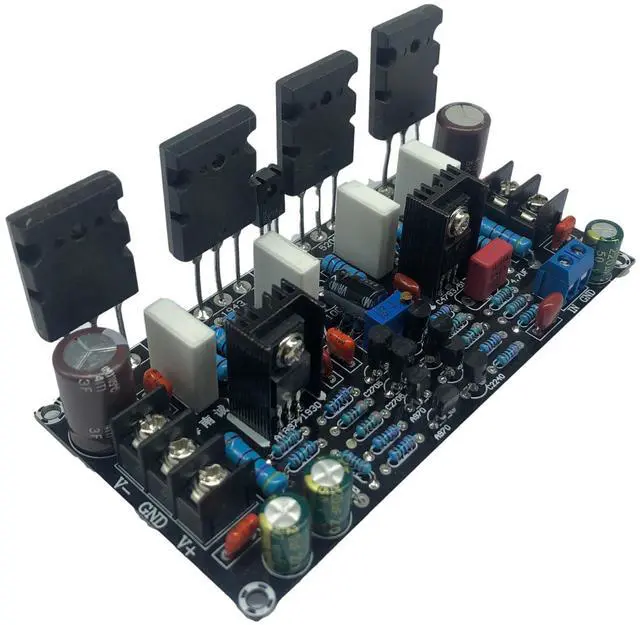

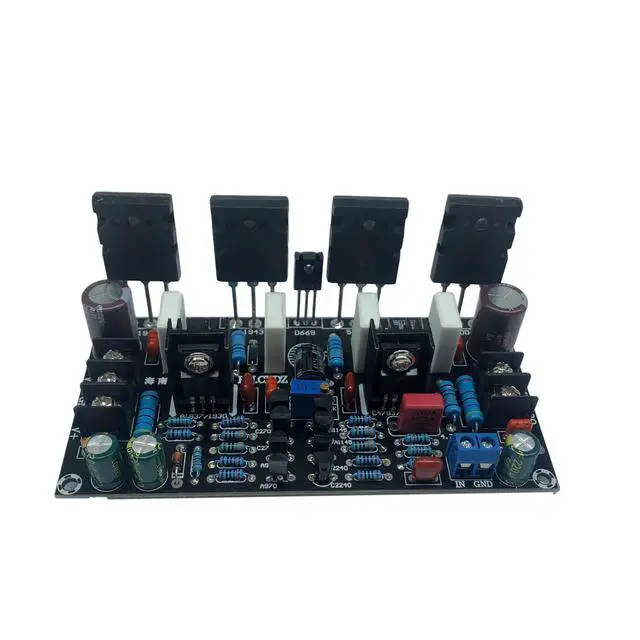

Single Channel 200W Power Amplifier Board - 1943+5200 Toshiba Complementary Pair Transistors, High Power Mono Audio Amp Module
- The board is a single-channel power amplifier board. If you need a dual-channel one, buy two. The circuit design uses
- A970/C2240 high-voltage audio differential pair tubes for voltage amplification and A1145/C2705 for voltage boosting.
- The driving uses medium-power tubes A1837/C4793, and the output stage uses A1943/C5200 high-power tubes.
- Toshiba tubes. The power supply range is wide, from DC positive and negative 20V to 90V. As long as it provides sufficient power.
- It can easily achieve 200W sound quality, strong driving power, and no pressure when driving a 15-inch speaker!
- Power amplifier board size: 120*60*45MM (length x width x height)
- Real power: distortion-free power 200W, maximum power 300W

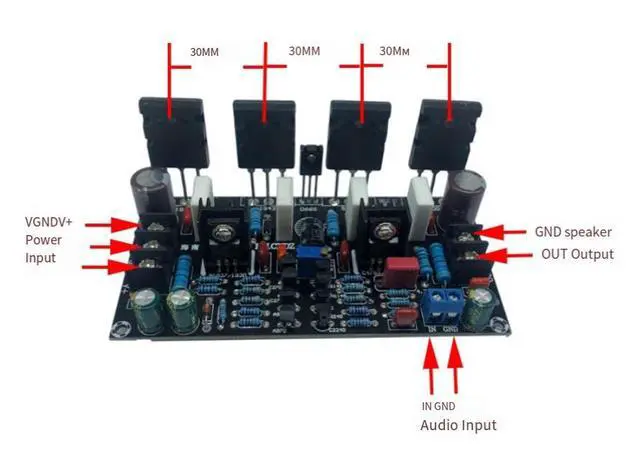

- Power supply: dual voltage, DC positive and negative 20-90V (the upgraded version has optimized the circuit and components, and can directly use high voltage. It is recommended to use below 90V, and do not challenge the voltage limit.)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The board is a single-channel power amplifier board. If you need a dual-channel one, buy two. The circuit design uses
A970/C2240 high-voltage audio differential pair tubes for voltage amplification and A1145/C2705 for voltage boosting.
The driving uses medium-power tubes A1837/C4793, and the output stage uses A1943/C5200 high-power tubes.
Toshiba tubes. The power supply range is wide, from DC positive and negative 20V to 90V. As long as it provides sufficient power.
It can easily achieve 200W sound quality, strong driving power, and no pressure when driving a 15-inch speaker!
Power amplifier board size: 120*60*45MM (length x width x height)
Real power: distortion-free power 200W, maximum power 300W
Power supply: dual voltage, DC positive and negative 20-90V (the upgraded version has optimized the circuit and components, and can directly use high voltage. It is recommended to use below 90V, and do not challenge the voltage limit.)
