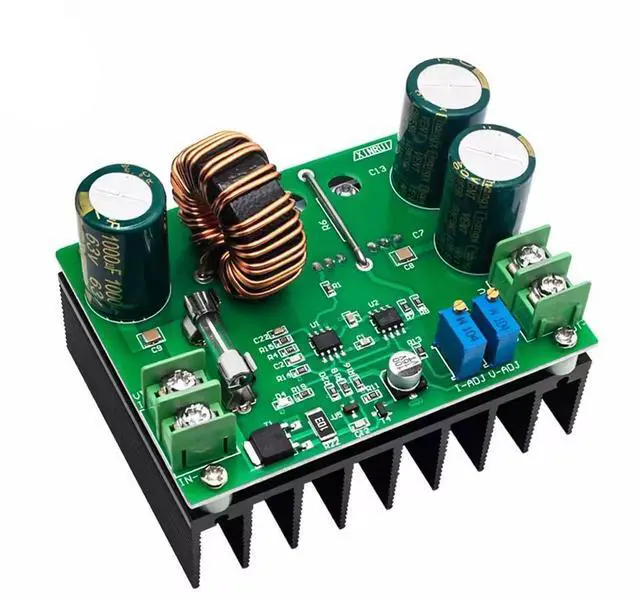

600W DC-DC Boost Converter Module, 10-60V to 12-80V Adjustable Step Up Voltage Regulator, High Power Converter for Solar, Laptop Power and DIY Electronics

Note:

This product is a current-limiting regulator, not a current-regulating 600W boost module. It has a wide voltage input range: 12V to 60V and 12V to 80V, adjustable. The wide voltage output range: adjustable output current; extremely low input-output voltage difference.

Detailed explanation

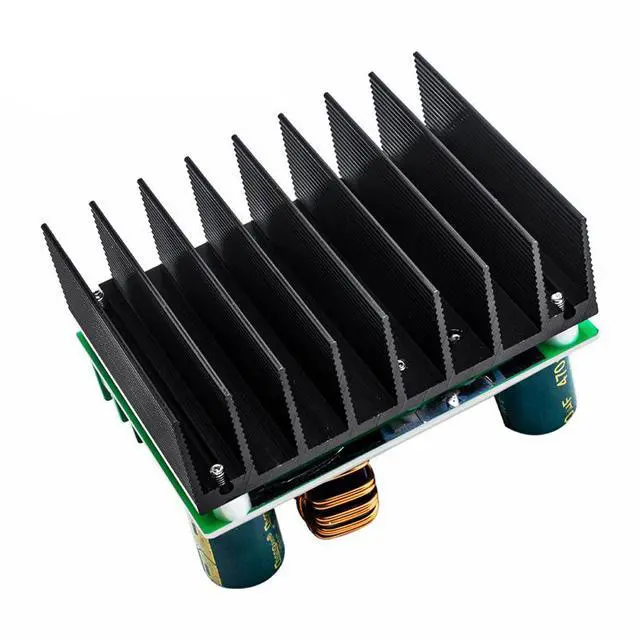

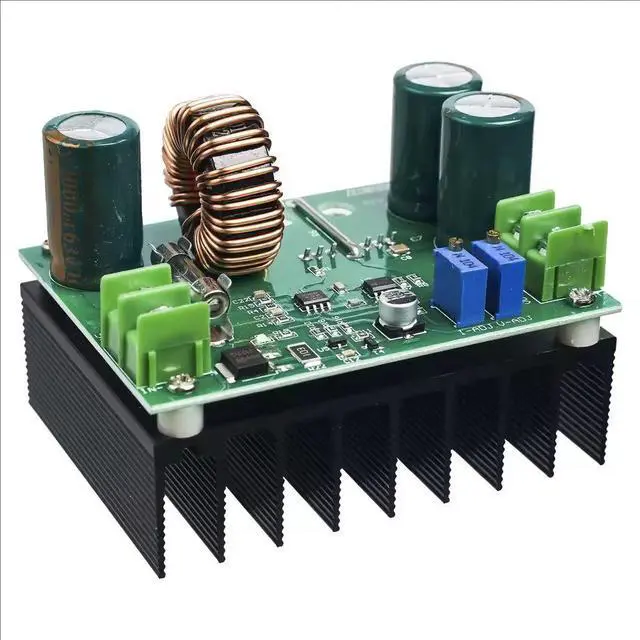

This product is made with sufficient materials and features a custom-made heat sink. Specifications: The thickness of the heat sink base plate is 5mm, the height of the teeth is 21mm, the length is 85mm, and the width is 63mm. The force plate is fixed on the square of the heat sink. The design is reasonable. The heat sink and the force plate are integrated, making it convenient for users to directly connect and use. The long screws can be used for direct fixation.

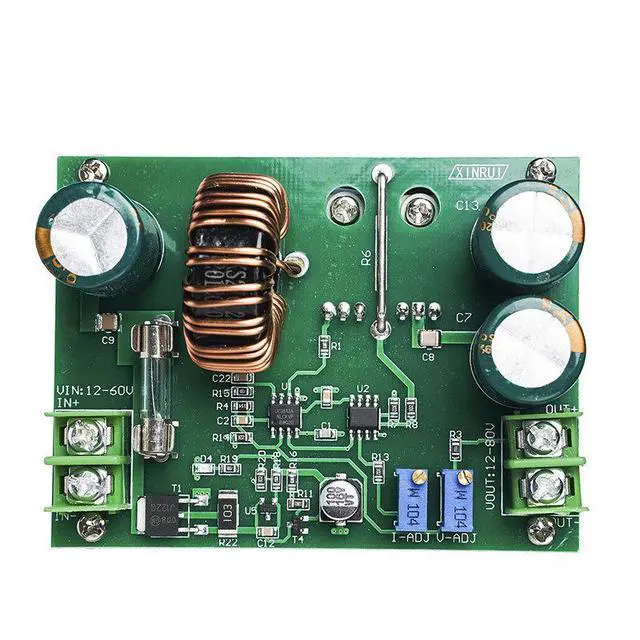

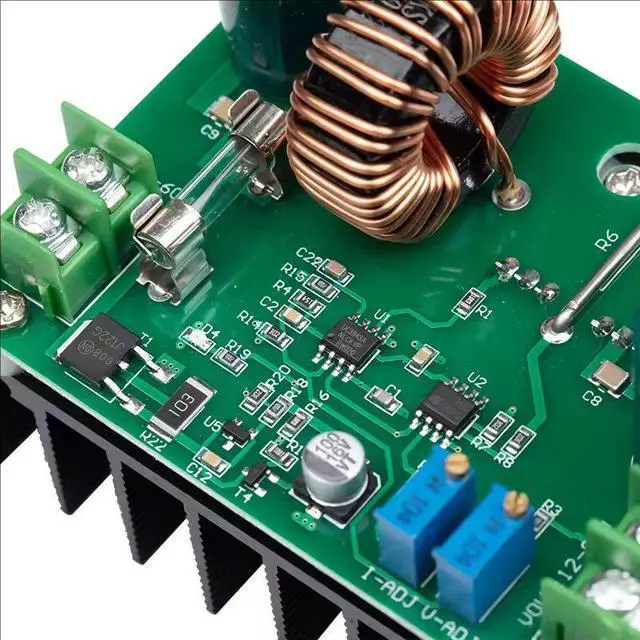

2. The inductor magnetic ring is made of 27mm iron-silicon-aluminum magnetic ring. It has a 1mm double-wire winding for high-quality filtering capacitor layer. It is connected with 1 11000 µF 63V electrolytic capacitor at the input, and has 2 470UF 100V electrolytic capacitors at the output. The boost output has better power quality. The onboard power supply has on/off function, power working indicator light. It is equipped with voltage and current regulating potentiometers, making the output more convenient. Moreover, the output voltage and current, as well as the input and output, can be adjusted at any time. The output uses 8500 terminal block, which has strong overcurrent capacity and ensures long-term reliable operation.
