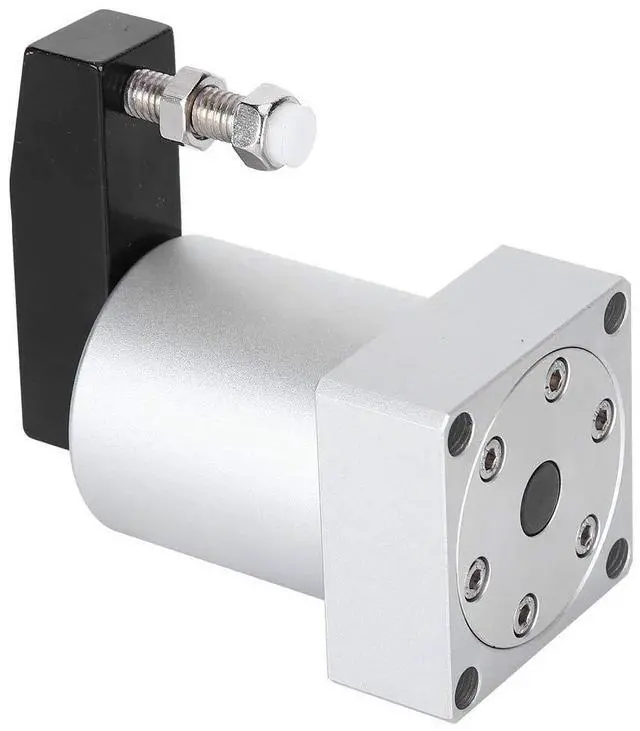

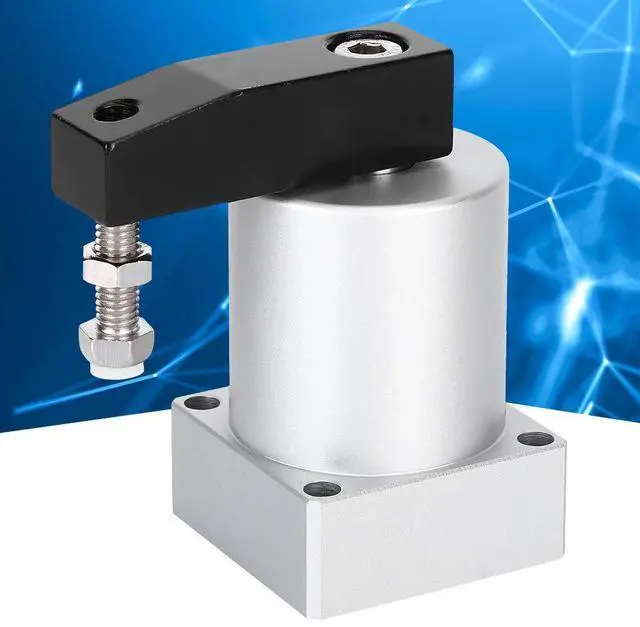

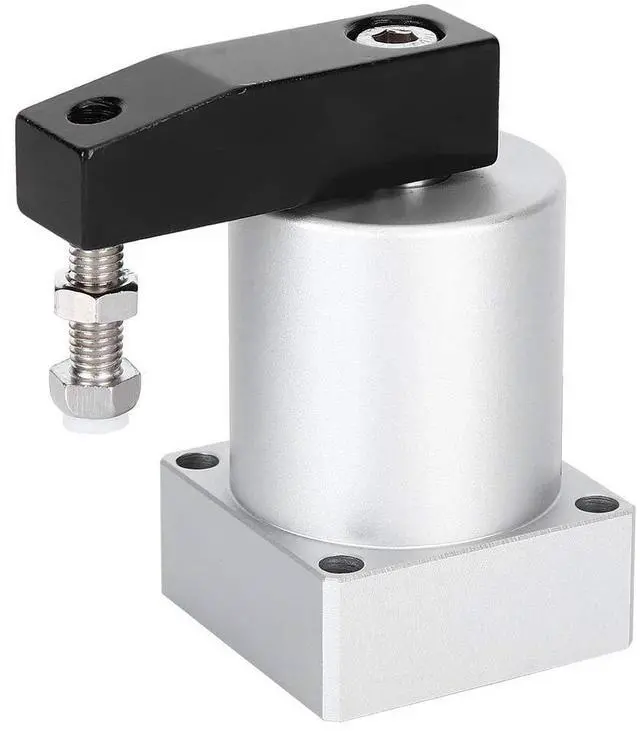

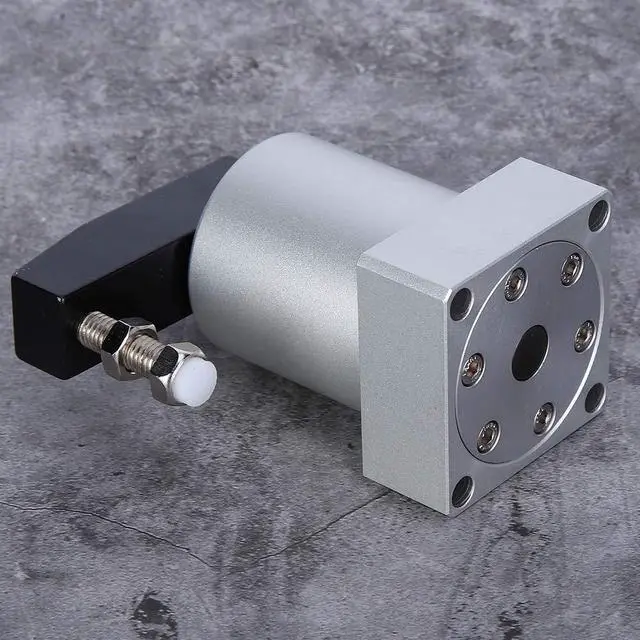

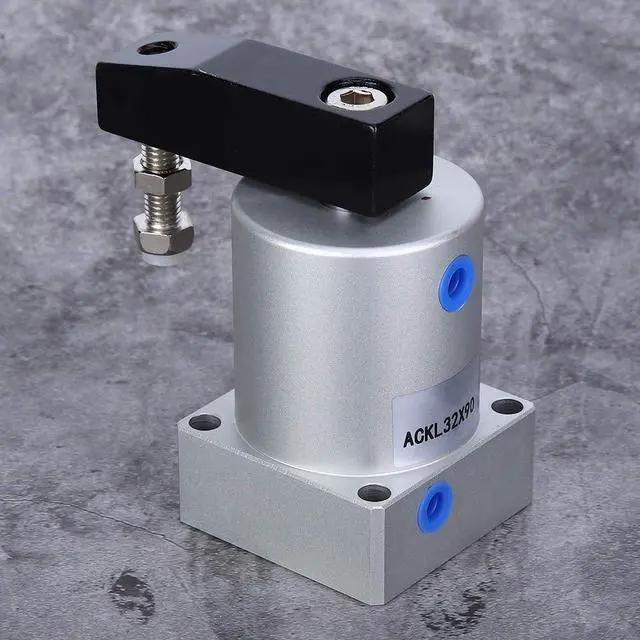

Air Cylinder DoubleActing Clamping Corner Pressing Pneumatic Parts ACK3290r L (ACK32-90L)

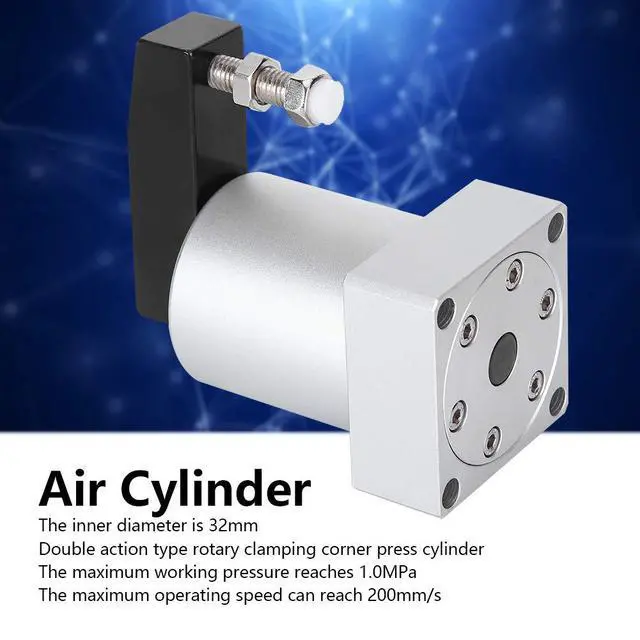

- This is a doubleacting clamping corner press cylinder with an inner diameter of 32mm; The maximum working pressure reaches 1.0MPa the performance is very good; The maximum us can 200mm/s, which can perfectly meet your needs; Using highquality materials, strong and durable, has a long service life; Small size store, convenient to use and with good performance
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Item
Type: Air Cylinder
Optional Style: ACK3290L, ACK3290R Inner
Diameter (mm): Approx. 32mm / 1.3 in Piston Rod
Outer Diameter (mm): Approx. 16mm / 0.6 in
Action Type: Double action
Working Medium: Air (filtered by a filter screen above 40m) Operating
Pressure Range: 0.15 ~ 1.0MP a (22~145psi)
Pressure Resistance: 1.5MP a (215psi)
Working Temperature (): -20~80 Operating
Speed Range (mm/s): 50~200 Travel
Tolerance Range: 1.0 Rotation Angle
Tolerance Range: ± 1.5 °
Buffer Type: None
Take Over: PT1/8 Installation and
Use:
1. When the cylinder clamps the workpiece, it must be performed within the clamping stroke the clamping operation cannot be performed within the rotation stroke;
2. The clamping plane must be perpendicular to the cylinder. After the workpiece is clamped, please do not move the workpiece;
3. Before piping the cylinder, the debris in the pipe must be removed to debris from entering the cylinder;
4. The medium used in the cylinder should be filtered by a filter part above 40m before use;
5. When the cylinder is removed and not used for a long time, pay attention to anti rust on the surface, add anti dust blocking caps to the intake and exhaust ports apply anti rust oil to the end of the piston rod.
Package List: 1 x Air Cylinder
Type: Air Cylinder
Optional Style: ACK3290L, ACK3290R Inner
Diameter (mm): Approx. 32mm / 1.3 in Piston Rod
Outer Diameter (mm): Approx. 16mm / 0.6 in
Action Type: Double action
Working Medium: Air (filtered by a filter screen above 40m) Operating
Pressure Range: 0.15 ~ 1.0MP a (22~145psi)
Pressure Resistance: 1.5MP a (215psi)
Working Temperature (): -20~80 Operating
Speed Range (mm/s): 50~200 Travel
Tolerance Range: 1.0 Rotation Angle
Tolerance Range: ± 1.5 °
Buffer Type: None
Take Over: PT1/8 Installation and
Use:
1. When the cylinder clamps the workpiece, it must be performed within the clamping stroke the clamping operation cannot be performed within the rotation stroke;
2. The clamping plane must be perpendicular to the cylinder. After the workpiece is clamped, please do not move the workpiece;
3. Before piping the cylinder, the debris in the pipe must be removed to debris from entering the cylinder;
4. The medium used in the cylinder should be filtered by a filter part above 40m before use;
5. When the cylinder is removed and not used for a long time, pay attention to anti rust on the surface, add anti dust blocking caps to the intake and exhaust ports apply anti rust oil to the end of the piston rod.
Package List: 1 x Air Cylinder
