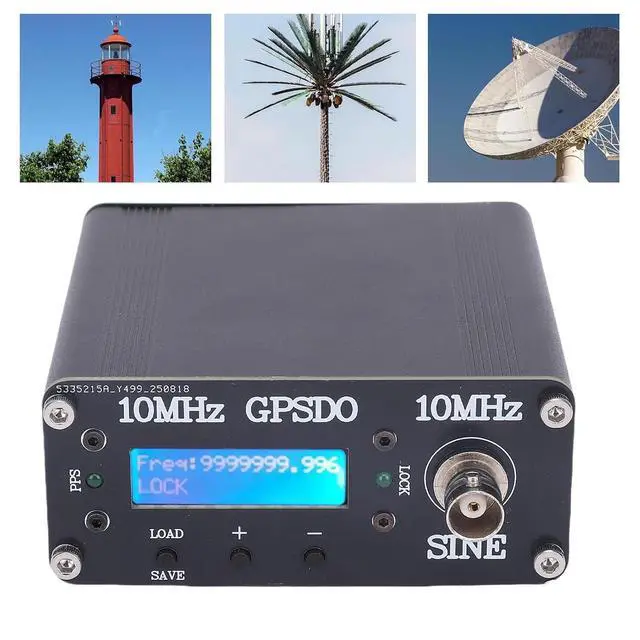

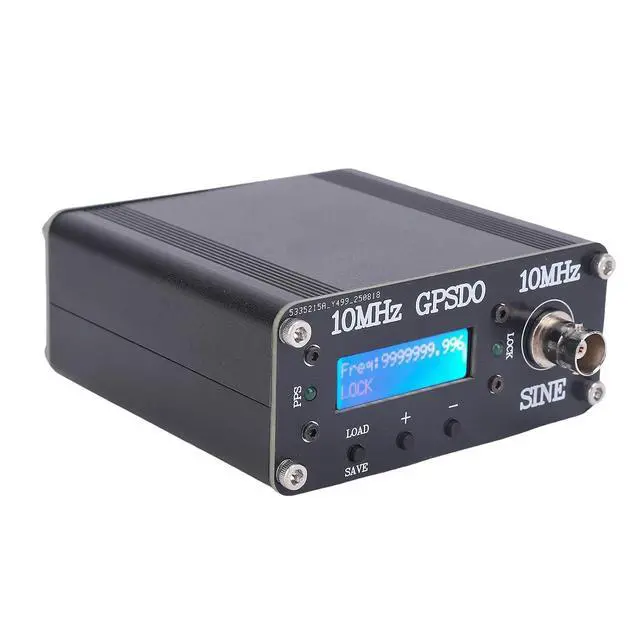

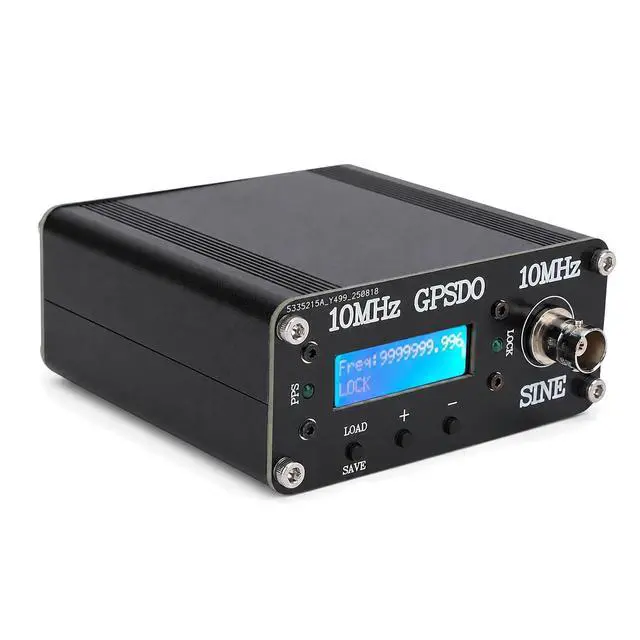

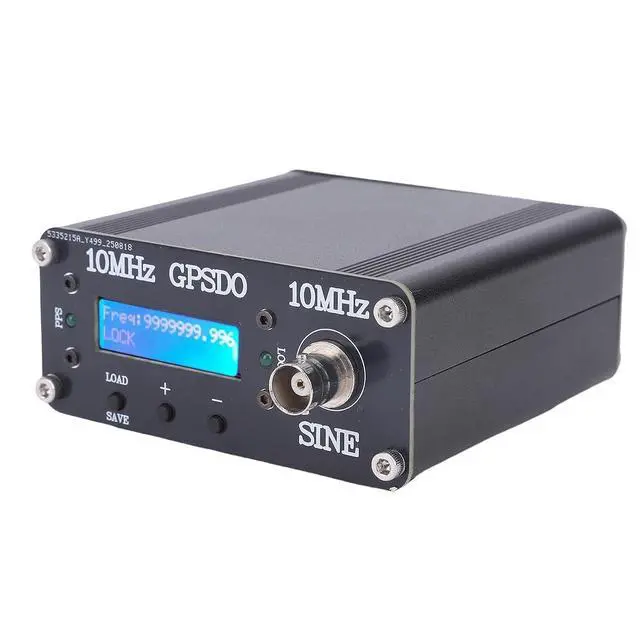

GPSDO GPS Disciplined Oscillator 10MHz High Precision Signal Source for Frequencies, GPS, 10MHz Output
- [HIGH PERFORMANCE MICROCONTROLLER] Ensures precise comparison of GPS signals for accurate output control.; [STABLE OUTPUT] Offers low temperature drift and stable output for consistent performance.; [PWM CONTROL] Ability to adjust PWM duty cycle value for fine-tuning output accuracy.; [LONG-LASTING USE] Constant temperature crystal oscillator OSC5A2B02 ensures durability and reliability.; [OPTIMAL SIGNAL SOURCE] Provides a stable 10MHz reference for optimal device functionality.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description How to Use When the device is powered on, the screen will display 10.00MH z GPSDO. If a GPS is not installed, this message will continue to be displayed. Once the GPS is installed and satellite is locked, the screen will show the PPb calibration value after comparing the 1PPS signal and the current PWM duty cycle value. It may take about 30 minutes for the initial calibration. When the PPb value is at 0.0 ±1, press the encoder switch to enter the menu, rotate the encoder to find the PWMSET option and press the encoder switch to save the current PWM value.
Rotate the encoder again to find EXIT!! OK and press the encoder switch to exit the menu, completing the calibration. Once the PWM value is calibrated and saved, you can use the device without installing the GPS in the future.
Specification Item Type: GPS
Disciplined Oscillator Material: Aluminum
Alloy Working Current: <600mA during preheating, <300mA after stabilization
Output Frequency: 10MHz ± 0.001H z 1
Channel Output Waveform: Square wave about 4Vpp 2
Channel Output: Sine wave about 4Vpp
Output Amplitude: -45dBm Constant
Temperature Crystal: OSC5A2B02
GPS Module: Dual mode ATGM336H module Voltage Parameter

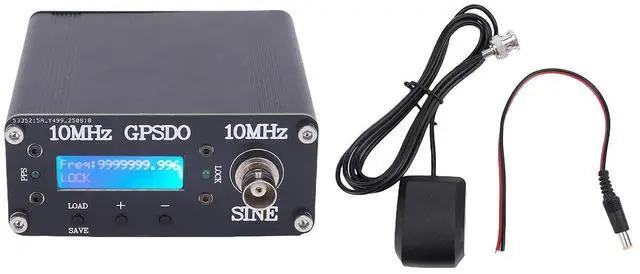

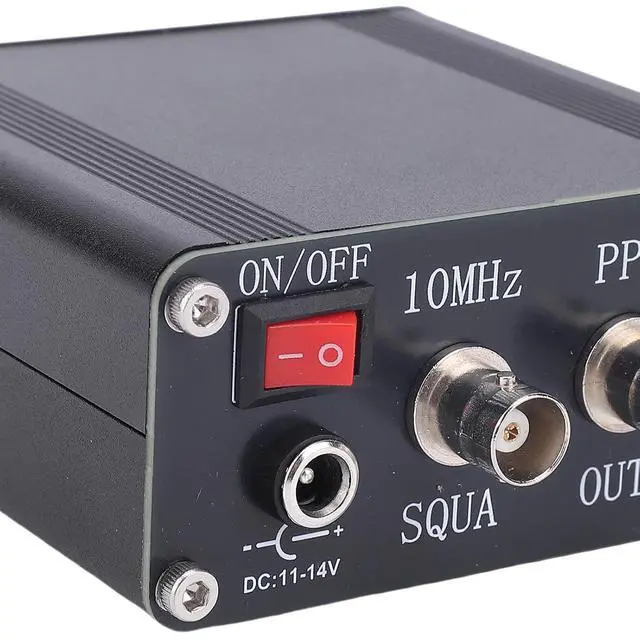

Power Supply Voltage: DC11-14V Package List 1 x GPS Disciplined Oscillator 1 x Module 1 x Connection Cable
Rotate the encoder again to find EXIT!! OK and press the encoder switch to exit the menu, completing the calibration. Once the PWM value is calibrated and saved, you can use the device without installing the GPS in the future.
Specification Item Type: GPS
Disciplined Oscillator Material: Aluminum
Alloy Working Current: <600mA during preheating, <300mA after stabilization
Output Frequency: 10MHz ± 0.001H z 1
Channel Output Waveform: Square wave about 4Vpp 2
Channel Output: Sine wave about 4Vpp
Output Amplitude: -45dBm Constant
Temperature Crystal: OSC5A2B02
GPS Module: Dual mode ATGM336H module Voltage Parameter
Power Supply Voltage: DC11-14V Package List 1 x GPS Disciplined Oscillator 1 x Module 1 x Connection Cable
