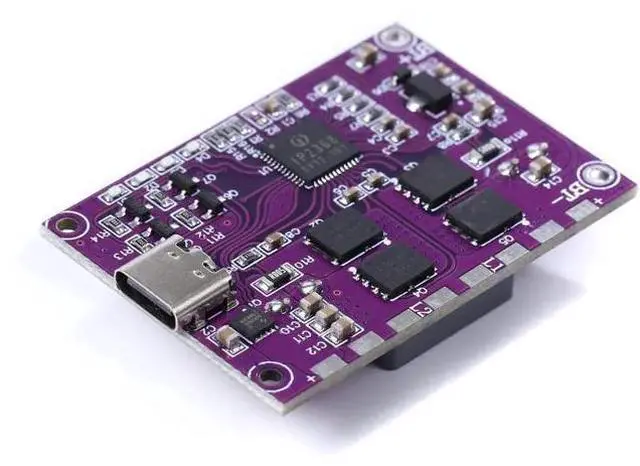

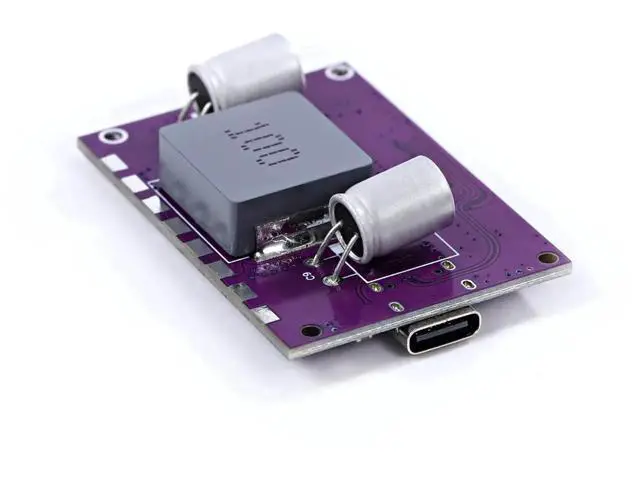

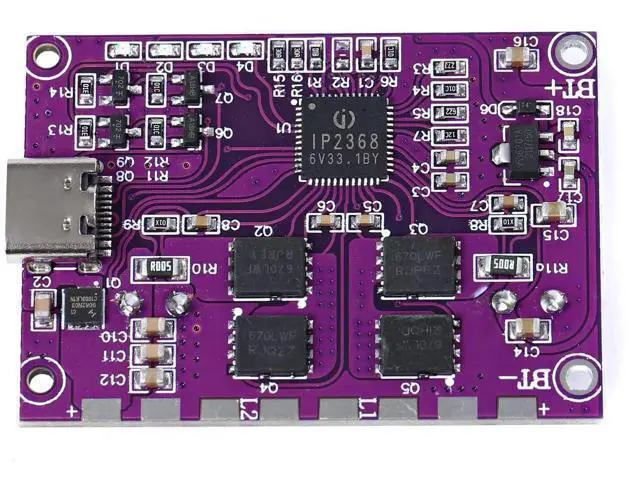

IP2368 Bidirectional 100w Fast Charging Module Buck-Boost Type-c Interface 4S Lithium Battery High-Power Fast Charging Board
- IP2368 full protocol 100W fast charging output, the output not only supports notebook computers but also is compatible with almost all mobile phone fast charging protocols; Modifiable resistance to support other batteries; Bidirectional buck-boost function
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Continuous working current: 18A
Overcharge voltage: 4.235V ± 0.025V
Instantaneous current: 30A
Overcharge release voltage: 4.19 ± 0.05V
Charging voltage: 16.8 -17V
Overdischarge voltage: 2.8 ± 0.08V
Charging current: 1-10A
Overdischarge release voltage: 3.0 ± 0.1V
Balanced start-up voltage: 4.19 ± 0.05V The module has the function of two-waybuck-boostand can output a fixed 5v or 20v no matter the battery voltage changes. It should be noted that 100w must have a charging and discharging voltage of 20v. If the 12v output can only reach a maximum current of3a, thatis, 36w.
Note: The product defaults to 4 strings of battery packs, the maximum is 16.8 v, if it is changed to 5 strings or 6 strings of power supply, this voltage regulator transistor may be damaged
Overcharge voltage: 4.235V ± 0.025V
Instantaneous current: 30A
Overcharge release voltage: 4.19 ± 0.05V
Charging voltage: 16.8 -17V
Overdischarge voltage: 2.8 ± 0.08V
Charging current: 1-10A
Overdischarge release voltage: 3.0 ± 0.1V
Balanced start-up voltage: 4.19 ± 0.05V The module has the function of two-waybuck-boostand can output a fixed 5v or 20v no matter the battery voltage changes. It should be noted that 100w must have a charging and discharging voltage of 20v. If the 12v output can only reach a maximum current of3a, thatis, 36w.
Note: The product defaults to 4 strings of battery packs, the maximum is 16.8 v, if it is changed to 5 strings or 6 strings of power supply, this voltage regulator transistor may be damaged
